設備組成 ：
Equipment consists:
|
序號
NO. |
名稱
Name |
數量
Quant. |
備注
remark |
|
1 |
自動放料機/帶動力
Auto-de-coiler |
1 |
液壓內漲式自動放料機 |
|
2 |
校平機
Leveling machine |
1 |
5.5KW變頻電機驅動，生產速度隨機自動改變，以便協調工作
5.5kw frequency change drive motor, speed adjustable |
|
3 |
托料架
Support frame |
3 |
滾筒式
Roller type |
|
4 |
NCF1200伺服送料機
NC1200servo feeder |
1 |
伺服電機驅動
NC1200 Servo motor drive |
|
5 |
沖床
Punching press |
1 |
噸位：400T
400 ton |
|
6 |
沖模
punching mould |
1 |
1 sets |
|
7 |
成型主機
Main bing machine |
1 |
18道次，30KW變頻電機，板材寬1150mm，厚2mm，軋輥材質：Cr 40
18stations,30kw frequency change motor, roll material: Cr 40 |
|
8 |
液壓切斷機
Hydraulic cutting machine |
1 |
|
|
9 |
切斷刀具
Cutting blade |
1 |
一個規格一把刀
one blade per size |
|
10 |
出料臺
Run-out table |
1 |
|
|
11 |
電控制柜
Electric panel |
1 |
PLC控制
PLC control system |
4、 設備結構概述 general structure of equipment
3．1放料機 de-coiler
技術參數：板料寬度：120—1150mm；材料厚度0.8—2mm；
Parameter: b of material: 120—1150mm thickness: 0.8—2mm；
料卷內徑：φ508mm； 內徑漲縮范圍ф480-520 mm；
Inner diameter of coil: φ508mm；inner expansion range: ф480-520 mm；
料卷最大外徑:φ1500mm;承載重量：≤8T
Outer max. diameter: φ1500mm; Max. loading: ≤8T
電機功率：2.2kw變頻控制
Motor power ：2.2kw frequency change control
擴張方式：液壓擴張
Expansion type: hydraulic expansion
壓料方式：氣動壓料
Press material type: pneumatic press material
上料方式：液壓上料車
Loading type: hydraulic trolley to feeding the raw material
放料速度：0-20m/min，可調
Feeding speed: 0-20m/min, adjustable

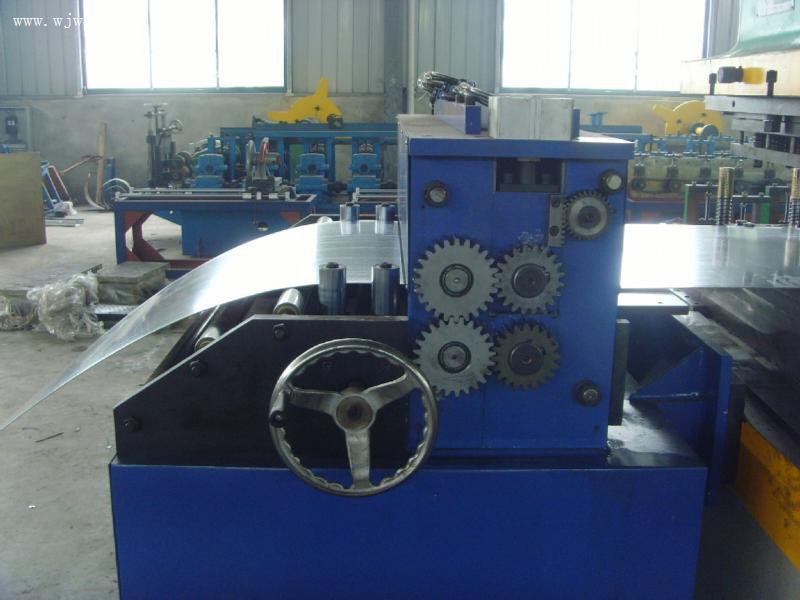

3．2校平機 leveling machine
a.工作輥數：九輥式校平機
working roller: nine rollers type leveling machine
b.結構特點：校平輥經調質、鍍鉻處理后其剛性、表面粗糙度等機械性能大大提高；其由夾送輥及校平輥組成，夾送輥可單獨調整，校平上輥采用整體結構，前后設兩個調整點，可形成一定的傾斜角度，便于提高校平質量。校平機入料端帶有一對導向平輥及兩對導向立輥，導向立輥可對中移動及同時移動。手輪調整，帶刻度，方便對中。
Feature of structure: after the quenching and tempering, chrome-plating processing ,the rigidity , surface roughness of the roller etc. are all enhance greatly; It is composed by the clamping roller and the leveling roller, the clamping roller may the independent control, the leveller has one pair of horizontal guide roller and two pairs of vertical guider roller and easy to adjust by handwheel.
校平機前后均帶有引料過橋裝置。校平機與送料器之間設活光電信號，發出反饋信號入控制系統，控制系統發出指令給變頻電機變速，以控制儲料區中料帶的儲存量，達到不間斷校平的目的。
Between the leveller and the feeding device, there is optical sensor, sends out the feedback signal to the control system, the control system sends out the instruction to the frequency conversion motor to change speed , Achieves the uninterrupted level goal.
