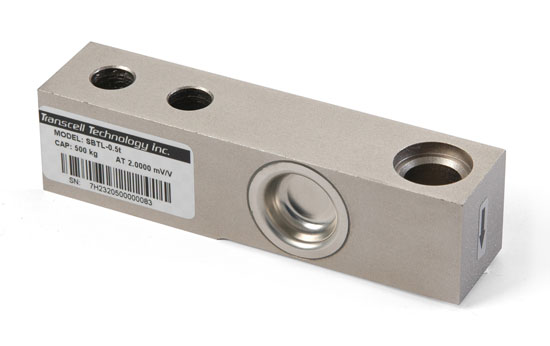

SBTL-0.5T懸臂梁式稱重傳感器SBTL-1T懸臂梁式稱重傳感器SBTL-2T懸臂梁式稱重傳感器
懸臂梁式稱重傳感器;優質合金鋼材質;安裝簡便、快速、穩定可靠;適用于平臺秤、攪拌站和配料秤等
SBTL-0.5T SBTL-1T SBTL-2T
詳情請致電0755-26734156 陳小姐 QQ:1501009049
技術參數：
Rated Output 額定輸出 2.0mV/V±0.1%
Zero Balance 零點平衡 ±1% of rated output
Creep after 30 minutes蠕變 ±0.03% of rated output
Nonlinearity非線性 ±0.03% of rated output
Hysteresis滯后 ±0.03% of rated output
Repeatability重復性 ±0.03% of rated output
Temp. effect on output 靈敏度溫漂 ≤0.002% of applied output/℃
Temp.effect on zero 零點溫漂 ≤0.002% of applied output/℃
Safe Temp. Range 可用溫度范圍 -10 to + 70℃
Temp.Compensated溫度補償范圍 -10 to +50℃
Safe Overload安全載荷 150%
Input Impedance輸入阻抗 387ohm ±5ohm
Output Impedance輸出阻抗 350ohm ±3ohm
Insulation Resistance絕緣阻抗 ≥5000 M ohm (50V DC)
Rated Excitation 推薦激勵電壓 10V DC/AC
Maximum Excitation最大激勵電壓 15V DC/AC
Cable Length導線長度 6m
Cable Color Code導線顏色 Reb(+E)Black(-E)Green(+S)White(-S)
