杜笙(tulsion) MB-106UP超純水拋光樹脂
超純水用拋光樹脂
Tulsion® MB-106 up 為高階核子級拋光樹脂， 是由核子級強酸型陽離子Tulsion® T-46 及核子級強堿型陰離子 Tulsion® Tulsion® A-33 以1:2 體積比的劑量比例 , 預先混合的混床級離子交換樹脂,專門提供給超純水系統拋光用，具有高的交換容量及優越 的物理特性。適合用于電子產業 ，生產半導體及映像管產業，實驗室，激光，高精儀器，醫用行業等需要超純水的行業，以及核電廠等使用。在全球我們有數十家 核電廠使用我們的拋光樹脂。
YPICAL CHARACTERISTICS ---------------------------------------- 基 本 特 性
| TULSION®T-46 (陽) | TULSION®A-33 (陰) |
型式(Type) | 強酸性陽離子交換樹脂 (Strong acid Cation exchange resin) | 強堿性陰離子交換樹脂 (Strong base Anion exchange resin) |
主體結構(Matrix Structure) | 苯乙烯(Cross bed polystyrene) | 苯乙烯(Cross bed polystyrene) |
功能基 (Functional Group) | 硫酸基(Sulfonic acid) | 4級胺(Quaternary ammonium Type I) |
物理性貭(Physical Form) | 球狀顆粒(Moist spherical beads) | 球狀顆粒(Moist spherical beads) |
離子型式(Ionic b supplied) | 氫(Hydrogen) | 氫氧(Hydroxide) |
粒徑范圍(U.S.mesh in wet) | 16 to 50 | 16 to 50 |
粒度范圍 (Particle Size) | 0.3 to 1.2 mm | 0.3 to 1.2 mm |
微粒含量(Fines Content) | 穿過US 50 Mesh小于0.5% (Less than 0.5% passing through 50 U.S.mesh) | 穿過US 50 Mesh小于0.5% (Less than 0.5% passing through 50 U.S.mesh) |
總交換容量 (Total Exch. Capacity) | 1.8 meq/ml minimum of 99% in hydrogen b | 1.0 meq/ml minimum of 90% in hydroxide b and less than 1% in chloride b |
PH范圍 (pH Range) | 0 to 14 | 0 to 14 |
允許溫度 (Temp. Stability) | 120°C | 60°C |
溶解率 (Solubility) | Insoluble in all common solvents | Insoluble in all common solvents |
溶出有機物(Organic leachable) | Less than 0.2 mg KMNO4 per ml of wet resin | Less than 0.2 mg KMNO4 per ml of wet resin |
密度Backwash settled density | Approx.750 gm/liter | Approx.750 gm/liter |
不純物(Impurities) | Fe=50 ppm(max) | Fe=50 ppm(max) |
| Cu=50 ppm(max) | Cu=50 ppm(max) |
| Pb=50 ppm(max) | Pb=50 ppm(max) |
球粒強度(Bead strength) | Avg. not less than 300g/bead by Chatillon test (ASTM Standard) | |
測試（TESTING）： TULSION® MB-106 UP
離子交換樹脂的抽樣和測試是按標準的測試程序，即ASTMD - 2187和IS - 7330，1998.

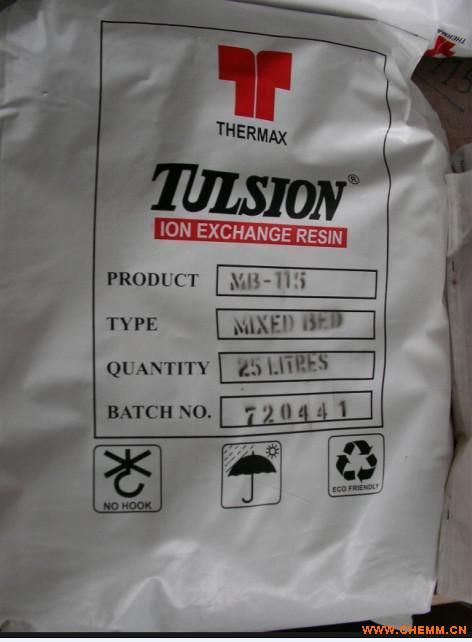

包裝（PACKING）： TULSION® MB-106 UP
Super Sack | 1000 lit | Super Sack | 35 cft |
MS drums | 180 lit. | MS drums | 7 cft |
HDPE lines Bags | 25 lit. | HDPE lines Bags | 1 cft |
