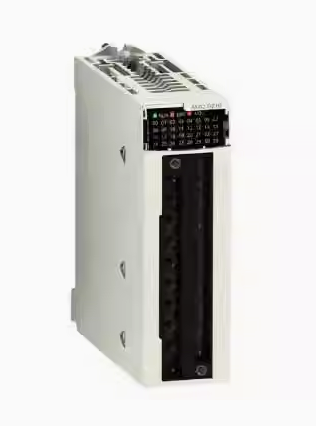

Based on Schneider Electric's documentation for ?Modicon M340/Quantum PLC systems?, ?BMXDD01602? is a ?16-channel digital b module? designed for industrial automation. Below are its detailed technical beters:
?Core Specifications?
|
?Parameter?
|
?Value?
|
|
?Module Type?
|
Digital Input (Sink/Source)
|
|
?Channels?
|
?16 channels? (grouped as 8+8)
|
|
?Input Type?
|
?24V DC? (Sink or Source configurable)
|
|
?Logic Levels?
|
?"1" State:? 13-30V DC｜?"0" State:? 0-5V DC
|
|
?Input Current?
|
?4 mA typical? @ 24V DC
|
|
?Response Time?
|
?1 ms? (filter disabled), ?4 ms? (filter enabled)
|
|
?Isolation?
|
Channel-to-backplane: ?1,500V AC?｜Group-to-group: ?300V AC?
|
?Electrical & Environmental Specs?
|
?Property?
|
?Value?
|
|
?Power Consumption?
|
Backplane: ?80 mA @ 5V?｜Field: ?60 mA @ 24V?
|
|
?Operating Voltage?
|
24V DC (via field terminals)
|
|
?Surge Protection?
|
?35V DC continuous?｜?50V DC transient? (1s max)
|
|
?Operating Temperature?
|
?-25°C to +70°C?
|
|
?Storage Temperature?
|
?-40°C to +85°C?
|
|
?Humidity?
|
5-95% RH (non-condensing)
|
|
?Protection Rating?
|
?IP20? (mount in enclosed cabinet)
|
?Key Features?
-
?Diagnostics?
-
Per-channel LED status (green: active｜red: fault).
-
Short-circuit/overvoltage protection on all bs.
-
?Filtering?
-
Software-configurable noise filter (1/4/8/16 ms).
-
?Wiring?
-
Removable screw terminal block (?TSX CDP 020?).
-
Wire gauge: ?0.2–2.5 mm2? (AWG 24-12).
-
Requires shielded cable (ground shield at PLC end).
?Compatibility & Integration?
|
?Compatible PLCs?
|
Modicon M340 (BMX P34 CPU)｜Quantum (140 CPU 65x/66x)
|
|
?Backplane?
|
Modicon X80 (supports hot-swap with redundant CPUs)
|
|
?Software Configuration?
|
Unity Pro｜EcoStruxure Control Expert
|
|
?Replacements?
|
Obsolete equivalents: ?140 DAI 540 00?
|
?Applications?
-
Machine control (sensors, limit switches).
-
Safety interlock monitoring (e.g., guard doors).
-
Conveyor system status detection.
?Documentation & Ordering?
|
?Resource?
|
?Link/Reference?
|
|
?Manual?
|
BMXDD01602 Datasheet
|
|
?Unity Pro Library?
|
Embedded in v11.0+
|
|
?Terminal Block?
|
Order separaby: ?TSX CDP 020?
|
|
?Certified Distributors?
|
Schneider Electric Direct｜Automation24｜RS Components
|
