七悅科技，專注霍爾，您身邊的霍爾芯片專家！
深圳市七悅科技有限公司，專業從事磁控霍爾開關的研發和銷售。

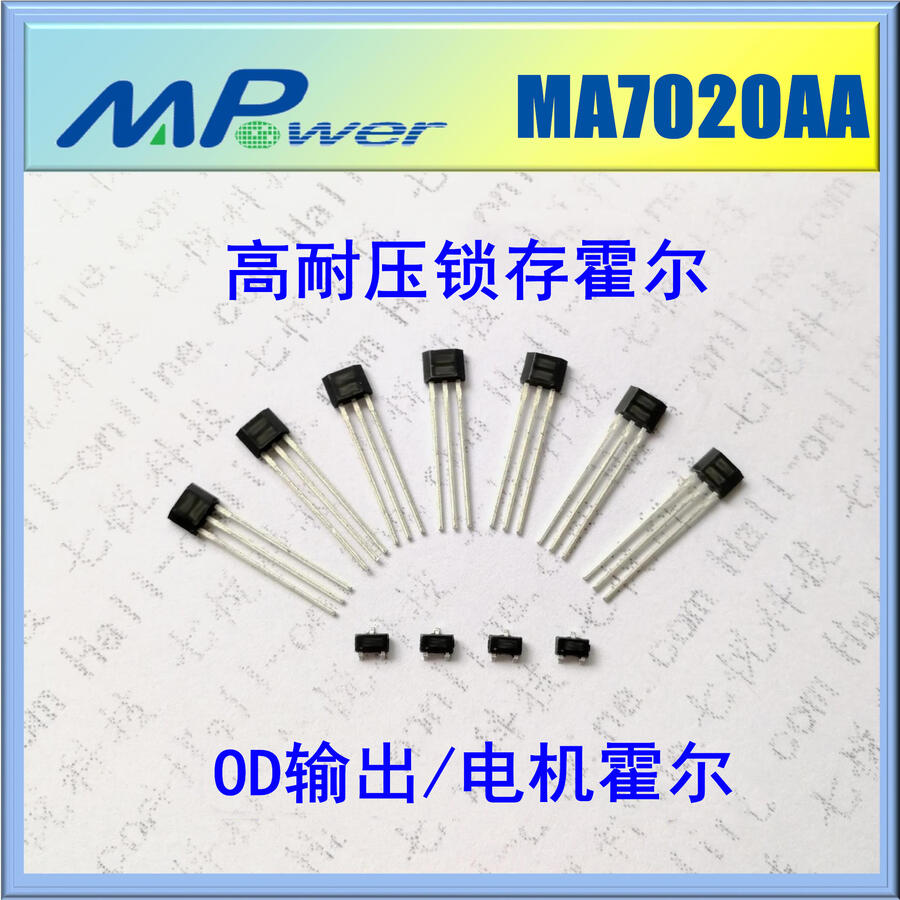

深圳七悅科技為你優選海量完整的七悅霍爾芯片，電機霍爾開關MA7020AA，支持江蘇昆山市在線實時詢價。
MA7020/B屬于高耐壓高溫雙極鎖存霍爾開關，適用于流量計計數，無刷電機換相，筋膜槍，直流風扇電機換相。
GENERAL DESCRIPTION
MA7020/B is an integrated Hall effect latched sensor designed for electronic commutation of b-less DC motor applications. The device is using HV BCD process includes an on-chip
Hall voltage generator for magnetic sensing, a comparator that amplifies the Hall voltage, and a
Schmitt trigger to provide switching hysteresis for noise rejection, and open-collector output. An
internal band-gap regulator is used to provide temperature compensated supply voltage for
internal circuits and allows a wide operating supply range.
If a magnetic flux density larger than threshold Bop, OUT is turned on(low). The output state is held until a magnetic flux density reversal falls below Brp causing OUT to be turned off (high).
FEATURES
- 2.5V to 26V DC operation voltage
- Temperature compensation
- Wide operating voltage range
- Open-Drain pre-driver
- 25mA maximum sinking output current.
- Low Profile TSOT/SOT23-3L and SIP-3L(TO-92S) Package( Green and Lead Free )
深圳市七悅科技有限公司，長期提供霍爾開關，霍爾元件(4條腿)，銻化銦Insb，霍爾IC，霍爾芯片，霍爾傳感器，全極霍爾開關，單極霍爾開關，雙極霍爾開關，鎖存型霍爾開關，無極霍爾開關，微功耗霍爾開關，低功耗霍爾開關，高頻率霍爾開關，高靈敏度霍爾開關，插件霍爾開關，貼片霍爾開關，線性霍爾開關，電機霍爾，測速霍爾，霍爾元器件，霍爾電路，磁控開關。
歡迎來電咨詢詳細功能、參數及代替型號選型，隨時提供技術支持！
