七悅科技，專注霍爾，您身邊的霍爾芯片專家！
深圳市七悅科技有限公司，專業從事磁控霍爾開關的研發和銷售。
深圳七悅科技為你優選海量完整的七悅霍爾開關OCH1660，支持東莞在線實時詢價。
? General Debion

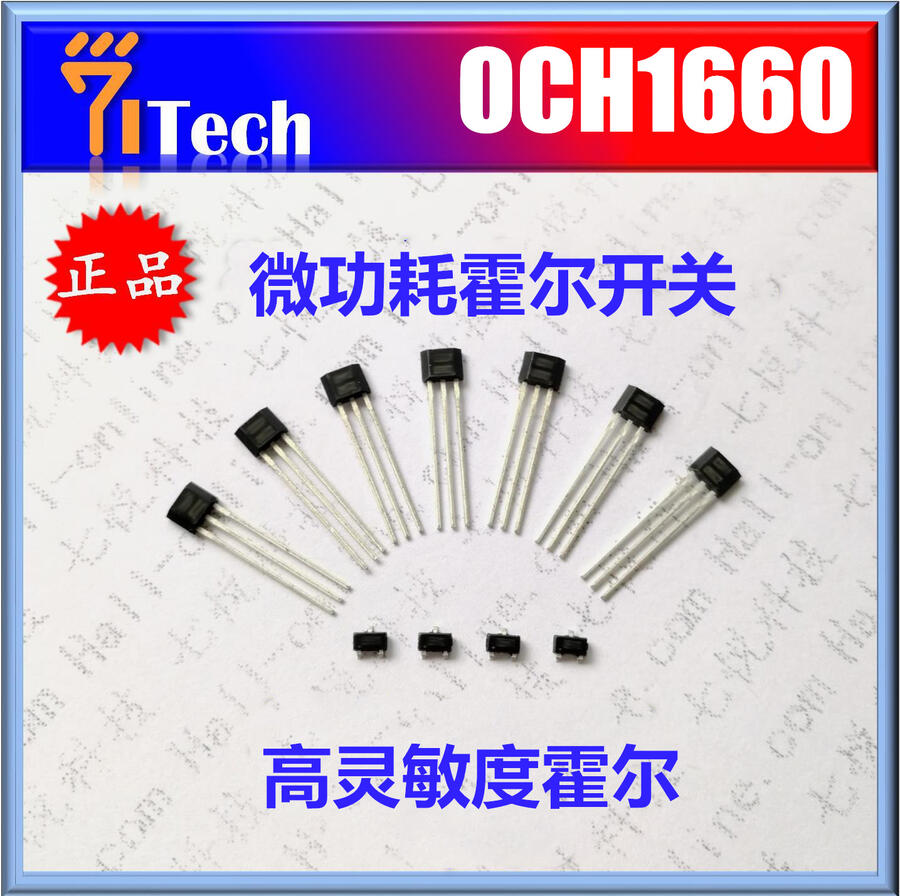

The OCH1660 Omnipolar Hall effect sensor IC is
fabricated from mixed signal CMOS technology. It is
comprised of two Hall plates and a CMOS output driver,
mainly designed for battery-operation. The total power
consumption in normal operation is typically 9μW with a
3V power source. either north or south poles of sufficient
strength will turn the output on. The output will be turned
off under no magnetic field. While the magnetic flux
density (B) is larger than operating point (BOP), the
output will be turned on (low), the output is held until B
is lower than release point (BRP), and then turned off.
The OCH1660 is available in many flexible packaging
options, such as SOT23-3L/SIP-3L. Operating
temperature range of the OCH1660 is from -40°C to
85°C.
深圳市七悅科技有限公司，長期提供全極霍爾開關，單極霍爾開關，雙極鎖存霍爾開關，霍爾元件(4條腿)，銻化銦Insb，霍爾傳感器，線性霍爾，電機霍爾，測速霍爾，霍爾IC，磁控開關。
歡迎來電咨詢詳細功能、參數及代替型號選型，隨時提供技術支持！
