深圳市七悅科技有限公司，專業從事磁控霍爾開關的研發和銷售。
深圳七悅科技為你優選海量完整的玩具霍爾開關OCH1608，支持在線實時詢價。
? General Debion
The OCH1608 Omnipolar Hall effect sensor IC is fabricated from mixed signal CMOS technology. It is comprised of two Hall plates and a CMOS output driver, mainly designed for battery-operation. The total power consumption in normal operation is typically 2.4μW with
a 3V power source. either north or south poles of sufficient strength will turn the output on. The output will be turned off under no magnetic field. While the magnetic flux density (B) is larger than operating point (BOP), the output will be turned on (low), the output is held until B is lower than release point (BRP), and then turned off.
The OCH1608 is available in many flexible packaging options, such as SOT23-3L/SIP-3L. Operating temperature range of the OCH1608 is from -40°C to 85°C.
貼片封裝如圖:

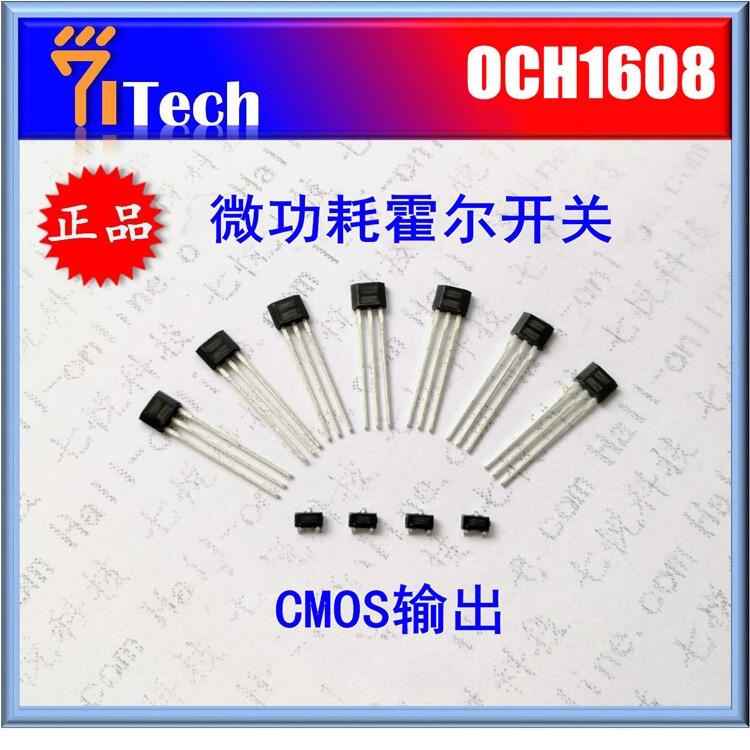

插件封裝如圖:
深圳市七悅科技有限公司，長期提供全極霍爾開關，單極霍爾開關，雙極鎖存霍爾開關，霍爾元件(4條腿)，銻化銦Insb，霍爾傳感器，線性霍爾，電機霍爾，測速霍爾，霍爾IC，磁控開關。
歡迎來電咨詢?cè)敿?xì)功能、參數及代替型號選型，隨時提供技術支持！
