N5173B

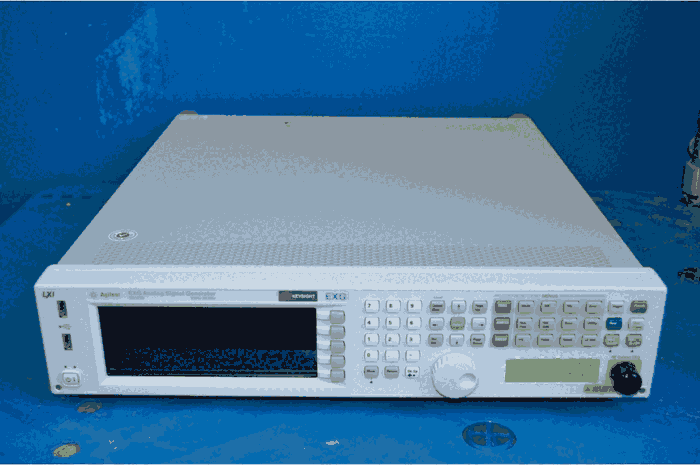

N5173B EXG X-Series Microwave Analog Signal Generator, up to 40 GHz
主要特性與技術(shù)指標
Signal characteristics
9 kHz to 13, 20, 31.8 or 40 GHz
+20 dBm output power at 20 GHz
-101 dBc/Hz phase noise at 10 GHz and 20 kHz offset
High stability OCXO < ±5 x 10-10 per day
Modulation and sweep
AM, FM, ?M and narrow pulse
Pulse train generator
10 MHz multifunction generator and LF out
Digital step and list sweep modes with <600 μs switching speed
Automation and communication interface
1000BaseT LAN, LXI, USB 2.0, and GPIB
SCPI, IVI-COM, MATLAB drivers
Backward compatible with all ESG, MXG, PSG and 8648x signal generators
Agilent USB power sensor compatible with bded display and SCPI control
描述
The cost-effective EXG
When you need to balance budget and perbance the EXG is the best choice. It provides the essential signals that address betric testing of components and receivers.
Maximize budget and perbance with outstanding hardware
Confidently test components with excellent level accuracy and repeatability
Compensate for test system losses with best-in-class output power
Maximize throughput with fast switching speed
Shrink your test stand with two rack-unit height
Get the perbance and capabilities you need today and easily upgrade later
Maximize resources with low cost of ownership
Increase uptime with high mean time between failures (MTBF) based on first-generation MXG track record
Minimize downtime and expenses with self-maintenance strategy and low-cost repairs
Standard 3-year calibration cycle and warranty
