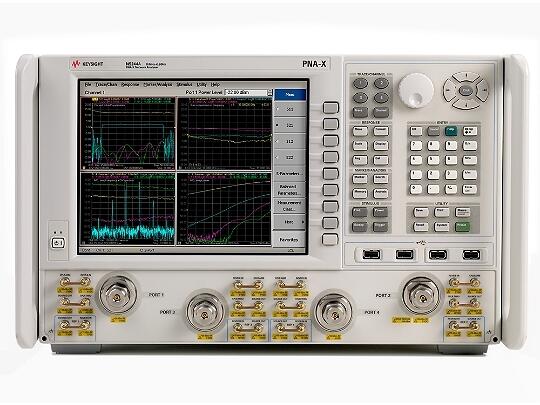

N5244A
產品介紹
Agilent N5244A PNA-X微波網絡分析儀在 10 Hz IFBW 時僅有 -111 dBm 的低本底噪聲
全球廣泛的單次連接測量應用軟件
AgilentN5244A PNA-X微波網絡分析儀是全球功能、靈活的單次連接微波測試引擎，
可測量放大器、混頻器和頻率轉換器等有源器件。目前它提供以下五種頻率型號供您選擇：
13.5、26.5、43.5、50 和 67 GHz，可滿足您特定的器件測試需求。PNA-X 具有內置的第
二個信號源、合路器和內部信號路由開關，能夠提供的可配置性。
安捷倫 N5244A PNA-X微波網絡分析儀應用軟件包括：
?S 參數（連續波和脈沖）
? 噪聲系數
? 增益壓縮
? 互調和諧波失真
? 轉換增益/損耗
? 真正差分激勵
? 毫米波
? 非線性波形和 X 參數? 表征
? 天線測試
取代機架和堆疊
Agilent N5244A PNA-X微波網絡分析儀可以取代機架安裝式和堆疊式設備，減少您需要使用的設備數量
|
是德Agilent N5244A 微波網絡分析儀 主要特性與技術指標10 MHz 到 43.5 GHz2 端口或 4 端口，具有兩個內置信號源126 dB 系統動態范圍和 129 dB 接收機動態范圍、32,001 點、32 通道、5 MHz IF 帶寬高輸出功率（+16 dBm）、低諧波（-60 dBc）和寬功率掃描范圍（41 dB）佳動態精度――在接收機端使用 0.1 dB 壓縮和 +15 dBm 輸入功率在 10 Hz IFBW 時僅有 -111 dBm 的低本底噪聲 描述全球廣泛的單次連接測量應用軟件PNA-X 網絡分析儀是全球功能全、靈活的單次連接微波測試引擎，可測量放大器、混頻器和頻率轉換器等有源器件。目前它提供以下五種頻率型號供您選擇：13.5、26.5、43.5、50 和 67 GHz，可滿足您特定的器件測試需求。PNA-X 具有內置的第二個信號源、合路器和內部信號路由開關，能夠提供的可配置性。取代機架和堆疊PNA-X 可以取代機架安裝式和堆疊式設備，減少您需要使用的設備數量。 應用軟件包括：S 參數（連續波和脈沖）噪聲系數增益壓縮互調和諧波失真轉換增益/損耗真正差分激勵毫米波非線性波形和 X 參數? 表征天線測試 N5244A-008 Pulsed-RF MeasurementsN5244A-010 Time-domain measurementsN5244A-020 Add IF bsN5244A-021 Add pulse modulator to internal first sourceN5244A-022 Add pulse modulator to internal second sourceN5244A-025 Add four internal pulse generatorsN5244A-028 Noise figure measurements using standard receiversN5244A-029 Fully-Corrected Noise-Figure Measurements to 50 GHzN5244A-080 Frequency offset measurementsN5244A-082 Scalar calibrated converter measurementsN5244A-083 Vector and scalar calibrated converter measurementsN5244A-084 Embedded LO measurementsN5244A-086 Gain compression measurementsN5244A-087 Intermodulation distortion measurementsN5244A-088 Source phase controlN5244A-118 Fast CW modeN5244A-1A7 Calibration + Uncertainties + GuardbandingN5244A-1CM Rack mount kit for installation without handlesN5244A-1CP Rack mount kit for installation with handlesN5244A-200 2 ports, single sourceN5244A-219 Add extended power range and bias-tees to 2 port analyzerN5244A-224 Add internal second source, combiner and mechanical switches to 2-port analyzerN5244A-301 Application for use with standard CalPodsN5244A-302 Application for use with temperature-characterized CalPodsN5244A-400 4 ports, dual sourceN5244A-419 Add extended power range and bias-tees to 4 port analyzerN5244A-423 Add internal combiner and mechanical switches to 4-port analyzerN5244A-460 Integrated true-mode stimulus applicationN5244A-510 Nonlinear component characterization, full frequency rangeN5244A-514 Nonlinear x-betersN5244A-518 Nonlinear pulse envelope domainN5244A-520 Arbitrary load impedance X-betersN5244A-551 N-port calibrated measurementsN5244A-897 Built-in perbance test software for inclusive calibration, perpetual licenseN5244A-898 Built-in perbance test software for standards compliant calibration, perpetual licenseN5244A-A6J ANSI Z540-1-1994 CalibrationN5244A-H08 Pulsed - RF measurementsN5244A-UK6 Commercial calibration certificate with test dataN1966A Pulse/IO AdapterN6171A MATLAB SoftwareN6171A-M01 MATLAB-Basic Package, individual license - node-lockedN6171A-M02 MATLAB-Standard Package, individual license - node-lockedN6171A-M03 MATLAB-Advanced Package, individual license - node-locked |
