電機編號（防爆型）

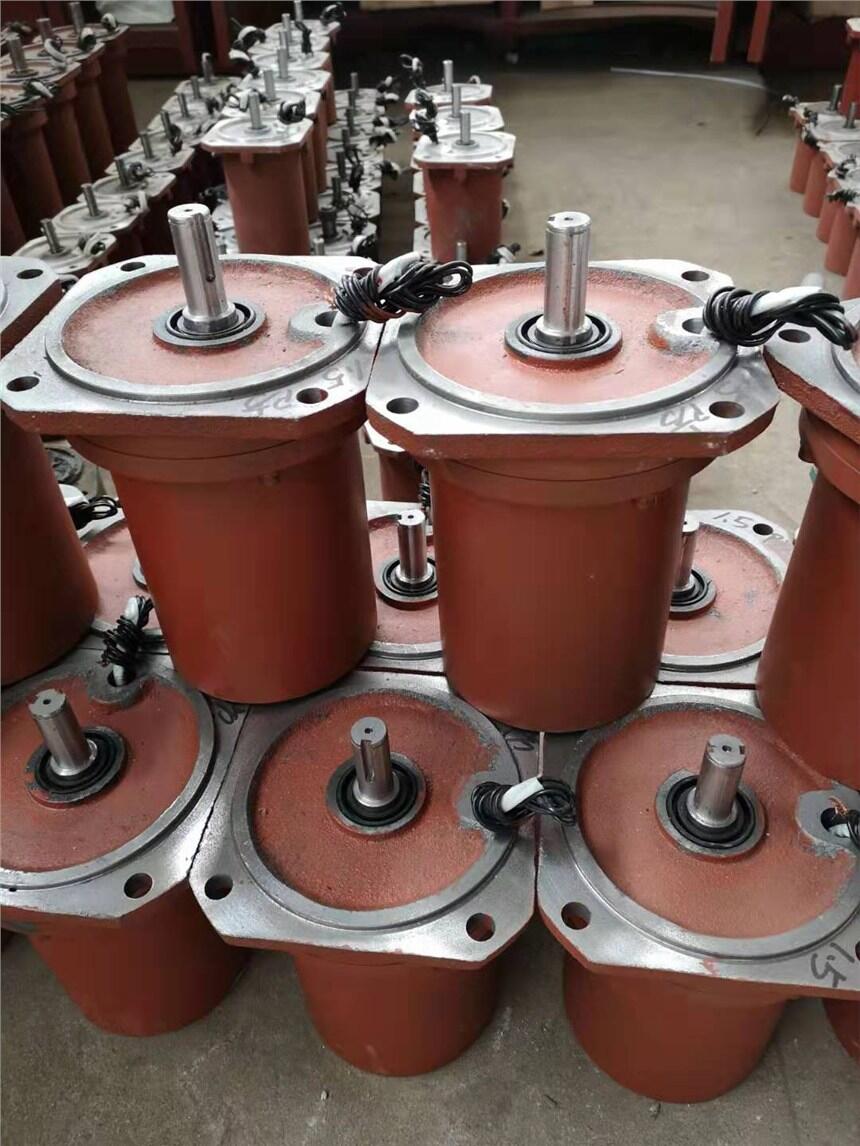

揚州廠家直銷國標YDF、YBDF系列閥門電機又稱YDF閥門電機、YDFW閥門電機、YDF2三相異步電機、YDF-WF閥門電機、YBDF2-WF閥門防爆電機。
序號型號電機功率電流噪音凈重
1 YBDF -322-4 3 KW 10 A 75 dB(A) 34 kg
2 YBDF -321-4 2.2 KW 6.5 A 75 dB(A) 29 kg
3 YBDF -312-4 1.5 KW 4.5 A 75 dB(A) 29 kg
4 YBDF- 311-4 1.1 KW 3.4 A 75 dB(A) 20 kg
5 YBDF -223-4 0.75 KW 2.8 A 70 dB(A) 13 kg
6 YBDF -222-4 0.55 KW 2.2 A 70 dB(A) 11 kg
7 YBDF- 221-4 0.37 KW 1.8 A 70 dB(A) 10 kg
8 YBDF- 212-4 0.25 KW 1.5 A 70 dB(A) 9 kg
9 YBDF-211-4 0.18 KW 0.95 A 70 dB(A) 8 kg
10 YBDF -112-4 0.12 KW 1.2 A 70 dB(A) 8 kg
11 YBDF -111-4 0.09 KW A 70 dB(A) kg
YBDF2防爆閥門電機型號：YBDF2-111-4、YBDF2-112-4、YBDF2-121-4、YBDF2-122-4，YBDF2-211-4，YBDF2-212-4，YBDF2-221-4，YBDF2-222-4，YBDF2-231-4，YBDF2-223-4，YBDF2-232-4，YBDF2-311-4，YBDF2-312-4，YBDF2-321-4，YBDF2-322-4，YBDF2-411-4，YBDF2-412-4，YBDF2-421-4，YBDF2-422-4，YBDF2-431-4。
YBDF-WF防爆閥門電機型號：YBDF-WF-111-4、YBDF-WF-112-4、YBDF-WF-121-4、YBDF-WF-122-4，YBDF-WF-211-4、YBDF-WF-212-4，YBDF-WF-221-4，YBDF-WF-222-4，YBDF-WF-223-4， YBDF-WF-231-4，YBDF-WF-232-4，YBDF-WF-311-4，YBDF-WF-312-4，YBDF-WF-321-4，YBDF-WF-322-4，YBDF-WF-411-4，YBDF-WF-412-4，YBDF-WF-421-4，YBDF-WF-422-4
YDF-WF-112-4-0.12KYDF-WF-211-4-0.18KW,YDF-WF-212-4-0.25KW,YDF-WF-221-4-0.37KW,YDF-WF-222-4-0.55KW,YDF-WF-231-4-0.75KW,YDF-WF-311-4-1.1KW,YDF-WF-312-4-1.5KW,YDF-WF-321-4-2.2KW,YDF-WF-322-4-3KW,YDF-WF-411-4-4KW,YDF-WF-421-4-5.5KW,YDF-WF-422-4-7.5KW,YDF-WF-431-4-11KW
其中0.18KW以下采用鋁制機座，0.18 KW及以上采用鑄鐵機座。
