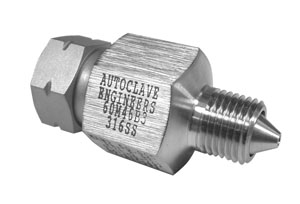

Autoclave高壓接頭規格

• 最大工作壓力：150,000 psi (103432bar)
• 工作溫度范圍：-423°F (-252°C) 到1200°F (649°C)
• 連接尺寸：1/16”到1”
• 材質：316SS




  Item #	Male End Fits this Connection	Female End	A - Hex	B - Length
  6M24C2	W125	SW250	0.63 Inch 15.9 mm	1.29 Inch 32.1 mm
  6M26C2	W125	SW375	0.75 Inch 19.1 mm	1.41 Inch 35.8 mm
  4M28C2	W125	SW500	1 Inch 25.4 mm	1.53 Inch 38.8 mm
  6M24C6	W125	SF250CX	0.63 Inch 15.9 mm	1.41 Inch 35.8 mm
  6M26C6	W125	SF375CX	0.75 Inch 19.1 mm	1.41 Inch 35.8 mm
  6M29C6	W125	SF562CX	1 Inch 25.4 mm	1.66 Inch 42.1 mm
  6M24C3	W125	F250C	0.75 Inch 19.1 mm	1.16 Inch 29.5 mm
  6M26C3	W125	F375C	1 Inch 25.4 mm	1.34 Inch 34.1 mm
  6M29C3	W125	F562C	1.38 Inch 35.1 mm	1.59 Inch 40.5 mm
  15M22C8	W125	1/8 NPT	0.63 Inch 15.9 mm	1.25 Inch 31.8 mm
  15M24C8	W125	1/4 NPT	0.75 Inch 19.1 mm	1.47 Inch 37.3 mm
  15M26C8	W125	3/8 NPT	1 Inch 25.4 mm	1.53 Inch 38.8 mm
  15M28C8	W125	1/2 NPT	1.18 Inch 30.1 mm	1.81 Inch 46 mm
  15M224C6	W125	SF1500CX	2.25 Inch 57.15 mm	3.41 Inch 86.54 mm
  6M42D1	SW250	W125	0.63 Inch 15.9 mm	1.08 Inch 27.4 mm
  6M46D2	SW250	SW375	0.75 Inch 19.1 mm	1.64 Inch 41.7 mm
  4M48D2	SW250	SW500	1 Inch 25.4 mm	1.77 Inch 44.9 mm
  6M44D6	SW250	SF250CX	0.63 Inch 15.9 mm	1.52 Inch 38.5 mm
  6M46D6	SW250	SF375CX	0.75 Inch 19.1 mm	1.77 Inch 44.9 mm
  6M49D6	SW250	SF562CX	1 Inch 25.4 mm	1.89 Inch 48.0 mm
  6M412D6	SW250	SF750CX	1.38 Inch 35.1 mm	2.27 Inch 57.7 mm
  6M44D3	SW250	F250C	0.75 Inch 19.1 mm	1.27 Inch 32.2 mm
  6M46D3	SW250	F375C	1 Inch 25.4 mm	1.70 Inch 43.3 mm
  6M49D3	SW250	F562C	1.38 Inch 35.1 mm	1.77 Inch 44.9 mm
  15M42D8	SW250	1/8 NPT	0.63 Inch 15.9 mm	1.39 Inch 35.3 mm
  15M44D8	SW250	1/4 NPT	0.75 Inch 19.1 mm	1.64 Inch 41.7 mm
  15M46D8	SW250	3/8 NPT	1 Inch 25.4 mm	1.70 Inch 43.3 mm
  15M48D8	SW250	1/2 NPT	1.18 Inch 30.1 mm	1.95 Inch 49.6 mm
  10M412D8	SW250	3/4 NPT	1.38 Inch 35.1 mm	2.21 Inch 56.0 mm
  6M62D1	SW375	W125	0.75 Inch 19.1 mm	1.16 Inch 29.4 mm
  6M64D2	SW375	SW250	0.75 Inch 19.1 mm	1.41 Inch 35.7 mm
  4M68D2	SW375	SW500	1 Inch 25.4 mm	1.78 Inch 45.3 mm
  6M64D6	SW375	SF250CX	0.75 Inch 19.1 mm	1.41 Inch 35.9 mm
  6M66D6	SW375	SF375CX	0.75 Inch 19.1 mm	1.59 Inch 40.4 mm
  6M69D6	SW375	SF562CX	1 Inch 25.4 mm	1.72 Inch 43.7 mm
  6M612D6	SW375	SF750CX	1.38 Inch 35.1 mm	2.28 Inch 57.9 mm
  6M616D6	SW375	SF1000CX	1.75 Inch 44.50 mm	2.78 Inch 70.7 mm
  6M64D3	SW375	F250C	0.75 Inch 19.1 mm	1.41 Inch 35.7 mm
  6M66D3	SW375	F375C	1 Inch 25.4 mm	1.66 Inch 42.2 mm
  6M69D3	SW375	F562C	1.38 Inch 35.1 mm	1.78 Inch 45.3 mm
  15M62D8	SW375	1/8 NPT	0.75 Inch 19.1 mm	1.41 Inch 35.7 mm
  15M64D8	SW375	1/4 NPT	0.75 Inch 19.1 mm	1.66 Inch 42.2 mm
  15M66D8	SW375	3/8 NPT	1 Inch 25.4 mm	1.78 Inch 45.3 mm
  15M68D8	SW375	1/2 NPT	1.18 Inch 30.1 mm	1.97 Inch 50.0 mm
  10M612D8	SW375	3/4 NPT	1.38 Inch 35.1 mm	2.28 Inch 57.9 mm
  10M616D8	SW375	1 NPT	1.75 Inch 44.50 mm	2.78 Inch 70.7 mm
  15M624D6	SW375	SF1500CX	2.25 Inch 57.15 mm	3.53 Inch 89.71 mm
  4M82D1	SW500	W125	0.94 Inch 23.80 mm	1.22 Inch 31.0 mm
  4M84D2	SW500	SW250	0.94 Inch 23.80 mm	1.34 Inch 34.1 mm
  4M86D2	SW500	SW375	0.94 Inch 23.80 mm	1.47 Inch 37.3 mm
  4M84D6	SW500	SF250CX	1 Inch 25.4 mm	1.59 Inch 40.5 mm
  4M86D6	SW500	SF375CX	1 Inch 25.4 mm	1.59 Inch 40.5 mm
  4M89D6	SW500	SF562CX	1 Inch 25.4 mm	1.66 Inch 42.2 mm
  4M812D6	SW500	SF750CX	1.38 Inch 35.1 mm	2.09 Inch 53.2 mm
  4M816D6	SW500	SF1000CX	1.75 Inch 44.50 mm	2.72 Inch 69.0 mm
  4M84D3	SW500	F250C	0.94 Inch 23.80 mm	1.41 Inch 35.7 mm
  4M86D3	SW500	F375C	1 Inch 25.4 mm	1.59 Inch 40.5 mm
  4M89D3	SW500	F562C	1.38 Inch 35.1 mm	1.72 Inch 43.7 mm
  10M82D8	SW500	1/8 NPT	1 Inch 25.4 mm	1.34 Inch 34.1 mm
  10M84D8	SW500	1/4 NPT	1 Inch 25.4 mm	1.47 Inch 37.3 mm
  10M86D8	SW500	3/8 NPT	1 Inch 25.4 mm	1.72 Inch 43.7 mm
  10M88D8	SW500	1/2 NPT	1.18 Inch 30.1 mm	2.16 Inch 54.7 mm
  10M812D8	SW500	3/4 NPT	1.38 Inch 35.1 mm	2.22 Inch 56.3 mm
  10M816D8	SW500	1 NPT	1.75 Inch 44.50 mm	2.47 Inch 62.7 mm




















































































































  Autocalve Engineers 公司是以生產世界領先的高壓閥、接頭和管子而著名。壓力可以從 0到150,000 psi (10342 bar)，溫度從-423°F (-252°C) 到1200°F (649°C)。 沒有別的工廠能比Autoclave Engineers 在高壓要求方面做的更好，也沒有別的工廠能比Autoclave Engineers做的系統更可靠、更具有創新的特性。



  Autoclave產品包括：高壓針閥、高壓球閥、安全閥、儀表閥、特制的閥和閥組、接頭、管子、壓力表、熱電偶、氣動執行器。



  應用領域:海上油井.石油化工及航天領域.



  北京海德利森科技有限公司是美國AE(Autoclave Engineers)公司中國總代理，擁有Autoclave 閥門管件等產品大量的庫存，為客戶提供持續的供貨，是國內眾多著名廠商的長期供貨商。海德利森為全球客戶提供優質的產品及服務。



  更多Autoclave信息歡迎您來電咨詢北京海德利森科技有限公司！
