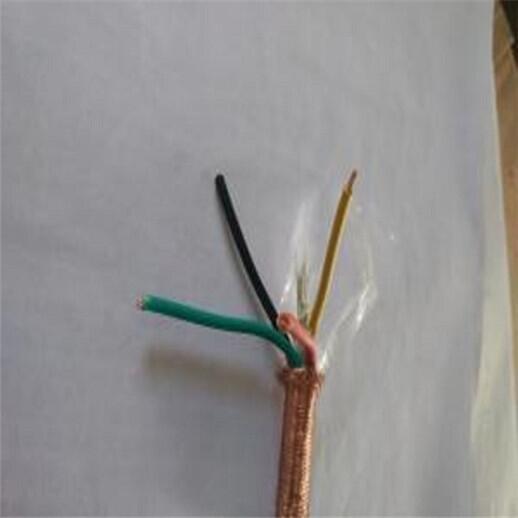

KJCPR-3*4雙屏蔽抗干擾柔性控制電纜
技術參數
KVV 型450/750V 銅芯聚氯乙烯絕緣聚氯乙烯護套控制電纜的綜合數據
芯線X 標稱 截面（mm2）
導體結構(NO.mm）
絕緣厚度 規定值
護套厚度 規定值
單根導體電纜外形尺寸
多支絞合導體電纜外形尺寸
20℃時導體 電阻 最大值(Ω/KM)
70℃時絕緣 電阻 最小值 (MΩ/KM)
下限
上限
下限
上限
KVV2X0.75
1/0.97
0.6
1.2
6.7
8.1
6.9
8.4
24.5
0.012
7/0.37
24.5
0.014
KVV2X1.0
1/1.13
0.6
1.2
7
8.5
7.2
8.7
18.1
0.011
7/0.43
18.1
0.013
KVV2X1.5
1/1.38
0.7
1.2
7.9
9.5
8.1
9.7
12.1
0.011
7/0.52
12.1
0.01
KVV2X2.5
1/1.78
0.8
1.2
9
10.9
9.2
11.1
7.41
0.01
7/0.68
7.41
0.009
KVV2X4
1/2.25
0.8
1.2
9.9
11.9
10.2
12.3
4.61
0.0085
7/0.85
4.61
0.0077
KVV2X6
1/2.76
0.8
1.2
10.8
13.1
11.2
13.6
3.08
0.007
7/1.04
3.08
0.0065
KVV2X10
7/1.33
1
1.2
/
/
14.3
17.3
1.83
0.0065
KVV3X0.75
1/0.97
0.6
1.2
7.1
8.5
7.3
8.8
24.5
0.012
7/0.37
24.5
0.014
KVV3X1.0
1/1.13
0.6
1.2
7.4
8.9
7.6
9.1
18.1
0.011
7/0.43
18.1
0.013
KVV3X1.5
1/1.38
0.7
1.2
8.3
10
8.5
10.3
12.1
0.011
7/0.52
12.1
0.01
KVV3X2.5
1/1.78
0.8
1.2
9.5
11.5
9.7
11.8
7.41
0.01
7/0.68
7.41
0.009
KVV3X4
1/2.25
0.8
1.2
10.5
12.7
10.8
13
4.61
0.0085
7/0.85
4.61
0.0077
KVV3X6
1/2.76
0.8
1.5
11.5
13.9
11.9
14.4
3.08
0.007
7/1.04
3.08
0.0065
KVV3X10
7/1.33
1
1.5
/
/
15.2
18.4
1.83
0.0065
KVV4X0.75
1/0.97
0.6
1.2
7.6
9.2
7.8
9.4
24.5
0.012
7/0.37
24.5
0.014
KVV4X1.0
1/1.13
0.6
1.2
7.9
9.6
8.2
9.9
18.1
0.011
7/0.43
18.1
0.013
KVV4X1.5
1/1.38
0.7
1.2
9
10.9
9.2
11.1
12.1
0.011
7/0.52
12.1
0.01
KVV4X2.5
1/1.78
0.8
1.2
10.4
12.5
10.6
12.8
7.41
0.01
7/0.68
7.41
0.009
KVV4X4
1/2.25
0.8
1.5
11.4
13.8
11.8
14.2
4.61
0.0085
7/0.85
4.61
0.0077
KVV4X6
1/2.76
0.8
1.5
13.2
15.9
13.6
16.5
3.08
0.007
7/1.04
3.08
0.0065
KVV4X10
7/1.33
1
1.5
/
/
16.6
20.1
1.83
0.0065
KVV5X0.75
1/0.97
0.6
1.2
8.2
9.9
8.4
10.2
24.5
0.012
7/0.37
24.5
0.014
KVV5X1.0
1/1.13
0.6
1.2
8.6
10.3
8.8
10.6
18.1
0.011
7/0.43
18.1
0.013
KVV5X1.5
1/1.38
0.7
1.2
9.7
11.7
10
12.1
12.1
0.011
7/0.52
12.1
0.01
KVV5X2.5
1/1.78
0.8
1.5
11.3
13.6
11.5
13.9
7.41
0.01
7/0.68
7.41
0.009
KVV5X4
1/2.25
0.8
1.5
13
15.7
13.4
16.2
4.61
0.0085
7/0.85
4.61
0.0077
KVV5X6
1/2.76
0.8
1.5
14.3
17.3
14.8
17.9
3.08
0.007
7/1.04
3.08
0.0065
KVV5X10
7/1.33
1
1.7
/
/
18.2
22
1.83
0.0065
KVV7X0.75
1/0.97
0.6
1.2
8.8
10.6
9.1
11
24.5
0.012
7/0.37
24.5
0.014
KVV7X1.0
1/1.13
0.6
1.2
9.2
11.1
9.5
11.5
18.1
0.011
7/0.43
18.1
0.013
KVV7X1.5
1/1.38
0.7
1.2
10.5
12.7
10.8
13.1
12.1
0.011
7/0.52
12.1
0.01
KVV7X2.5
1/1.78
0.8
1.5
12.8
15.5
13.1
15.8
7.41
0.01
7/0.68
7.41
0.009
KVV7X4
1/2.25
0.8
1.5
14.1
17.1
14.5
17.6
4.61
0.0085
7/0.85
4.61
0.0077
KVV7X6
1/2.76
0.8
1.5
15.6
18.8
16.1
19.5
3.08
0.007
7/1.04
3.08
0.0065
KVV7X10
7/1.33
1
1.7
/
/
20.3
24.5
1.83
0.0065
KVV8X0.75
1/0.97
0.6
1.2
9.7
11.7
10
12.1
24.5
0.012
7/0.37
24.5
0.014
KVV8X1.0
1/1.13
0.6
1.2
10.2
12.3
10.5
12.7
18.1
0.011
7/0.43
18.1
0.013
KVV8X1.5
1/1.38
0.7
1.5
11.7
14.1
12.6
15.2
12.1
0.011
7/0.52
12.1
0.01
KVV8X2.5
1/1.78
0.8
1.5
14.3
17.2
14.6
17.6
7.41
0.01
7/0.68
7.41
0.009
KVV8X4
1/2.25
0.8
1.5
15.8
19
16.3
19.6
4.61
0.0085
7/0.85
4.61
0.0077
KVV8X6
1/2.76
0.8
1.7
17.4
21
18.1
21.8
3.08
0.007
7/1.04
3.08
0.0065
KVV8X10
7/1.33
1
1.7
/
/
22.8
27.5
1.83
0.0065
KVV10X0.75
1/0.97
0.6
1.2
10.8
13.1
11.2
13.6
24.5
0.012
7/0.37
24.5
0.014
KVV10X1.0
1/1.13
0.6
1.5
11.4
13.8
11.8
14.3
18.1
0.011
7/0.43
18.1
0.013
KVV10X1.5
1/1.38
0.7
1.5
13.7
16.6
14.1
17.1
12.1
0.011
7/0.52
12.1
0.01
KVV10X2.5
1/1.78
0.8
1.5
16
19.4
16.4
19.8
7.41
0.01
7/0.68
7.41
0.009
KVV10X4
1/2.25
0.8
1.7
17.8
21.5
18.7
22.6
4.61
0.0085
7/0.85
4.61
0.0077
KVV10X6
1/2.76
0.8
1.7
20.1
24.2
20.8
25.2
3.08
0.007
7/1.04
3.08
0.0065
KVV10X10
7/1.33
1
1.5
/
/
25.8
31.2
1.83
0.0065
KVV12X0.75
1/0.97
0.6
1.5
11.2
13.5
11.6
14
24.5
0.012
7/0.37
24.5
0.014
KVV12X1.0
1/1.13
0.6
1.5
11.8
14.2
12.8
15.4
18.1
0.011
7/0.43
18.1
0.013
KVV12X1.5
1/1.38
0.7
1.5
14.2
17.1
14.5
17.6
12.1
0.011
7/0.52
12.1
0.01
KVV12X2.5
1/1.78
0.8
1.7
16.5
20
16.9
20.5
7.41
0.01
7/0.68
7.41
0.009
KVV12X4
1/2.25
0.8
1.7
18.7
22.6
19.3
23.4
4.61
0.0085
7/0.85
4.61
0.0077
KVV12X6
1/2.76
0.8
1.7
20.7
25
21.5
26
3.08
0.007
7/1.04
3.08
0.0065
KVV14X0.75
1/0.97
0.6
1.5
11.7
14.1
12.7
15.3
24.5
0.012
7/0.37
24.5
0.014
KVV14X1.0
1/1.13
0.6
1.5
12.9
15.6
13.3
16.1
18.1
0.011
7/0.43
18.1
0.013
KVV14X1.5
1/1.38
0.7
1.5
14.8
17.9
15.2
18.4
12.1
0.011
7/0.52
12.1
0.01
KVV14X2.5
1/1.78
0.8
1.5
17.4
21
17.8
21.5
7.41
0.01
7/0.68
7.41
0.009
KVV14X4
1/2.25
0.8
1.7
19.6
23.7
20.3
24.5
4.61
0.0085
7/0.85
4.61
0.0077
KVV14X6
1/2.76
0.8
1.7
21.8
26.3
22.6
27.3
3.08
0.007
7/1.04
3.08
0.0065
KVV16X0.75
1/0.97
0.6
1.5
12.9
15.5
13.3
16.1
24.5
0.012
7/0.37
24.5
0.014
KVV16X1.0
1/1.13
0.6
1.5
13.5
16.4
14
16.9
18.1
0.011
7/0.43
18.1
0.013
KVV16X1.5
1/1.38
0.7
1.5
15.6
18.8
16
19.4
12.1
0.011
7/0.52
12.1
0.01
KVV16X2.5
1/1.78
0.8
1.7
18.3
22.1
19.1
23.1
7.41
0.01
7/0.68
7.41
0.009
KVV19X0.75
1/0.97
0.6
1.5
13.5
16.3
14
16.9
24.5
0.012
7/0.37
24.5
0.014
KVV19X1.0
1/1.13
0.6
1.5
14.2
17.2
14.7
17.7
18.1
0.011
7/0.43
18.1
0.013
KVV19X1.5
1/1.38
0.7
1.5
16.4
19.8
16.8
20.4
12.1
0.011
7/0.52
12.1
0.01
KVV19X2.5
1/1.78
0.8
1.7
19.6
23.7
23.4
28.3
7.41
0.01
7/0.68
7.41
0.009
KVV24X0.75
1/0.97
0.6
1.5
15.6
18.8
16.1
19.6
24.5
0.012
7/0.37
24.5
0.014
KVV24X1.0
1/1.13
0.6
1.5
16.4
19.8
17
20.5
18.1
0.011
7/0.43
18.1
0.013
KVV24X1.5
1/1.38
0.7
1.7
19.4
23.4
20
24.1
12.1
0.011
7/0.52
12.1
0.01
KVV24X2.5
1/1.78
0.8
1.7
22.8
27.6
23.4
28.3
7.41
0.01
7/0.68
7.41
0.009
KVV27X0.75
1/0.97
0.6
1.5
15.9
19.2
16.5
19.9
24.5
0.012
7/0.37
24.5
0.014
KVV27X1.0
1/1.13
0.6
1.5
16.7
20.2
17.3
20.9
18.1
0.011
7/0.43
18.1
0.013
KVV27X1.5
1/1.38
0.7
1.7
19.8
23.9
20.4
24.6
12.1
0.011
7/0.52
12.1
0.01
KVV27X2.5
1/1.78
0.8
1.7
23.3
28.2
23.9
28.9
7.41
0.01
7/0.68
7.41
0.009
KVV30X0.75
1/0.97
0.6
1.5
16.4
19.8
17
20.6
24.5
0.012
7/0.37
24.5
0.014
KVV30X1.0
1/1.13
0.6
1.7
17.5
20.5
18
22
18.1
0.011
7/0.43
18.1
0.013
KVV30X1.5
1/1.38
0.7
1.7
20
23
21
25
12.1
0.011
7/0.52
12.1
0.01
KVV30X2.5
1/1.78
0.8
1.7
24
27
24.5
29.5
7.41
0.01
7/0.68
7.41
0.009
KVV37X0.75
1/0.97
0.6
1.7
17.5
20.5
18
22
24.5
0.012
7/0.37
24.5
0.014
KVV37X1.0
1/1.13
0.6
1.7
19
23
19.7
23.8
18.1
0.011
7/0.43
18.1
0.013
KVV37X1.5
1/1.38
0.7
1.7
22
26.6
22.7
27.4
12.1
0.011
7/0.52
12.1
0.01
KVV37X2.5
1/1.78
0.8
1.7
26.1
31.5
26.7
32.2
7.41
0.01
7/0.68
7.41
0.009
KVV44X0.75
1/0.97
0.6
1.7
20.1
24.2
20.8
25.2
24.5
0.012
7/0.37
24.5
0.014
KVV44X1.0
1/1.13
0.6
1.7
21.2
25.6
22
26.6
18.1
0.011
7/0.43
18.1
0.013
KVV44X1.5
1/1.38
0.7
1.7
24.7
29.8
25.4
30.7
12.1
0.011
7/0.52
12.1
0.01
KVV44X2.5
1/1.78
0.8
2
29.9
36.1
30.6
37
7.41
0.01
7/0.68
7.41
0.009
KVV48X0.75
1/0.97
0.6
1.7
20.4
24.6
21.2
25.6
24.5
0.014
7/0.37
24.5
0.011
KVV48X1.0
1/1.13
0.6
1.7
21.5
26
22.3
27
18.1
0.013
7/0.43
18.1
0.011
KVV48X1.5
1/1.38
0.7
1.7
25.1
30.3
25.9
31.2
12.1
0.01
7/0.52
12.1
0.01
KVV48X2.5
1/1.78
0.8
2
30.3
36.7
31.1
37.6
7.41
0.009
7/0.68
7.41
0.012
KVV52X0.75
1/0.97
0.6
1.7
20.9
25.3
21.7
26.2
24.5
0.014
7/0.37
24.5
0.011
KVV52X1.0
1/1.13
0.6
1.7
22.1
26.7
22.9
27.7
18.1
0.013
7/0.43
18.1
0.011
KVV52X1.5
1/1.38
0.7
1.7
25.8
31.1
26.6
32.1
12.1
0.01
7/0.52
12.1
0.01
KVV52X2.5
1/1.78
0.8
2
31.2
31.7
32
38.6
7.41
0.009
7/0.68
7.41
0.012
KVV61X0.75
1/0.97
0.6
1.7
21.9
26.5
22.8
27.5
24.5
0.012
7/0.37
24.5
0.014
KVV61X1.0
1/1.13
0.6
1.7
23.2
28
24.1
29.1
18.1
0.011
7/0.43
18.1
0.013
KVV61X1.5
1/1.38
0.7
2
27
32.7
28.5
34.4
12.1
0.011
7/0.52
12.1
0.01
KVV61X2.5
1/1.78
0.8
2.2
33.1
40
34
41.1
7.41
0.01
7/0.68
7.41
0.009
參考標準：GB/T9330.2-2008
額定電壓：U0/U 為450/750V
額定溫度：70℃
— 產品應用
本產品適用于交流額定電壓U0/U 為450/750V 及以下控制，監控回路及保護線路等場所使用的聚氯乙烯絕緣和聚氯乙烯護套
控制電纜。
— 使用特性
1. 電纜導體允許長期工作溫度應不超過70℃
2. 電纜敷設溫度應不低于0℃
3. 敷設時電纜允許彎曲半徑應不小于電纜外徑的6 倍
4. 護套材料為優質聚氯乙烯，抗老化，耐磨損，防水，防油，防化學腐蝕，無毒等特性
5.100m/200m/300m 每卷或定制長度
