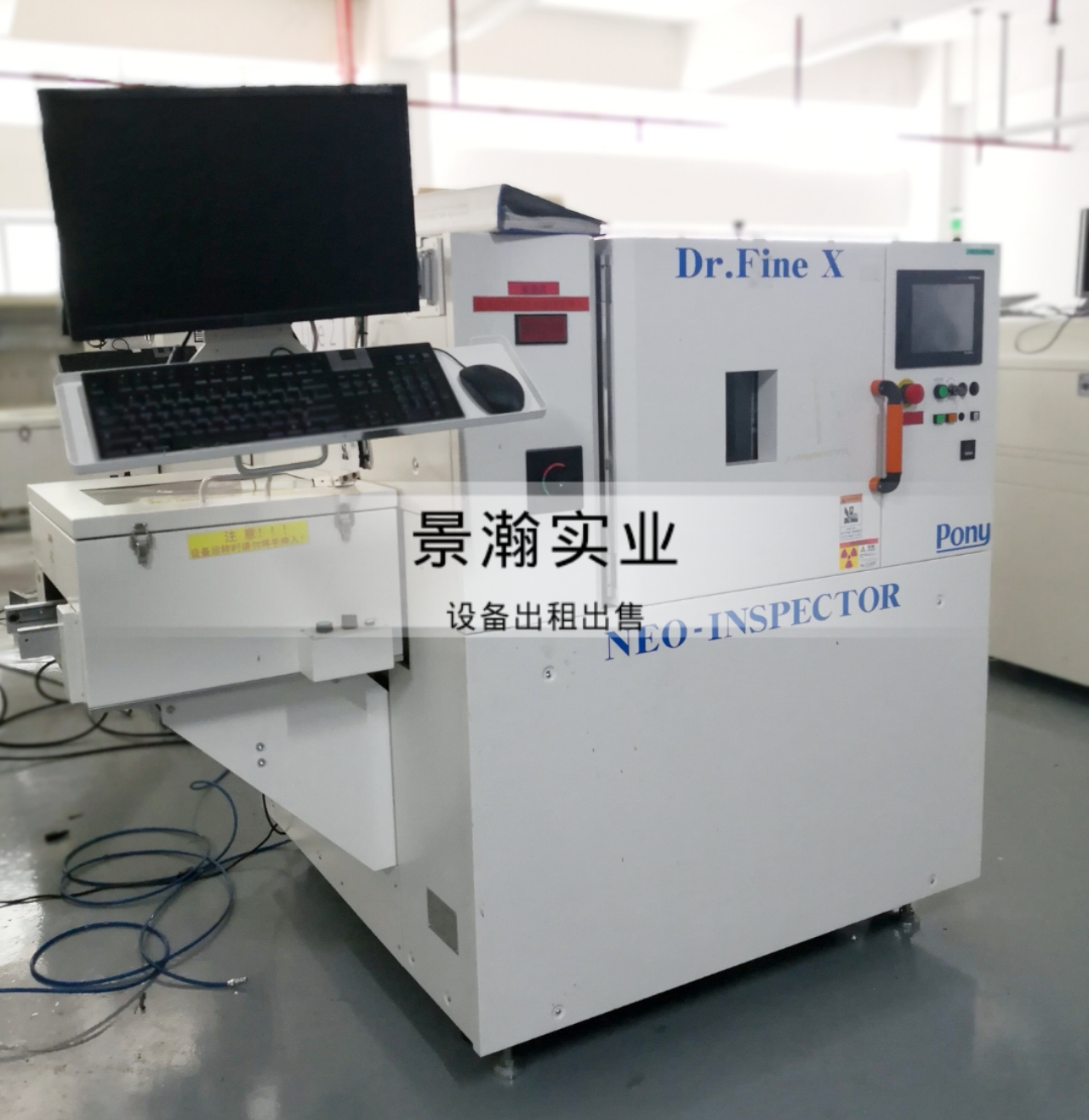

品牌：PONY
型號：NEO INSPECTOR
產(chǎn)地：日本
年份：2011.8
Pony xray技術參數(shù)
| Max. Vol. / Max. Cur. (Max. Output) | 90kV / 0.25mA (10W) | |
| Min. Focus Size | 5um | |
| X-ray Camera | PONY ORIGINALDirect Conversion X-ray Camera SID-A50 | |
| Geometrical Magnification (FOV in mm) |
Min. GM: approx. X1.76 (29.2 X 26.4) to Max. GM: approx. X35 (1.47 X 1.32) |
|
| Magnification on Monitor (Monitor Size) | approx. X9.3 to X184 (17in. with resolution of 1024 X1280) | |
| Oblique View | approx. 50 deg. (Camera alone inclinates for max. magnification) | |
| Geometrical Magnification during Oblique View (FOV in mm) |
Min. GM: approx. X3.1 (16.6 X 15.0) to Max. GM: approx. X28 (1.83 X 1.66) |
|
| Magnification on Monitor during Oblique View (Monitor Size) | approx. X16.3 to X148 (17in. with resolution of 1024 X1280) | |
| Table Size | 350mm X 400mm | 510mm X 560mm |
| X-Y Axis Stroke | 300mm X 350mm | 460mm X 510mm |
| Z Axis Stroke | 220mm | |
| Table Load Capacity | 5kg | |
| External Dimensions (mm) | W930 X D1104 X H1320 | W1250 X D1424 X H1320 |
| Weight | approx. 700kg | approx. 1,000kg |
| X-ray Leakage (at machine surface) | less than 1uSv/hr | |
| Power | AC50/60Hz 100V 15A | |
| Option |
|
|
