◆產品特點 Product features
此機型為兩用型模具及滾筒噴砂機，產品類小工件產品可以批量生產用滾筒來生產提高了生產產量，重型工件可以使用轉臺降低工人的勞動強度，大大的滿足了客戶的需求。
The machine is available mould and roller sandblasting machine, Class products can batch production small workpiece with roller to improve manufacturing output, Heavy workpiece can use turntable to reduce the labor intensity, Fully meet the customer's requirements.
◆主要技術參數 Main technical beters
|

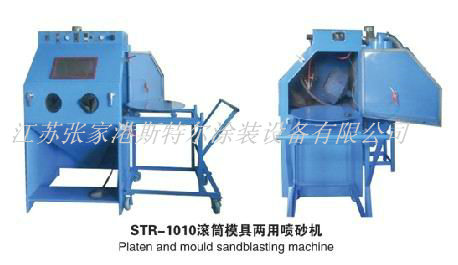

機器型號 Model |
STR-1010滾筒模具兩用噴砂機 |
|
工作艙尺寸 Internal size(mm) |
1000×1000×790 |
|
整機尺寸 Complete machine size(mm) |
1000×1540×1830 |
|
電源 Power |
220V 50Hz |
|
機器照明燈 Machine floodlight |
220V 13W節能燈 |
|
分離器電機 Separator motor |
220V 50Hz 550W |
|
分離器風量 Separator air volume |
8.5m3/min |
|
壓縮空氣源 Compressed air source |
2-8bar(kg/cm2) |
|
轉臺直徑 Turntable diameter(mm) |
500 |
|
轉臺承重 Turntable bearing |
150kg |
|
滾筒承重 Roller bearing |
10-30Kg |
|
機器凈重 Machine net weight |
380 kg |
