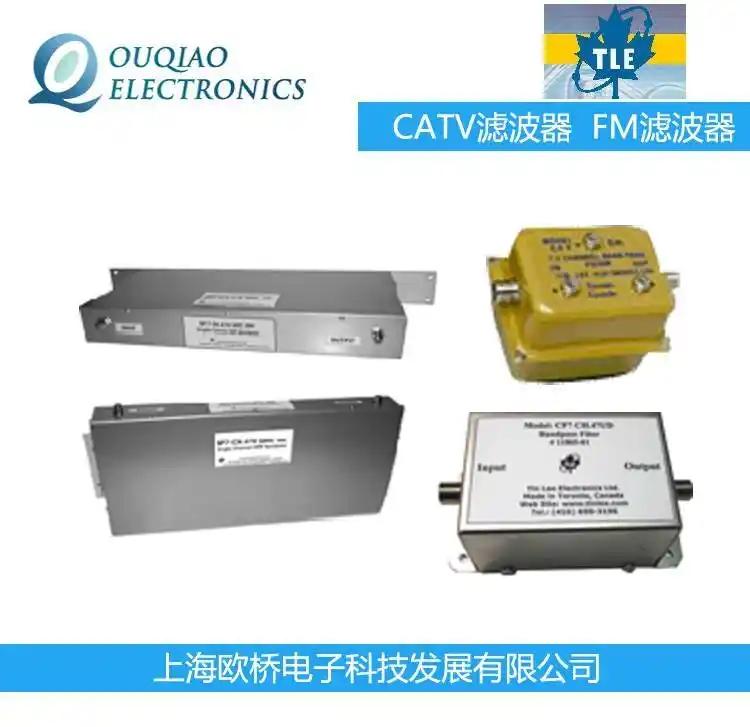

TinLee CFAL CATV濾波器 帶通 FM濾波器 有線電視頻道 tinlee TLE濾波器
品牌：Tin Lee Electronics
類別：CATV濾波器 FM濾波器
型號：CFAL and CFAS
公司介紹：
Tin Lee Electronics有限公司生產有線電視、VHF/UHF和FM接收及射頻通信 濾波器，以及電視/FM前端和信號分配系統產品。
TLE提供：
產品
專為滿足您的需求而設計的特定應用程序產品
我們所有產品的競爭
的技術援助
為TV/FM/RF行業設計的 產品
內部生產，可快速交付并縮短交付周期
嚴格的質量控制，確保可靠性
產品簡介：
CATV濾波器的工作帶寬為5 MHz至1220 MHz，帶通和帶阻濾波器的工作頻率為6 MHz至8 MHz，可達1220 MHz。此外，定制的CATV帶通和阻濾波器的帶寬為192 MHz，工作頻率為1800 MHz。
CATV濾波器和陷波器為NTSC信道/頻率標準，75歐姆阻抗，帶F型母連接器。它們可以根據不同的帶寬、阻抗和連接器進行修改。
這些濾波器具有高選擇性、高衰減和低通帶紋波。
可進行自定義。請咨詢。示例配置：PAL（8 MHz）/BNC/50歐姆。
提供了許多濾波器和陷波器的生產曲線圖，以說明典型的頻率響應
要參考CATV或廣播頻道或頻率，請單擊頂部菜單欄上的“頻率圖”以查看NTSC頻率圖
Adjacent Channel Bandpass (any channel from 5 to 250 MHz)
CFAL and CFAS
Model CFAL and CFAS are designed to pass one specific TV channel, reject the adjacent channels, and all out-of -band frequencies. Channels available (CATV): T7 - T13, 2 - 13, A5 - A1, A14 - I22, 23 - 30, and TV-IF (41 to 47 MHz). Available for NTSC and ATSC system.
Operating Bandb: 5 to 750 MHz
Passband loss:<3.5 db (4 to 5db at band edges)
Return Loss:15 dB typical (except band edges)
CFAL- rejection: >30 dB on adjacent carrier, > 20 dB on rest of channel, > 35 dB out-of-band
CFAS (outdoor version of CFAL) - rejection: > 25 dB on adjacent carrier, and >15 dB on rest of channel, > 30 dB out-of -band
Custom passband: any frequency band (2 to 16 MHz wide) within 5 to 250 MHz (e.g CFAL-ch.14 -16)
Both models are also available in 50 ohms (BNC)
Example Graphs
CFAL-chs 8, T10, CFAL-ch.14 -16
其它相關型號：
CF7W, CF7W HR Wide Non-Adjacent Bandpass Filters for Off-the-Air TV and LTE 700 MHz bands (5 to 900 MHz)
CF7W-VHF, UHF Wide Bandpass filters for Off-the Air VHF, VHF-UHF, UHF
CFAL Single Channel Adjacent Bandpass Filter
(CATV: T7 to T13, IF, 2 to 25)
BP7 Single Channel Adjacent Bandpass (CATV: 14 to 85)
VF7-UHF Frequency Tunable UHF Single Channel Bandpass
VF7-ch.7-13 Frequency Tunable Single Channel VHF Bandpass
CF7 Single Channel Semi-Adjacent Bandpass Filter
(CATV, VHF and UHF)
BP7-UHC UHF/Hyperband Bandpass Filter for UHF Chs 14-69, CATV chs 62-125, LTE 700 MHz block (A,B or C)
NF7 and VF7 Narrow 0.5 MHz and 2 MHz Bandpass Filter (5- 450 MHz)
BP7-CEW Multiple Channel Adjacent Bandpass Filter (5- 600 MHz)
