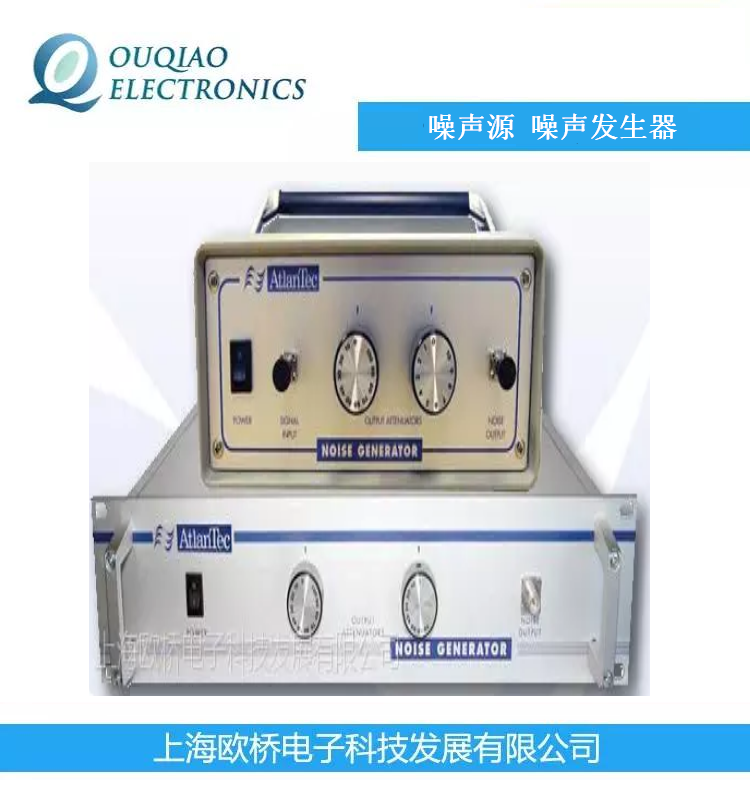

ATLANTEC寬帶噪聲發生器ANG-1601
品牌：Atlantic Microwave
型號：ANG-1601
Atlantic Microwave公司的ANG-1601是一種噪聲源，頻率為10 Hz至20 KHz，噪聲輸出為-30 dBm/Hz，輸出功率為13 dBm，平坦度為0.5 dB，50/60Hz電壓為80至240 V。標簽：機架安裝
產品名稱：ATLANTEC寬帶噪聲發生器ANG-1601
型號：ANG-1601
頻率范圍(GHz)：10HZ-20KHZ
阻抗:50 歐姆
噪音密度 :-30DBM/HZ
輸出平坦度：±0.5DB
衰減值： 0-10DB 1dB步進標準
0-100DB
0-1.0DB
射頻輸出連接: SMA F
前面板: RF輸出
衰減器控制旋鈕
ON / OFF開關
后面板: IECAC電源接頭
交流電源開關
交流保險絲
工作溫度： -10℃-50℃
規格溫度: +25℃
輸入功率: 80-240V50/60HZ@
儀器尺寸: 14.6（370）×4.4（110）×11.8（300）INS（毫米）進行加/傾斜手柄
