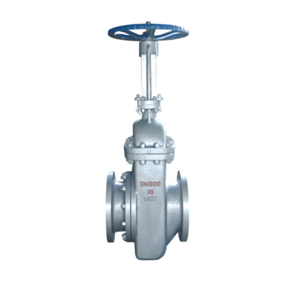

PZ41H型PN10~PN100排渣閘閥
連接方式：手動、法蘭連接、明桿楔式
閥座密封面材料：不銹鋼
公稱壓力：PN10~PN63
閥體材料：灰鑄鐵（PZ41H-10 PZ41H-16）、碳素鋼（PZ41H-10C~100C）
|
PZ41H型PN10~PN100排渣閘閥主要性能參數(shù) |
||||
|
型號 |
PN |
工作壓力/MPa |
適用溫度/℃ |
適用介質 |
|
PZ41H-10 |
10 |
1.0 |
≤425° |
灰渣水混合物（灰水比1:1:5最大粒度≤50mm） |
|
PZ41H-16 |
16 |
1.6 |
||
|
PZ41H-10C |
10 |
1.0 |
||
|
PZ41H-16C |
16 |
1.6 |
||
|
PZ41H-25 |
25 |
2.5 |
||
|
PZ41H-40 |
40 |
4.0 |
||
|
PZ41H-63 |
63 |
6.3 |
||
產品零部件材料 :
|
PZ41H型PN10~PN100排渣閘閥零部件材料 |
||||||
|
型號 |
材料 |
|||||
|
閥體、閥蓋 |
閘板 |
閥體密封圈 |
閥桿 |
墊片 |
填料 |
|
|
PZ41H-10 |
灰鑄鐵 |
灰鑄鐵鑲鉻不銹鋼 |
灰鑄鐵鑲鉻不銹鋼 |
鉻不銹鋼 |
金屬纏繞墊 |
柔性石墨 |
|
PZ41H-16 |
||||||
|
PZ41H-10C |
碳素鋼 |
碳素鋼堆焊鐵基合金 |
碳素鋼堆焊鐵基合金 |
|||
|
PZ41H-16C |
||||||
|
PZ41H-25 |
||||||
|
PZ41H-40 |
||||||
|
PZ41H-64 |
||||||
尺寸表：
|
型號 |
公稱通徑 |
主要尺寸 mm |
||||||
|
L |
D |
D1 |
D2 |
b |
Z-ød |
H |
||
|
PZ41H-10C |
50 |
250 |
165 |
125 |
102 |
20 |
4-ø18 |
335 |
|
80 |
280 |
200 |
150 |
133 |
22 |
8-ø18 |
510 |
|
|
100 |
300 |
220 |
180 |
150 |
24 |
8-ø18 |
685 |
|
|
150 |
350 |
285 |
240 |
212 |
28 |
8-ø22 |
790 |
|
|
200 |
400 |
340 |
295 |
268 |
30 |
12-ø22 |
885 |
|
|
250 |
450 |
405 |
355 |
320 |
32 |
12-ø26 |
1015 |
|
|
300 |
500 |
460 |
41O |
370 |
34 |
12-ø26 |
1190 |
|
|
350 |
550 |
520 |
470 |
430 |
38 |
16-ø26 |
1350 |
|
|
400 |
600 |
580 |
525 |
482 |
40 |
16-ø30 |
1460 |
|
|
500 |
700 |
715 |
650 |
585 |
46 |
20-ø33 |
1820 |
|
|
|
50 |
250 |
165 |
125 |
102 |
20 |
4-ø18 |
335 |
|
80 |
280 |
200 |
150 |
133 |
22 |
8-ø18 |
510 |
|
|
100 |
300 |
235 |
190 |
158 |
24 |
8-ø22 |
685 |
|
|
150 |
350 |
300 |
250 |
212 |
30 |
8-ø26 |
190 |
|
|
200 |
400 |
360 |
31O |
278 |
34 |
12-ø26 |
885 |
|
|
250 |
450 |
425 |
370 |
335 |
36 |
12-ø30 |
1015 |
|
|
300 |
500 |
485 |
430 |
390 |
40 |
16-ø30 |
1190 |
|
|
350 |
550 |
555 |
490 |
450 |
44 |
16-ø33 |
1350 |
|
|
400 |
600 |
620 |
550 |
505 |
48 |
16-ø36 |
1460 |
|
|
450 |
650 |
670 |
600 |
555 |
50 |
20-ø36 |
1620 |
|
|
500 |
700 |
730 |
660 |
615 |
52 |
20-ø36 |
1820 |
|
