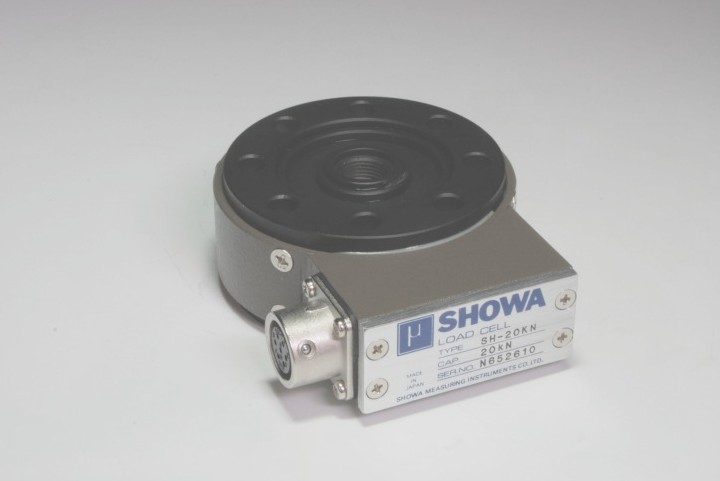

日本SHOWA稱重傳感器SH-1KN
| Safe Overload | 150％RC |
| Rated Output | 0.75mV/V±1％(1kN) |
| 1.0mV/V±1％(2kN) | |
| 1.5mV/V±1％(5kN to 1MN) | |
| Nonlinearity | 0.15%RO |
| Hysteresis | 0.15%RO |
| Nonrepeatability | 0.1%RO |
| Excitation Voltage | 12V (or less) |
| Safe Excitation Voltage | 20V |
| Input Resistance | 350Ω nominal |
| Input Resistance | 350Ω nominal |
| Compensated Temp.Range | －10 to 60℃ |
| Safe Temp.Range | －30 to 80℃ |
| Temp.Effect on Zero | 0.01%RO/℃(1kN,2kN) |
| 0.005%RO/℃(5kN to 1MN) | |
| Temp.Effect on Output | 0.01%/℃ |
| Connector(on body) | Receptacle / PRC03-21A10-7F |
| Attached cable | L-A-5 (Refer to transducer connections) |
