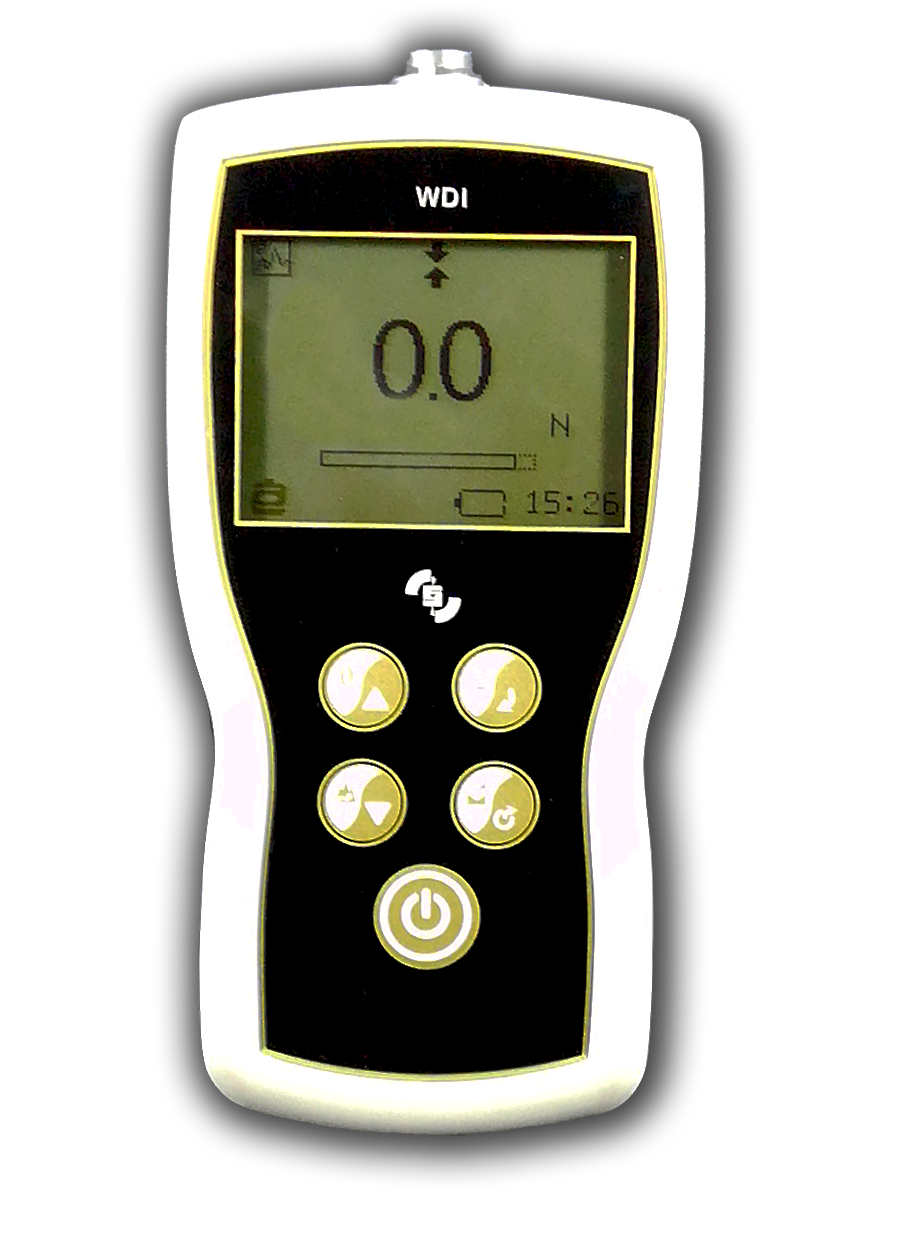

德國力視WAS推拉力計WDI
公司簡介：
德國力視集團（WAS group)是德國一家專業生產傳感器和儀表的高科技公司，公司成立于1965年，有著半世紀的行業經驗， 主要產品有：壓力傳感器，稱重傳感器，扭矩傳感器，多維力傳感器，高低溫應變計，智能儀表，壓力計，扭力計，測力設備等等，主要客戶涉及航空航天，醫藥電子，科研校準等等，是國際最具競爭力的測力供應商之一。
產品參數：
精度：0.2% F.S。
單位：N,kgf,lbf,ozf,gf。
觸摸面板。
內置陀螺儀，屏幕自動翻轉，易于讀數
多報警輸出。
RS232,USB通訊。
儀表打印。
傳感器智能識別。
全金屬機身，抗干擾強。
使用案例：
英文介紹：
The multiple-language WDI's provide menu programming for easy selection and set-up of the instrument to your desired requirements. Four selectable modes of operation include: Track mode for live readings, Peak mode for displaying the maximum reading, Auto Peak where the peak resets after a programmed period of time and First Peak where only the initial peak is recorded once a decrease is sensed. This high-tech instrument can easily data log a reading at the push of a button for simple data acquisition, or be set to continuous data storage. Data can be viewed on the screen, sent to the optional printer, or loaded to be analyzed and graphed on the free software program. The 1,000 point memory with definable groups allows for multiple tests to be recorded and easily separated upon loading. In addition, the comparator output can be set up for integration of the instrument into a quality system for repetitive testing such as on a production line.
Features
1000 Hz Sample Rate combined with ±0.2% F.S. accuracy provides fast sampling producing great resolution and more accurate results
Four mode operation: Track, Peak, First Peak & Auto-Peak
180° Auto-reversible display, tension/compression icons, and dual printed keypad allows usage as a portable gauge or mounted upside down on a test stand
Programmable High & Low Limits allow for instant visual and audible indication of pass or fail testing
1000 point data collection capability can be viewed on display, sent to optional printer, or uploaded to software package for further analysis
Rugged, ergonomic die cast aluminum construction allows usage in demanding applications
Comparator output function provides user with easy Pass/Fail testing system integration capabilities
Multi-language and engineering units selection provides flexible user comfort
Datalogging/graphing software available for free download on website
Applications
Incoming Quality Inspection
Finished Goods Testing
Research & Development
Most Force Testing Requirements
