Continuous measurement
of the thickness distribution
Feasures

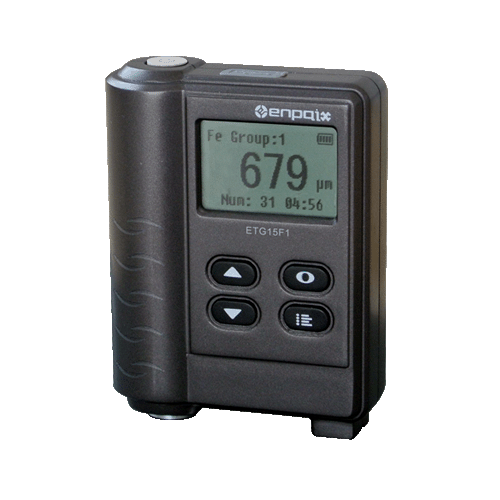

Very compact size with integrated probe.
Magnetic induction b (ISO 2178, ASTM D7091), Measurement of non-magnetic coatings on magnetic substrates.
Quick one-hand operation. Place instrument on specimen and see the measured value.
Ready to measure immediaby without calibration.
Easy to perb zero-point correction provides correct measurement results for measuring applications with little changes in shape and substrate material.
The one-point calibration function allows for an adaptation in cases of severe changes in shape or substrate material.
Data transmitting to PC via USB cable.
Statistic function allows for evaluation of a measurement series and display of the most significant characteristic statistical values.
Specifications
Test Method
Magnetic induction
Measuring Range
0~1500μm (0 ~60 mil)
Resolution
0 ~ 999μm: 0.1μm, ≥1000μm: 1μm
Accuracy
0 ~ 100μm: ±1.5μm , 101 ~ 1500μm: ≤ ±1.5 %
Data Memory
1500 readings
Display
Matrix LCD with Backlight
Power
1.5V*3 (AAA alkaline batteries)
Printer
Wireless Mini-printer(optional)
Dimensions
88 X 67 X 30 mm
Weight
120gr
Certificate
Accessories
Thickness gauge,
Substrate,
Certification foils set,
3 AAA batteries,
Data cable,
Data logger software,
Sheath,
User's manual, Certificate.
