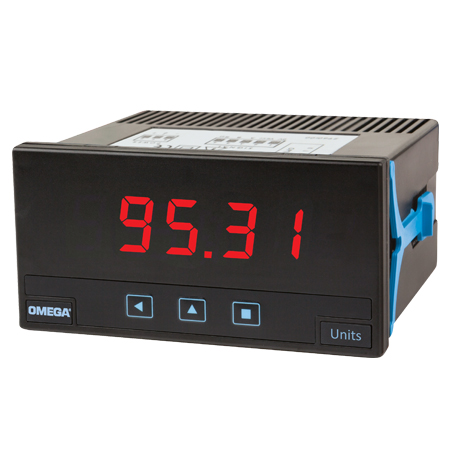

1/8 DIN Universal Panel Meter
快速訪問菜單 - 前鍵訪問修改報警設置點和最大/最小內存
外部控制功能 - 多功能端子5的接觸（第二次縮放，小數點改變，“保持”讀取或激活最大/最小存儲器）
自動節(jié)能環(huán)保模式
報警1或2，獨立，可配置為最大/最小值，具有設定值和遲滯
閱讀偏移 - 配置要添加到閱讀的固定數量的計數
第二縮放功能 - 定義相同信號和控制的兩個可選（一個在“外部控制”選項中有效）
用于嘈雜信號的遞歸顯示過濾器和可讀取的最小預定義更改的可配置步驟
輸出和控制選項：1或2繼電器輸出，1模擬4至20 mA隔離輸出，1個Modbus RTU隔離串行輸出
5級亮度強度
密碼保護
應用
制造裝配線
電氣控制面板
大學和研究實驗室
產品描述
OMEGA’s new universal panel meter delivers high perbance in a 1/8 DIN size for panel mount, and integration in a wide range of applications. The DP20 accepts universal bs, including thermocouple, RTD, process (mA & Vdc), resistance, and true RMS voltage and current. By configuration, it will work as an AC and DC voltmeter (up to 400 V) and AC and DC ammeter (up to 5 A) offering application flexibility for process control and industrial requirements. A single universal power supply allows this unit to be suited for b use.
The optional relays, analog output, and Modbus? RTU serial communications provide customization, control and communication capability. Additional features of the economical DP20 panel meter include scaling, NEMA 13 (IP54) protection, and programmable decimal points.
Specifications
Digits: 4
Reading: 9999 / -1999
Decimal Point: Configurable
LED Color: Red
Digit Height: 14 mm (0.55")
Accepted Signal Ranges: See tables on pdf page 4 for more inbation
AC Voltages and AC Currents: 400 Vac, 200 Vac, 20 Vac, 2 Vac, 200 mVac, 60 mVac, 5 Aac, 20 mAac (True RMS measure) (accepts phase-neutral and phase-phase measure)
DC Voltages and DC Currents: ±400 Vdc, ±200 Vdc, ±20 Vdc, ±2 Vdc, ±200 mVdc, ±60 mVdc, ±5 Adc, ±20 mAdc
Thermocouples: K, J, E, N, L, R, S, B, T and C (automatic cold junction compensation)
Probes:
Resistive ‘Pt’ Probes: Pt100 with 2 and 3 wires, Pt500, Pt1000
Resistive ‘Ni’ Probes: Ni100, Ni200, Ni1000
Resistive NTC Probes: See table at page 4
Resistive PTC Probes: Families KTY-121, KTY-210 and KTY-220
Process: 4/20 mA, 0/10 Vdc (+15 Vdc excitation voltage configurable at terminal 5)
Resistances: Ranges 0/5 K and 0/50 K
Potentiometers: With nominal values from 500 R up to 20 K
Thermal Drift Offset+Span: 150 ppm/oC
Readings: 3 readings/ second
Refresh: 3 readings/ second
Response Time: <300 mSec. (0 % to 99 % of signal)
Power ‘U’: 18 to 265 Vac/dc (isolated 1500 Veff @ 60 seconds)
Output and Control Options 1 or 2 Relays:
1 Analog output 4/20 mA isolated
1 Modbus RTU isolated serial output
Protection: NEMA 13 (IP54)
Consumption (Normal Mode): <1.0 W (meter only) <2.5 W (meter with options)
Consumption (‘Eco’ Mode): <0.3 W (meter only) <1.5 W (meter with options)
Connections: Plug-in screw terminals
Weight: <150 g (5.3 oz)
Operation Temperature: 0 to 50 oC (32 to 122oF)
產品編號 產品描述
DP20 1/8 DIN multisignal panel meter with universal 18/265 Vac/dc power supply
DP20-A1 1/8 DIN multisignal panel meter with universal 18/265 Vac/dc power supply with 1 relay output
DP20-A1-A2 1/8 DIN multisignal panel meter with universal 18/265 Vac/dc power supply with 2 relay outputs
DP20-M1 1/8 DIN multisignal panel meter with universal 18/265 Vac/dc power supply with 1 isolated 4 to 20 mA analog output
DP20-M1-A2 1/8 DIN multisignal panel meter with universal 18/265 Vac/dc power supply with 1 isolated 4 to 20 mA analog output and 1 relay output
DP20-S1 1/8 DIN multisignal panel meter with universal 18/265 Vac/dc power supply with 1 isolated Modbus RTU output
DP20-S1-A2 1/8 DIN multisignal panel meter with universal 18/265 Vac/dc power supply with 1 isolated Modbus RTU output and 1 relay output
