CNI-CB120SB-S-EI詳細介紹

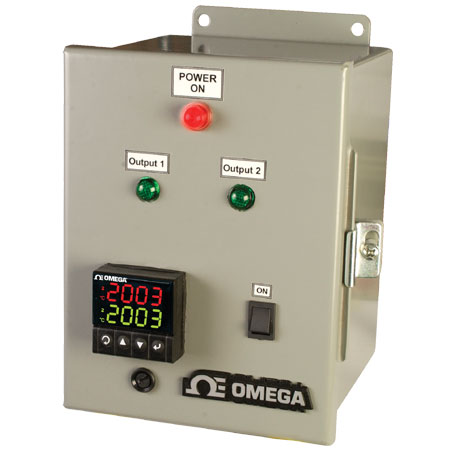

CNI-CB120SB-S-EI
溫度/過程控制器 ? CNI-CB120SB Temperature - Process Controller
溫度 - 過程控制器、自給式溫度控制面板，帶Omega的基于iSeries微處理器的控制器 - 12A (1440 W)容量
CNI-CB120SB Temperature - Process Controller
Easy-to-Use Digital Controller with On/Off, PID and Ramp/Soak
Optional Ethernet Control with Built-In Web Server
120V Operation
12 A (1440 W) Nominal, 15 A Max Capacity
Type K Input and M12 Female Connector Input for RTD or Process (0 to 1V, 0 to 10V, 4 to 20 mA)
On/Off Switch
Main Power Light
Output Indicator Lights
Two 7A Controlled Outputs with Standard 120V Power Output Receptical
Fuses for Controller, Output 1 and 2 Provided
For Indoor Use
產品描述
The CNI-CB120SB Series is a self-contained temperature/process control panel that provides a complete control system design, eliminating the need to select, collect and assemble separate components. The preconfigured panels are ready to install, requiring only supply power, load and sensor hook-up. They are equipped with an OMEGA? iSeries microprocessor-based controller with on/off, PID and ramp/soak capabilities along with a tri-color display. These control panels are supplied with a thermocouple b jack and M12 female connector for RTD or process bs. Their compact packaging makes them portable or easy to mount, even in limited spaces.
For additional inbation on the CNI microprocessor-based controller, see "related bs" above.
Specifications
Weight: 4.53 kg (10 lb)
Dimensions: 203 H x 152 W x 152 mm D (8 x 6 x 6")
Operating Temperature: 0 to 55°C (32 to 151°F)
Other thermocouple types are available. Please see the Part Number Builder directly below the ordering table.
Not available for export to Canada or Europe.
產品編號生成器
在此處生成您自己的產品編號
(1)
(2)
CNI-CB120SB-
選項說明:
(1) Thermocouple Type 選項:
K for K thermocouple
J for J thermocouple
T for T thermocouple
E for E thermocouple
N for N thermocouple
R for R thermocouple
S for S thermocouple
(2) Ethernet Option 選項:
無（選項為空白） for No Ethernet
-EI for Ethernet
注: 并非所有組合都有效，請查閱規格表上的有效產品編號。
產品編號 產品描述
Self Contained Temperature/Process Controller
CNI-CB120SB-K Control panel, K calibration, RTD or process bs
CNI-CB120SB-J Control panel, J calibration, RTD or process bs
Self Contained Temperature/Process Controller with Built-in Ethernet Web Server
CNI-CB120SB-K-EI Control panel with Ethernet, K calibration, RTD or process bs
CNI-CB120SB-J-EI Control panel with Ethernet, J calibration, RTD or process bs
Accessories
M12-S-M-FM M12 field mountable 4-pin male connector with terminal lugs.
