CBC991-250

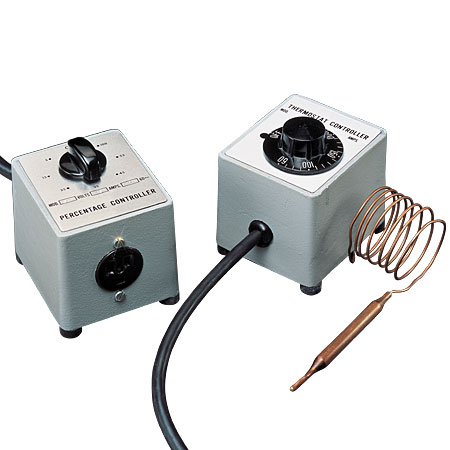

溫度控制器 ? CPP940 & CBC990 Series
實驗室加熱器的緊湊型溫度控制器
CPP940 & CBC990 Series
Rugged Cast Aluminum Case (for CPP and CBC Series)
Simple One-Control Adjustment (for CPP and CBC Series)
Ready to Use; No Wiring Necessary - Just Plug In (for CPP and CBC Series)
Automatic Control (for CBC Series)
Low Cost Closed Loop Control (for CBC Series)
1.2 m (4') Copper Bulb & Capillary (for CBC Series)
產品描述
The OMEGALUX? percentage controller is a manually adjustable control which provides variable selection of average heater power. The controller varies the proportion of “off” and “on” time of the heater. Thermal characteristics of the heated item will determine the setting of the manually adjustable controller knob. The controller does not use a temperature sensor; therefore, operation requires occasional supervision under changing load conditions.
Applications
OMEGALUX? percentage controllers are designed for indoor use to control the temperature of small tanks, laboratory heaters, pipes, and drums in which the control of average power is desired and precise control is not required.
CBC controllers are designed for indoor use to control the temperature of small tanks, drums, pipes or other applications requiring automatic temperature control.
The OMEGALUX? Series CBC controller utilizes a bulb and capillary type sensor to control a single pole, single throw switch. Once the temperature is set, it is automatically maintained by the controller. The control is housed in a rugged cast aluminum enclosure and has an easy-to-read dial. No wiring is required, as the heater is plugged into the control unit.
產品編號 產品描述
CPP942 Percentage controller with 240 V and 15 A
CBC991-250 Bulb and capillary controller with 15 A, 120 V, and 15 to 120°C (59 to 248°F) temperature range
CBC992-250 Bulb and capillary controller with 15 A, 240 V, and 15 to 120°C (59 to 248°F) temperature range
CBC992-550 Bulb and capillary controller with 15 A, 240 V, and 65 to 290°C (149 to 554°F) temperature range
產品編號
CPP942
CBC991-250
CBC992-250
CBC992-550
