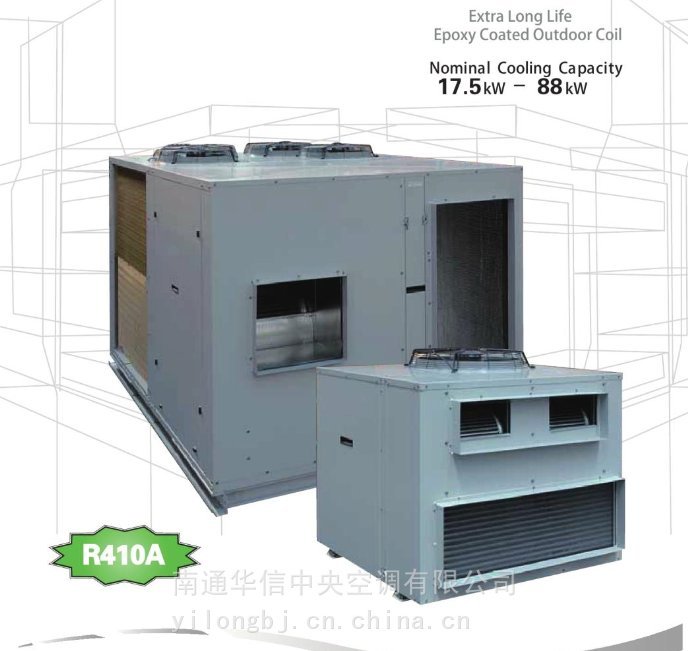

.jpg "易龍屋頂機CK5ERS0175、CK5ERS0210、CK5ERS0280、CK5ERS0350")
| 產品參數 | |||
|---|---|---|---|
| 品牌 | 易龍 | ||
| 加工定制 | 是 | ||
| 控溫范圍 | 定制 | ||
| 流量壓力 | 定制 | ||
| 風量 | 定制m3/h | ||
| 制冷量 | 定制kw | ||
| 規格 | 定制 | ||
| 可售賣地 | 全國 | ||
| 用途 | 辦公樓 | ||
| 類型 | 屋頂機 | ||
| 型號 | 5ERS | ||
| Model | CK5ERS0410 | CK5ERS0540 | CK5ERS0700 | CK5ERS0880 | ||
| Cooling Capacity ?*1 | kw | 40.2 | 54.1 | 70 | 88 | |
| Cooling Capacity?? | Btu/h | 140,000 | 185,000 | 239,000 | 300,000 | |
| Cooling Capacity?? | ton | 12 | 15.5 | 20 | 25 | |
| Cop | 2.42 | 2.4 | 2.45 | 2.41 | ||
| Cooling Capacity?*2 | kw | 41.5 | 58 | 72 | 90 | |
| Supply Air Flow(nominal) | m3/h | 8000 | 10000 | 14000 | 17600 | |
| Power Supply *3 | 400-415Va.c.50Hz | |||||
| External static pressure? | Pa | 500 | 500 | 500 | 600 | |
| Dimensions: | Width | mm | 1800 | 1800 | 2270 | 2270 |
| Depth | mm | 2200 | 2500 | 2800 | 2980 | |
| Height | mm | 1750 | 1750 | 1800 | 1950 | |
| Weight | kg | 770 | 890 | 1160 | 1210 | |
| Features *4 | ac | ac | b | b |
?.jpg)
