產品名稱：SN-YS2/4/8全自動液體灌裝旋/軋蓋機
簡介：該機主要適用于100毫升以內電子油、滴眼液、指甲油、眼線液、精油等產品的自動灌裝、加塞和旋蓋。進行全自動灌裝、加塞/加走珠/指甲油毛刷，上蓋旋/軋蓋，采用直線式輸送,直線輸送帶上/轉盤內進行滾珠，轉盤內上塞上蓋旋/軋蓋。PLC控制觸摸屏操作界面，具有缺瓶不灌，無瓶不上塞不上蓋等功能，自動化程度高，灌裝不漏液，該機設計合理,操作方便。

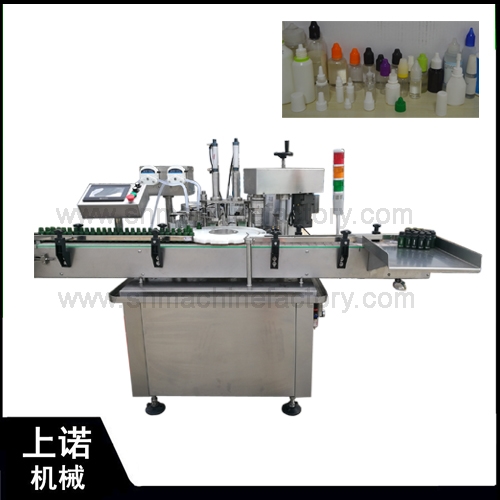

Machine name: SN-YS2/4/8 Automatic Liquid Filling and Capping Machine
Application: This machine is mainly suitable for automatic filling, plugging in and screw capping of electronic cigarette liquid, eye drops, nail polish, eye shadow, essential oil, with filling volume less then 100ml. It’s full automatic filling, plug,add remove beads/nail brush, cover screw/cap rolling, adopt linear conveying, linear conveyor belt/ball rolling in the rotary plate, cover screw/cap rolling in the rotary plate.PLC control touch screen operation interface, with lack of bottle no filling, no bottle plugging, no cap and other functions, high degree of automation, filling without leakage, the machine design reasonable, easy to operate.
技術參數/Technical beter:
|
型號/Model |
SN-YS2 |
SN-YS4 |
SN-YS8 (可定制10、12頭灌裝) |
|
灌裝頭數/Filing head number |
2 |
4 |
8 |
|
扎蓋頭數/Capping head number |
1 |
2 |
2 |
|
灌裝量/Filling volume |
1-50ml（也可以定制50-100ml） |
||
|
生產能力/Capacity |
20-40 bottles/min |
40-80 bottles/min |
60-80 bottles/min |
|
電源/Power supply |
1 Ph. AC220V, 50/60Hz |
||
|
總功率/Total power |
1.2 KW |
1.5 KW |
2 KW |
|
凈重/Net weight |
500kg |
600kg |
650kg |
