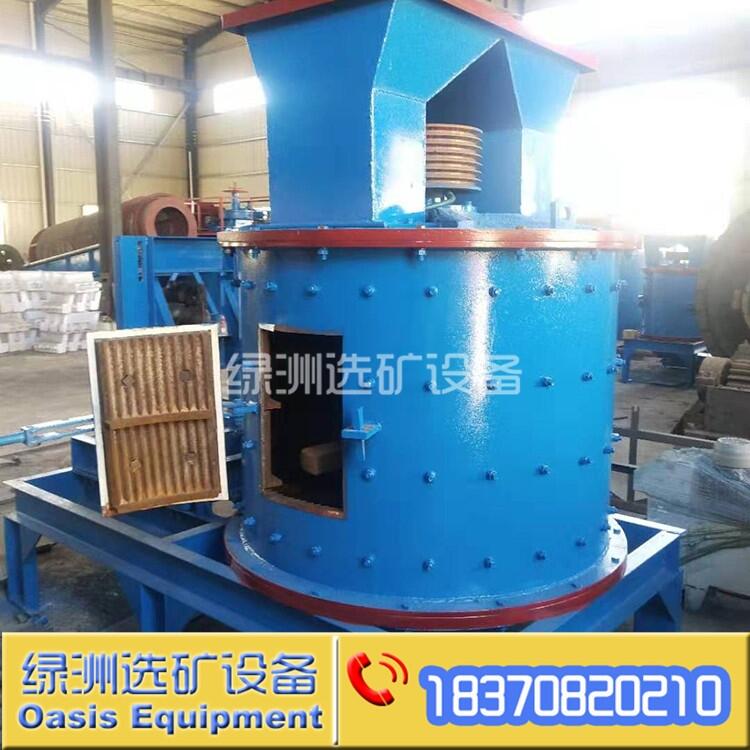

立式復合破碎機Vertical Combination Crusher
復合破碎機簡稱復合破,又名立式復合破碎機,是一種無篩條,可調試細碎設備,常用于破碎生產線和制砂生產線,主要有機架,傳動裝置,動錐,潤滑系統,液壓系統等部分組成,廣泛應用于電力,礦山,陶瓷,冶金,耐材,水泥,煤炭等行業。
Vertical combination crusher can crush large materials, and the discharging granularity can be adjusted at will without the influence of the abrasion of the board hammer and lining plate.It adopts the no-grizzly-bar structure to avoid blocking, which is suitable to crush materials with much moisture and silt content.
|
型號規格 |
給料粒度 |
出料粒度 |
生產能力 |
主軸轉速 |
電機功率 |
外形尺寸 (mm) |
重量 (t) |
|
LZPL800 |
<70 mm |
<5 mm 60-90% |
5-15 t/h |
934 r/min |
22 kw |
2100/1200/1700 |
2 |
|
LZPL1000 |
<100 mm |
<5 mm 60-90% |
10-30 t/h |
769 r/min |
75kw |
2600/1400/1900 |
5 |
|
LZPL1250 |
<120 mm |
<5 mm 60-90% |
20-60 t/h |
530 r/min |
110 kw |
2800/1600/2100 |
8 |
|
LZPL1500 |
<150 mm |
<5 mm 60-90% |
30-80 t/h |
495 r/min |
132 kw |
3100/1900/2200 |
10 |
|
LZPL1750 |
<170 mm |
<5 mm 60-90% |
100-150 t/h |
424 r/min |
160 kw |
3710/2360/2390 |
15 |
|
LZPL2000 |
<200 mm |
<5 mm 60-90% |
600-130 t/h |
370 r/min |
200kw |
4100/2660/2620 |
20 |
