宜鼎彈性擴充的通訊卡模塊系列，可針對工業(yè)系統(tǒng)提供穩(wěn)定連接及帶寬，并滿足物聯(lián)網下裝置互連的需求。

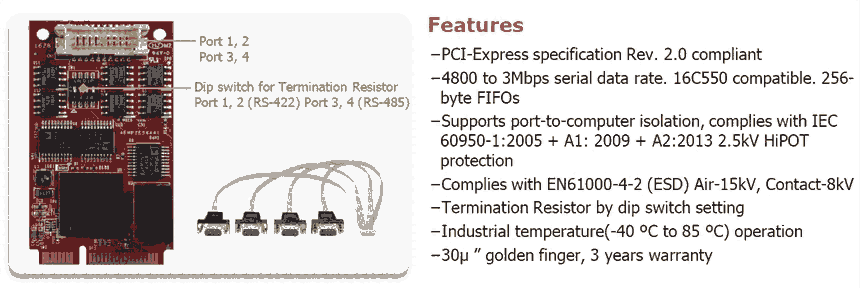

| Module Name | EMP2-X4S2 |
| Module Type | mPCIe to two Isolated RS-422 & RS-485 Module |
| Function | Serial |
| bbbb Factor | mPCIe |
| bbbbb I/F | PCI Express 2.0 |
| Output I/F | Isolated RS-422 x 2, RS-485 x 2 |
| Output connector | DB-9 x 4 |
| Power Consumption | 0.58W (3.3V x 175mA) |
| Dimensions (W x L x H/mm) | 30 x 50.9 x 12.55 |
| Temperature |
Operation: W/T temp: -40°C ~ +85°C Storage: -55°C ~ +95°C |
| Environment |
Vibration: 5G @7~2000Hz Shock: 50G @ 0.5ms |
| Notes |
Please download driver from MyInnodisk website. WINOOWs: XP(32 bit), 7(32/64 bit), 8/8.1(32/64 bit), 10, WES7, CE7.0 Linux: Kernel 2.6.x and above.(We can provide Linux source for modification.) |
| P/N | DeSCRJPTion |
| EMP2-X4S2-W1(Wide Temp.) | mPCIe to two Isolated RS-422 & RS-485 Module |
