埃賽力達 紫外/可見分光度計?PAX-2脈沖氙氣光源
埃賽力達 紫外/可見分光度計?PAX-2脈沖氙氣光源
產品價格：￥
上架日期：2020-12-02 09:58:21
產地：深圳
發貨地：深圳
供應數量：不限
最少起訂：1
瀏覽量：803
資料下載：暫無資料下載
其他下載：暫無相關下載
詳細說明
    是否進口 否 加工定制 否 品牌 excelitas
    類型 脈沖氙氣光源 型號 ?PAX-2 燈泡形式 脈沖氙氣
    額定功率 2W（W） 額定電壓 11-15（V） 是否跨境出口專供貨源 是

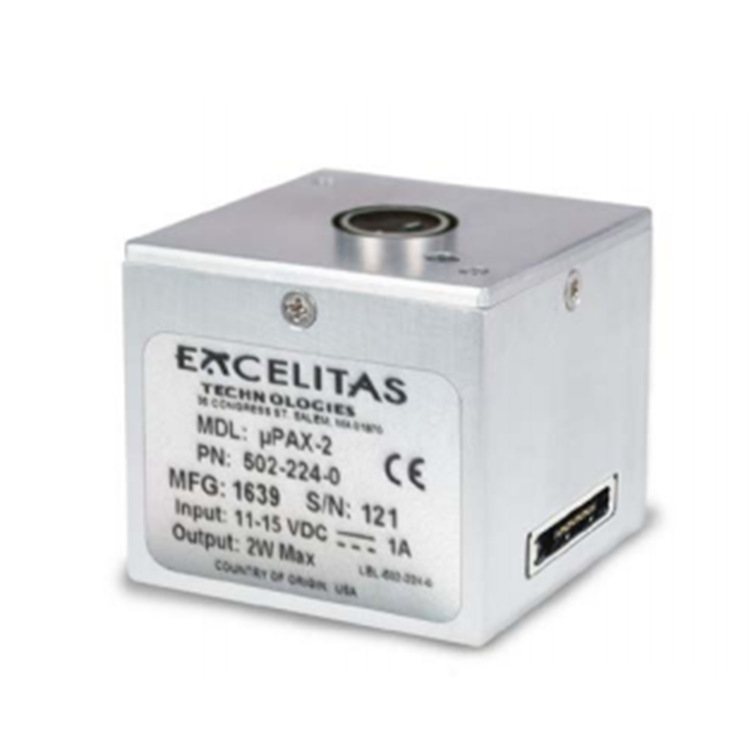

           The µPAX-2 offers a wide range of flash energy levels and 2 Watts maximum power in a compact, pre-aligned module. It utilizes Excelitas’ high stability short arc Xenon flash lamps. Known for their stability and long life characteristics, these Xenon lamps generate light over a continuous spectrum from ultraviolet to infrared.



    Features

    • High radiant intensity
    • Continuous spectrum UV-VIS-IR
    • High Stability, <0.5% CV typical
    • Long life expectation: 1.0 x 109 flashes
    • External and internal reference voltage control
    • Regulated trigger voltage
    • Battery operable
    • Precision alignment
    • Integrated package—flash lamp, trigger circuit and power supply, all in a compact, EMI suppressant enclosure
    • CE marked and RoHS compliant
    • Cable accessories available
    • SMA adaptor option available



    Applications

    •  UV/Vis Spectrophotometer
    • Point-of-care Analytics
    • Environmental Analysis
    • Absorption Analysis
    • Fluorescence Trigger
    • Immunoassays
    • Microplate Readers





    Parameter

    Specification



    Voltage

    11 to 15 VDC



    DC Current

    <1 Amp avg.



    Inrush Current

    2 Amps peak



    Trigger

    +5V, 20-50mA peak b, Pulse b 10uS -100uS. Optically isolated internal series resistor = 150Ω



    Vref (External Intensity Adjust)

    Cable Connector: 0 to 5VDC = 600 to 400VDC



    Flying Leads Connector: Not applicable







    Intensity Selection

    User Selectable (see user manual)



    Mating Input Connector

    Hirose Electric Co. Ltd 3540-10P-CV(50)*



    Flying leads









    *Cable accessories available
