PECIFICATIONS
MODEL
1210 1210 1220 1232
CAPACITY
U.S. Models (lbf) 300,500,1K,2K 5K, 10K 25K, 50K 100K
Metric Models (kN) 1.5, 2.5, 5, 10 25, 50 100, 250 450
ACCURACY – (MAX ERROR)
Static Error Band–% FS ±0.04 ±0.05 ±0.05 ±0.06
Nonlinearity–% FS ±0.04 ±0.05 ±0.05 ±0.05
Hysteresis–% FS ±0.03 ±0.05 ±0.06 ±0.06
Nonrepeatability–% RO ±0.01 ±0.01 ±0.01 ±0.01
Creep, in 20 min–% ±0.025 ±0.025 ±0.025 ±0.025
Side Load Sensitivity–% ±0.25 ±0.25 ±0.25 ±0.25
Eccentric Load Sensitivity–%/in ±0.25 ±0.25 ±0.25 ±0.25
TEMPERATURE
Compensated Range–°F 15 to 115 15 to 115 15 to 115 15 to 115
Compensated Range–°C -10 to 45 -10 to 45 -10 to 45 -10 to 45
Operating Range–°F -65 to 200 -65 to 200 -65 to 200 -65 to 200
Operating Range–°C -55 to 90 -55 to 90 -55 to 90 -55 to 90
Effect on Zero–%RO/°F – MAX ±0.0008 ±0.0008 ±0.0008 ±0.0008
Effect on Zero–%RO/°C – MAX ±0.0015 ±0.0015 ±0.0015 ±0.0015
Effect on Output–%/°F – MAX ±0.0008 ±0.0008 ±0.0008 ±0.0008
Effect on Output–%/°C – MAX ±0.0015 ±0.0015 ±0.0015 ±0.0015
ELECTRICAL
Rated Output–mV/V (Nominal) 2.0 4.0 4.0 4.0
Excitation Voltage–VDC – MAX 20 20 20 20
Bridge Resistance–Ohm (Nominal) 350 350 350 350
Zero Balance–% RO ±1.0 ±1.0 ±1.0 ±1.0
Insulation Resistance–Megohm 5000 5000 5000 5000
MECHANICAL
Safe Overload–% CAP ±150 ±150 ±150 ±150
Deflection @ RO–inch 0.001 0.002 0.002 0.003
Deflection @ RO–mm 0.03 0.05 0.05 0.08
Optional Base–P/N (Metric) B101 (M) B102 (M) B103 (M) B112 (M)
Natural Frequency–kHz 3.9, 5.0, 6.6, 9.4 6.5, 7.0 5.8
6.9, 9.8
Weight–lb 1.5 3.3 9.5 26
Weight–kg 0.7 1.5 4.3 11.8
Connector PC04E-10-6P PC04E-10-6P PC04E-10-6P PC04E-10-6P
Calibration T & C T & C T & C T & C
Base (Recommended)
Compression Overload Protection
Integral 10 ft Cable
Bayonet Connector
Multiple Bridge
Standardized Output
Connector Protection
Transducer Electronic Data Sheet (TEDS)
OPTIONS

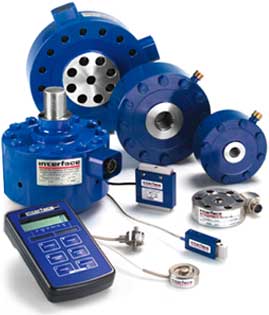

1200系列稱重傳感器(輪輻式):
1210ACK-300-B 1210AF-300-B 1210AJ-300-B
1210ACK-500-B 1210AF-500-B 1210AJ-500-B
1210ACK-1K-B 1210AF-1K-B 1210AJ-1K-B
1210ACK-2K-B 1210AF-2K-B 1210AJ-2K-B
1210ACK-25K-B 1210AF-25K-B 1210AJ-25K-B
1210ACK-5K-B 1210AF-5K-B 1210AJ-5K-B
1210ACK-50K-B 1210AF-50K-B 1210AJ-50K-B
1210ACK-10K-B 1210AF-10K-B 1210AJ-10K-B
1220ACK-25K-B 1220AF-25K-B 1220AJ-25K-B
1220ACK-50K-B 1220AF-50K-B 1220AJ-50K-B
1232ACK-100K-B 1232AF-100K-B 1232AJ-100K-B
1240ACK-200K-B 1240AF-200K-B 1240AJ-200K-B
1244CDS-270K-B
1250CDS-400K-B
1260CDS-600K-B
1280CDS-1000K-B
1290CDS-2000K-B
1201系列稱重傳感器(輪輻式):
1211EX-1K-B 1211HL-1K-B
1211EX-2K-B 1211HL-2K-B
1211EX-5K-B 1211HL-5K-B
1211EX-10K-B 1211HL-10K-B
1221EX-25K-B 1221HL-25K-B
1221EX-50K-B 1221HL-50K-B
1231EX-100K-B 1231HL-100K-B
1241EX-200K-B 1241HL-200K-B
1243EX-300K-B 1243HL-300K-B
1243EX-400K-B 1243HL-400K-B
1200系列稱重傳感器(法蘭式):
1228-30K(PC04E-10 6腳螺旋式接頭) 1228-30K(10 foot cable)
1238-55K(PC04E-10 6腳螺旋式接頭) 1238-55K(10 foot cable)
1248-110K(PC04E-10 6腳螺旋式接頭) 1248-110K(10 foot cable)
1258-220K(PC04E-10 6腳螺旋式接頭) 1258-220K(10 foot cable)
1268-330K(PC04E-10 6腳螺旋式接頭) 1268-330K(10 foot cable)
