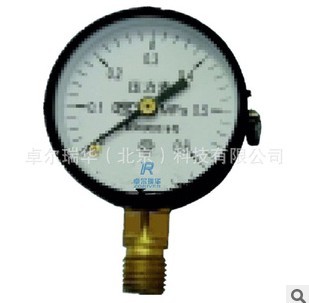

Zoriver 廠價批發 普通壓力表 真空表Y-60 Y-100 Y-150 Y-200

(60/100/150)一般壓力表系列
General service pressure gauge
外徑 Diameter：φ 60 φ 100  φ 150

    Y系列一般壓力表適用于測量無爆炸，不結晶、不凝固及對銅合金不起腐蝕作用的液體或氣體等介質的壓力。儀表的測量系統由接頭、彈簧管和傳動機構組成。通過指針指示儀表讀數。
    Y series General Service Pressure Gauge suitable for the non-explosion, non-crystal,non-solid and non-corrosion to the copper alloy. The pressure system consists of socket, bourdon tube and transfer mechanism and show the value through the pointer.
    外徑60、100、150 一般壓力表有徑向直接安裝、徑向后帶邊凸裝、徑向前帶邊嵌裝、軸向直接安裝、軸向前邊嵌裝等多種安裝型號可供選擇。
    The pressure gauge of 60, 100, and 150mm has many ways to mount: bottom mounting,bottom mounting with back flange, bottom panel mounting with front flange, back mounting,back panel mounting with front flange and so on.


   產品簡介 PRODUCT  OVERVIEW

    Y-060    Y-100    Y-150
    徑向直接安裝  Bottom mounting








    徑向后帶邊安裝Bottom mounting  with back flange


    徑向前帶邊安裝Bottom mounting  with front flange








    軸向直接安裝 Back mounting






    軸向前邊嵌裝Bottom panel  mounting with  front flange

   主要技術參數Specifications
    精度等級：ф60、2.5%，ф100、ф150、1.5%

    Accuracy: ф60、2.5%，ф100、ф150、1.5%
    測量范圍：負壓-0.1-0；-0.1-0.06 至-0.1-2.4MPa

              正壓ф60 0-0.1 至0-25MPa -0.1-2.4MPa

              ф100、ф150 0-0.1 至0-60MPa 0-25MPa

    Range: Negative pressure 0.1-0；-0.1-0.06 to positive pressure ф60 0-0.1 to
　　       ф100、ф150 0-0.1 to 0-60MPa
    工作壓力：靜負荷用至測量上限值的3/4，交變負荷用至測量上限的2/3，短時壓力用至測量上限值。

    Working pressure: Steady: 3/4 of full scale value;Fluctuating: 3/2 of full scale value;Short time: full scale value.
    正常工作環境溫度：-40～70℃ （相對濕度不大于85%）

    Ambient temperature: -40～70℃ (Relative humidity ≤ 85%)
    溫度影響：使用溫度偏離20 ± 5℃時，其誤差變化不大于0.6%/10℃

    Temperature impact: The temperature change is notmore than0.6%/10℃ when the temperature deviates from 20 ± 5℃.
    波登管/ 接頭：磷青銅波登管與黃銅接頭錫焊接.

                 （100、150）4MPa 以上量程4% 銀焊接，高溫型，不銹鋼波登管40% 銀焊接可選。

                  Bourdon tube/socket: Soft soldering for phosphor bronze
                  bourdon tube and brass socket. ф100, ф150 4% Silver soldering over 4Mpa, high temperature type, 40% Silver soldering available for Stainless Steel Bourdon tube.

    儀表機芯：銅合金正裝結構，ф60“C20”型為反裝型Internals: Copper alloy, right-handed machine ф60“C20”
    儀表外殼：ST13 噴黑塑Case: ST13 black plastic plated
    表盤：白色鋁制，黑色刻線Dial: white, aluminium with black calibration line.
    指針：鋁制，黑色Pointer: Aluminium, black.
    表玻璃：普通玻璃Window: common glass
    連接螺紋：60 M14 × 1.5; 100/150 M20 × 1.5 Connection: 60 M14 × 1.5; 100/150 M20 × 1.5
    其他標準可選 Other standard available.

   壓力表量 程 RANGES

    量程范圍規格代碼表 TABLE OF RANGES
    M500 -0.1-0MPa         M040 0.16 MPa     M200 6 MPa
    M510 -0.1-0.06 MPa     M060 0.25 MPa     M220 10 MPa
    M520 -0.1-0.15 MPa     M080 0.4 MPa      M230 16 MPa
    Ｍ 530 -0.1-0.3 MPa    M100 0.6 MPa      M240 25 MPa
    M540 -0.1-0.5 MPa      M120 1 MPa        M270 40 MPa
    M550 -0.1-0.9 MPa      M140 1.6 MPa      M280 60 MPa
    M560 -0.1-1.5 MPa      M160 2.5 MPa      M030 0.1 MPa

    M180 4 MPa             M570 -0.1-2.4MPa

   Y-60壓力表可選擇型號 Type code

    Y-060. AO. 200 (Y-60)     Y-060. AT. 200 (Y-60TQ)     Y-060. AH. 200 (Y-60T)     Y-060. ZO. 200 (Y-60Z)

    Y-060. ZT. 200 (Y-60ZT)   Y-060. AO. C20 (Y-60C)      Y-060. ZO. C20 (Y-60ZC)    Y-060. ZT. C20 (Y-60ZTC)

   Y-100壓力表可選擇型號Type code

    Y-100. AO. 200 (Y-100)    Y-100. AT. 200 (Y-100TQ)    Y-100. AH. 200 (Y-100T)    Y-100. BO. 200 (Y-100Z)

    Y-100. BT. 200 (Y-100ZT)  Y-150. AO. 200 (Y-150)      Y-150. AT. 200 (Y-150TQ)   Y-150. AH. 200 (Y-150T)

    Y-150. BO. 200 (Y-150Z)   Y-150. BT. 200 (Y-150ZT)

    Y-60 Y-100  Y-150壓力真空表如何選型 HOW TO ORDER
    型號代碼特性說明CODE CHARACTERISTICS  MODEL 060/100/150
    基本型號Basic type
    Y 一般壓力表系列General service pressure gaug
    外徑:

      060 Ф 60
      100 Ф 100
      150 Ф 150
    安裝方式:

    AO 徑向直接安裝Bottom mounting
    AT 徑向前邊Bottom mounting with front flange

    200 鐵外殼/ 螺釘上緊Iron case/ Fixed with screw
    C20 （改型結構）鐵外殼/ 螺釘上緊
    量程

    M120 0.06MPa 請參看量程代碼表　Other special screw threads
    壓力表連接螺紋

    M10 M10 × 1
    M14 M14 × 1.5
    M20 M20 × 1.5
    TOO 其它特殊要求的螺紋 Other requests
    備選項

    BDA 1 級精度 Accuracy: 1%
    BEA 1.5 級精度 Accuracy: 1.5%
    GHB 40% 不銹鋼管銀焊接 40% Silver soldering for Stainless Steel tube
    TPB 非標準的度盤 Special dial
