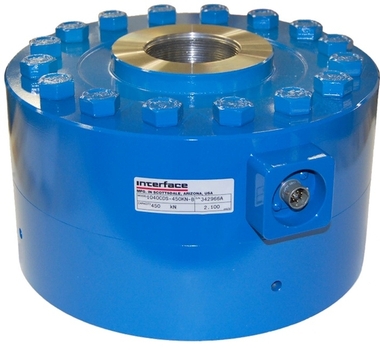

1240-900KN 1240-900KN 1240-900KN
現貨供應美國Interface稱重傳感器所有型號，18688931849、 0755-82794990楊工 QQ：276141119，廠家貨源，現貨供應，價格優惠，中國一級代理供應商、國內最早合作伙伴，價格優惠并給力銷售
詳細請咨詢深圳市德淳自動化科技有限公司
高精度高溫傳感器 高精度傳感器 高精度傳感器
SPECIFICATIONS
MODEL
1240 1244 1250 1260 1280 1290
CAPACITY
U.S. Models (lbf) 200K 270K 400K 600K 1000K 2000K
Metric Models (kN) 900 1200 1800 2700 4500 9000
ACCURACY – (MAX ERROR)
Static Error Band–% FS ±0.07 ±0.07 ±0.12 ±0.12 ±0.15 ±0.20
Nonlinearity–% FS ±0.07 ±0.08 ±0.12 ±0.12 ±0.15 ±0.20
Hysteresis–% FS ±0.07 ±0.08 ±0.12 ±0.12 ±0.15 ±0.20
Nonrepeatability–% RO ±0.01 ±0.02 ±0.02 ±0.02 ±0.02 ±0.02
Creep, in 20 min–% ±0.025 ±0.025 ±0.025 ±0.025 ±0.025 ±0.025
Side Load Sensitivity–% ±0.25 ±0.25 ±0.25 ±0.25 ±0.25 ±0.25
Eccentric Load Sensitivity–%/in ±0.25 ±0.25 ±0.25 ±0.25 ±0.25 ±0.50
TEMPERATURE
Compensated Range–°F 15 to 115 15 to 115 15 to 115 15 to 115 15 to 115 15 to 115
Compensated Range–°C -10 to 45 -10 to 45 -10 to 45 -10 to 45 -10 to 45 -10 to 45
Operating Range–°F -65 to 200 -65 to 200 -65 to 200 -65 to 200 -65 to 200 -65 to 200
Operating Range–°C -55 to 90 -55 to 90 -55 to 90 -55 to 90 -55 to 90 -55 to 90
Effect on Zero–%RO/°F – MAX ±0.0008 ±0.0008 ±0.0008 ±0.0008 ±0.0008 ±0.0008
Effect on Zero–%RO/°C – MAX ±0.0015 ±0.0015 ±0.0015 ±0.0015 ±0.0015 ±0.0015
Effect on Output–%/°F – MAX ±0.0008 ±0.0008 ±0.0008 ±0.0008 ±0.0008 ±0.0008
Effect on Output–%/°C – MAX ±0.0015 ±0.0015 ±0.0015 ±0.0015 ±0.0015 ±0.0015
ELECTRICAL
Rated Output–mV/V (Nominal) 4.0 4.0 4.0 4.0 4.0 4.0**
Excitation Voltage–VDC MAX 20 20 20 20 20 20
Bridge Resistance–Ohm (Nominal) 350 350 350 350 350 350
Zero Balance–% RO ±1.0 ±1.0 ±1.0 ±1.0 ±1.0 ±1.0
Insulation Resistance–Megohm 5000 5000 5000 5000 5000 5000
MECHANICAL
Safe Overload–% CAP ±150 ±150 ±150 ±150 ±150 ±150
Deflection @ RO–inch 0.005 0.006 0.007 0.008 0.008 0.010
Deflection @ RO–mm 0.13 0.15 0.18 0.2 0.2 0.25
Optional Base–P/N (Metric) B105 (M) B116 (M) B121 (M) B122 (M) B123 (M) B125 (M)
Natural Frequency–kHz 4.9 5.0 5.5 5.5 5.5 5.5
Weight–lb 68 70 100 200 450 860
Weight–kg 30.9 31.8 45 90 205 390
Connector PC04E-10-6P PC04E-10-6P PC04E-10-6P PC04E-10-6P PC04E-10-6P PC04E-10-6P
Calibration T & C T & C T & C T & C T & C T & C
美國Interface 1200系列稱重傳感器(法蘭式):
1228-30K(PC04E-10 6腳螺旋式接頭)
1228-30K(10 foot cable)
1238-55K(PC04E-10 6腳螺旋式接頭)
1238-55K(10 foot cable)
1248-110K(PC04E-10 6腳螺旋式接頭)
1248-110K(10 foot cable)
1258-220K(PC04E-10 6腳螺旋式接頭)
1258-220K(10 foot cable)
1268-330K(PC04E-10 6腳螺旋式接頭)
1268-330K(10 foot cable)
1700系列稱重傳感器(法蘭式):
1710ACK-2.2K 1710AF-2.2K 1710AJ-2.2K
1710ACK-4.5K 1710AF-4.5K 1710AJ-4.5K
1720-10KN 1720-10KN 1720-10KN 1720-20KN 1720-20KN 1720-20KN
1730-50KN 1730-50KN 1730-50KN
1500系列稱重傳感器:
1500ASK-25 1500ASK-50
1500ASK-100 1500ASK-200
1500ASK-300
美國Interface 1200帶3線放大系列稱重傳感器:
1210-300 1210-500 1210-1K 1210-2K 1210-5K 1210-10K 1220-25K 1220-50K
1232-100K
1240-900KN 1240-900KN 1240-900KN
