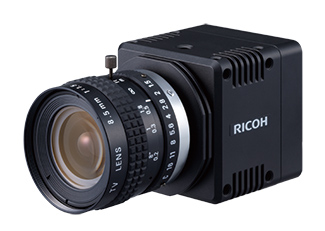

EV-G030B1
Imager |
1/3" interline VGA monochrome progressive CCD (ICX424AL) |
|
|---|---|---|
| Active picture elements | VGA: 648 (H) x 494 (V) | |
| Cell size | 7.4 (H) x 7.4 (V) μm | |
| Vertical frequency (frame rate) |
89.91172 Hz at full resolution 0.72028 to 360.33325 Hz adjustable via the communication (Frame rate depends on the AOI setting) Maximum frame rate (360.33325 Hz) is when vertical resolution AOI setting is 104. |
|
| Horizontal frequency | 47.2028 kHz | |
| Pixel frequency | 36.818175MHz | |
| Minimum scene illumination | 0.58Lux at F1.2, 89.91172Hz | |
| Sync. system | Internal | |
| Video output bat | Digital 8, 10 or 12 bit Raw data | |
| Exposure time |
Preset continuous mode: 10 μseconds to 16,777,216 μseconds Preset trigger mode: 10 μseconds to 16,777,216 μseconds Pulse b mode: 10 μseconds to unlimited |
|
| Gain | 0 to 20.4 dB | |
| Gamma | Gamma 1.0 (Factory default) or uploadable gamma table | |
| Power supply | Input voltage | +10.8 to +26.4 Vdc (power/signal connector or Power Over Ethernet connector) (power supply from power/signal connector automatically prioritized) |
| Consumption | Less than 6.5 W | |
| Dimensions | 50 (W) x 50 (H) x 53.5 (D) mm (NOT including the connector) | |
| Lens mount | C-mount | |
| Weight | Approximaby 170 g | |
| Operational temperature | Minimum | -5℃ |
| Maximum | Camera housing temperature (top plate) should not exceed 70℃. | |
| Storage temperature | Environmental temperature: -30 to 65℃ | |
