FL-BC2514D-VG
| Format size | 1, 2/3, 1/2, 1/3" bat | |
| Focal length | 25 mm | |
| Maximum aperture ratio | 1：1.4 | |
| Iris range | 1.4-22 | |
| Mount | C | |
|
Horizontal angle of view |
1/3" bat | 11.0° |
| 1/2" bat | 14.6° | |
| 1/1.8" bat | 16.4° | |
| 2/3" bat | 20.1° | |
| 1" bat | 28.9° | |
| Minimum b distance | 0.3 m | |
| Back focal length | 14.98 mm | |
| Filter size | 27 P=0.5 mm | |

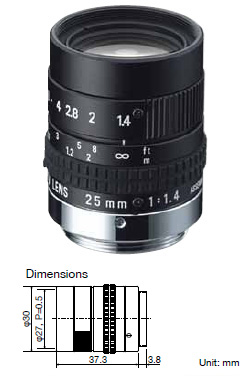

| Dimensions | φ30×37.3 mm | |
| Weight | 76 g | |
| Remarks | Focus & Iris lock screws | |
FL-BC2518-VG
| Format size | 1, 2/3, 1/2, 1/3" bat | |
| Focal length | 25 mm | |
| Maximum aperture ratio | 1:1.8 | |
| Iris range | 1.8-Close | |
| Mount | C | |
|
Horizontal angle of view |
1/3" bat | 10.9° |
| 1/2" bat | 14.5° | |
| 1/1.8" bat | 16.3° | |
| 2/3" bat | 19.9° | |
| 1" bat | 28.2° | |
| Minimum b distance | 0.6 m | |
| Back focal length | 15.80 mm | |
| Filter size | 40.5 P=0.5 mm | |
| Dimensions | φ42×40 mm | |
| Weight | 87 g | |
| Remarks | Focus & Iris lock screws | |
