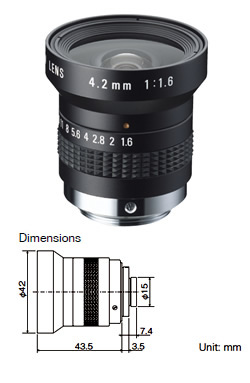

FL-HC0416X-VG
| Format size | 1/2, 1/3" bat | |
| Focal length | 4.2 mm | |
| Maximum aperture ratio | 1:1.6 | |
| Iris range | 1.6-Close | |
| Mount | C | |
|
Horizontal angle of view |
1/3" bat | 64.0° |
| 1/2" bat | 86.4° | |
| 1/1.8" bat | - | |
| 2/3" bat | - | |
| Minimum b distance | 0.2 m | |
| Back focal length | 10.42 mm | |
| Filter size | - | |
| Dimensions | φ42×43.5 mm | |
| Weight | 120 g | |
| Remarks | Iris lock screws, Fixed focus | |
FL-HC0612A-VG
| Format size | 1/2, 1/3" bat | |
| Focal length | 6 mm | |
| Maximum aperture ratio | 1:1.2 | |
| Iris range | 1.2-Close | |
| Mount | C | |
|
Horizontal angle of view |
1/3" bat | 43.4° |
| 1/2" bat | 56.8° | |
| 1/1.8" bat | - | |
| 2/3" bat | - | |
| Minimum b distance | 0.2 m | |
| Back focal length | 14.31 mm | |
| Filter size | 40.5 P=0.5 mm | |
| Dimensions | φ42×46 mm | |
| Weight | 125 g | |
| Remarks | Focus & Iris lock screws | |
