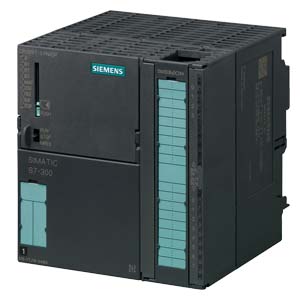

6ES7 315-7TJ10-0AB0

General inbation

Hardware product version

01

Firmware version

CPU: V3.2; integrated technology V4.1.5

Supply voltage

24 V DC

Yes

permissible range, lower limit (DC)

19.2 V

permissible range, upper limit (DC)

28.8 V

external protection for power supply lines (recommendation)

2 A min.

Load voltage L+

• Rated value (DC)

24 V

• Reverse polarity protection

Yes

Digital outputs

• Load voltage L+

• Rated value (DC)

24 V; (2L+)

• Reverse polarity protection

No; (2L+)

Input current

Current consumption (rated value)

1 050 mA

Current consumption (in no-load operation), typ.

230 mA

Inrush current, typ.

6.5 A

I²t

1 A²·s

Power loss

Power loss, typ.

7.5 W

Memory

Type of memory

other

Work memory

• integrated

384 kbyte

• expandable

No

• Size of retentive memory for retentive data blocks

128 kbyte

Load memory

• Plug-in (MMC)

Yes

• Plug-in (MMC), max.

8 Mbyte

• Data management on MMC (after last programming), min.

10 a

Backup

• present

Yes; Guaranteed by MMC (maintenance-free)

• without battery

Yes; Program and data

CPU processing times

for bit operations, typ.

0.05 µs

for word operations, typ.

0.09 µs

for fixed point arithmetic, typ.

0.12 µs

for floating point arithmetic, typ.

0.45 µs

CPU-blocks

Number of blocks (total)

1 024; (DBs, FCs, FBs); the maximum number of loadable blocks can be reduced by the MMC used.

DB

• Number, max.

1 024; Number range: 1 to 16000

• Size, max.

64 kbyte

FB

• Number, max.

1 024; Number range: 0 to 7999

• Size, max.

64 kbyte

FC

• Number, max.

1 024; Number range: 0 to 7999

• Size, max.

64 kbyte

OB

• Debion

see instruction list

• Size, max.

64 kbyte

• Number of free cycle OBs

1; OB 1

• Number of time alarm OBs

1; OB 10

• Number of delay alarm OBs

2; OB 20, 21

• Number of time interrupt OBs

4; OB 32, 33, 34, 35

• Number of process alarm OBs

1; OB 40

• Number of DPV1 alarm OBs

3; OB 55, 56, 57

• Number of isochronous mode OBs

1; OB 61 - isochronous mode is possible either on DP or PROFINET IO (not simultaneously)

• Number of technology synchronous alarm OBs

1; OB 65

• Number of startup OBs

1; OB 100

• Number of asynchronous error OBs

6; OB 80, 82, 83, 85, 86, 87 (OB83 only for PROFINET IO)

• Number of synchronous error OBs

2; OB 121, 122

Nesting depth

• per priority class

16

• additional within an error OB

4

Counters, timers and their retentivity

S7 counter

• Number

256

• Retentivity

• adjustable

Yes

• lower limit

0

• upper limit

255

• preset

Z 0 to Z 7

• Counting range

• adjustable

Yes

• lower limit

0

• upper limit

999

IEC counter

• present

Yes

• Type

SFB

• Number

Unlimited (limited only by RAM capacity)

S7 times

• Number

256

• Retentivity

• adjustable

Yes

• lower limit

0

• upper limit

255

• preset

No retentivity

• Time range

• lower limit

10 ms

• upper limit

9 990 s

IEC timer

• present

Yes

• Type

SFB

• Number

Unlimited (limited only by RAM capacity)

Data areas and their retentivity

retentive data area, total

All, 128 KB max.

Flag

• Number, max.

2 048 byte

• Retentivity available

Yes; MB 0 to MB 2047

• Retentivity preset

MB 0 to MB 15

• Number of clock memories

8; 1 memory byte

Data blocks

• Number, max.

1 024; Number range: 1 to 16000

• Size, max.

64 kbyte

• Retentivity adjustable

Yes; via non-retain property on DB

• Retentivity preset

Yes

Local data

• per priority class, max.

32 768 byte; Max. 2048 bytes per block

Address area

I/O address area

• Inputs

2 048 byte

• Outputs

2 048 byte

• of which distributed

• Inputs

2 048 byte

• Outputs

2 048 byte

Process image

• Inputs

2 048 byte

• Outputs

2 048 byte

• Inputs, adjustable

2 048 byte

• Outputs, adjustable

2 048 byte

• Inputs, default

128 byte

• Outputs, default

128 byte

• Default addresses of the integrated channels

• Digital bs

66

• Digital outputs

66

Subprocess images

• Number of subprocess images, max.

1; With PROFINET IO, the length of the user data is limited to 1600 bytes

Digital channels

• Inputs

16 384

• Outputs

16 384

• Inputs, of which central

256

• Outputs, of which central

256

Analog channels

• Inputs

1 024

• Outputs

1 024

• Inputs, of which central

64

• Outputs, of which central

64

Hardware configuration

Expansion devices, max.

0

Number of DP masters

• integrated

2; 1 DP and 1 DP (drive)

• via CP

2; for DP

Number of operable FMs and CPs (recommended)

• FM

8

• CP, point-to-point

8

• CP, LAN

8

Rack

• Racks, max.

1

• Modules per rack, max.

8

Time of day

Clock

• Hardware clock (real-time clock)

Yes

• battery-backed and synchronizable

Yes

• Deviation per day, max.

10 s; Typ.: 2 s

• Backup time

6 wk; At 40 °C ambient temperature

• Behavior of the clock following POWER-ON

Clock continues running after POWER OFF

• Behavior of the clock following expiry of backup period

Clock continues to run with the time at which the power failure occurred

Operating hours counter

• Number

1

• Number/Number range

0

• Range of values

0 to 2^31 hours (when using SFC 101)

• Granularity

1 hour

• retentive

Yes; Must be restarted at each restart

Clock synchronization

• supported

Yes

• to MPI, master

Yes

• to MPI, slave

Yes

• to DP, master

Yes

• to DP, slave

Yes; Only time-of-day slave

• in AS, master

Yes

• in AS, slave

Yes

• on Ethernet via NTP

Yes; As client

Digital bs

Number of digital bs

4

• of which bs usable for technological functions

4

Input characteristic curve in accordance with IEC 61131, type 1

Yes

Number of simultaneously controllable bs

• horizontal installation

• up to 40 °C, max.

4

• up to 60 °C, max.

4

• vertical installation

• up to 40 °C, max.

4

Input voltage

• Rated value, DC

24 V

• for signal "0"

-3 to +5 V

• for signal "1"

15 to 30 V

Input current

• for signal "1", typ.

7 mA

Input delay (for rated value of b voltage)

• for counter/technological functions

• at "0" to "1", max.

10 µs; Typical

• at "1" to "0", max.

10 µs; Typical

Cable length

• Cable length, shielded, max.

1 000 m

Digital outputs

Number of digital outputs

8

• of which high-speed outputs

8

Functions

For technology functions, e.g. high-speed cam switch signals

Short-circuit protection

Yes

• Response threshold, typ.

1,0 A

Limitation of inductive shutdown voltage to

48 V

Controlling a digital b

No

Switching capacity of the outputs

• Lamp load, max.

5 W

Load resistance range

• lower limit

48 Ω

• upper limit

4 kΩ

Output voltage

• for signal "0", max.

3 V; (2L+)

• for signal "1", min.

Rated voltage -2.5 V

Output current

• for signal "1" rated value

0.5 A

• for signal "1" permissible range for 0 to 60 °C, min.

5 mA

• for signal "1" permissible range for 0 to 60 °C, max.

0.6 A

• for signal "0" residual current, max.

0.3 mA

Parallel switching of 2 outputs

• for uprating

No

• for redundant control of a load

No

Switching frequency

• with resistive load, max.

100 Hz

• with inductive load, max.

0.2 Hz; to IEC 947-5-1, DC-13

• on lamp load, max.

100 Hz

Total current of the outputs (per group)

• horizontal installation

• up to 40 °C, max.

4 A

• up to 60 °C, max.

3 A

• all other mounting bs

• up to 40 °C, max.

4 A

Integrated high-speed cams

• Switching accuracy, (+/-)

70 µs

Cable length

• Cable length, shielded, max.

1 000 m

Analog bs

Number of analog bs

0

Analog outputs

Number of analog outputs

0

Encoder

Connectable encoders

• 2-wire sensor

No

Interfaces

Number of RS 422 interfaces

0

Number of other interfaces

0

1. Interface

Interface type

Integrated RS 485 interface

Physics

RS 485

isolated

Yes

Power supply to interface (15 to 30 V DC), max.

200 mA

Functionality

• MPI

Yes

• DP master

Yes

• DP slave

Yes

• Point-to-point connection

No

MPI

• Transmission rate, max.

12 Mbit/s

• Services

• PG/OP communication

Yes

• Routing

Yes

• Global data communication

Yes

• S7 basic communication

Yes

• S7 communication

Yes

• S7 communication, as client

No; but via CP and loadable FB

• S7 communication, as server

Yes

DP master

• Transmission rate, max.

12 Mbit/s

• Number of DP slaves, max.

124

• Services

• PG/OP communication

Yes

• Routing

Yes

• Global data communication

No

• S7 basic communication

Yes; I blocks only

• S7 communication

Yes

• S7 communication, as client

No

• S7 communication, as server

Yes

• Equidistance mode support

Yes

• Isochronous mode

Yes; OB 61; isochronous mode can only be used alternatively on PROFIBUS DP or PROFINET IO

• SYNC/FREEZE

Yes

• Activation/deactivation of DP slaves

Yes

• Number of DP slaves that can be simultaneously activated/deactivated, max.

8

• Direct data exchange (slave-to-slave communication)

Yes; As subscriber

• DPV1

Yes

• Address area

• Inputs, max.

2 kbyte

• Outputs, max.

2 kbyte

• User data per DP slave

• Inputs, max.

244 byte

• Outputs, max.

244 byte

DP slave

• Transmission rate, max.

12 Mbit/s

• Automatic baud rate search

Yes; only with passive interface

• Address area, max.

32

• User data per address area, max.

32 byte

• Services

• PG/OP communication

Yes

• Routing

Yes; Only with active interface

• Global data communication

No

• S7 basic communication

No

• S7 communication

Yes

• S7 communication, as client

No

• S7 communication, as server

Yes; Connection configured on one side only

• Direct data exchange (slave-to-slave communication)

Yes

• DPV1

No

• Transfer memory

• Inputs

244 byte

• Outputs

244 byte

2. Interface

Interface type

Integrated RS 485 interface

Physics

RS 485

isolated

Yes

Power supply to interface (15 to 30 V DC), max.

200 mA

Functionality

• MPI

No

• DP master

Yes; DP(DRIVE)-Master

• DP slave

No

• Point-to-point connection

No

DP master

• Transmission rate, max.

12 Mbit/s

• Number of DP slaves, max.

64

• Services

• PG/OP communication

No

• Routing

No

• Global data communication

No

• S7 basic communication

No

• S7 communication

No

• Equidistance mode support

Yes

• Isochronous mode

Yes

• SYNC/FREEZE

No

• Activation/deactivation of DP slaves

Yes

• DPV1

No

• Address area

• Inputs, max.

1 024 byte

• Outputs, max.

1 024 byte

• User data per DP slave

• Inputs, max.

244 byte

• Outputs, max.

244 byte

DP slave

• GSD file

http://support.automation.siemens.com in Product Support area

• Transmission rate, max.

12 Mbit/s

3. Interface

Interface type

PROFINET

Physics

Ethernet RJ45

isolated

Yes

integrated switch

Yes

Number of ports

2

automatic detection of transmission rate

Yes; 10/100 Mbit/s

Autonegotiation

Yes

Autocrossing

Yes

Change of IP address at runtime, supported

Yes

Media redundancy

• supported

Yes

• Switchover time on line break, typ.

200 ms; PROFINET MRP

• Number of stations in the ring, max.

50

Functionality

• MPI

No

• DP master

No

• DP slave

No

• PROFINET IO Controller

Yes; Also simultaneously with IO-Device functionality

• PROFINET IO Device

Yes; Also simultaneously with IO Controller functionality

• Open IE communication

Yes; Via TCP/IP, ISO on TCP, and UDP

• Web server

Yes

• Number of HTTP clients

5

PROFINET IO Controller

• Transmission rate, max.

100 Mbit/s

• Number of connectable IO Devices, max.

128

• Number of connectable IO Devices for RT, max.

128

• of which in line, max.

128

• Number of IO Devices with IRT and the option "high perbance", max.

64

• of which in line, max.

64

• Shared device, supported

Yes

• Prioritized startup supported

Yes

• Number of IO Devices, max.

32

• Activation/deactivation of IO Devices

Yes

• Number of IO Devices that can be simultaneously activated/deactivated, max.

8

• IO Devices changing during operation (partner ports), supported

Yes

• Number of IO Devices per tool, max.

8

• Device replacement without swap medium

Yes

• Send cycles

250 µs, 500 µs, 1 ms, 2 ms, 4 ms

• Updating time

250 µs to 512 ms (depending on the operating mode, see Manual "S7-300 CPU 31xC and CPU 31x, Technical Data" for more details)

• Services

• PG/OP communication

Yes

• Routing

Yes

• S7 communication

Yes; With loadable FBs, max. configurable connections: 14, max. number of instances: 32

• Isochronous mode

Yes; OB 61; isochronous mode can only be used alternatively on PROFIBUS DP or PROFINET IO

• Open IE communication

Yes; Via TCP/IP, ISO on TCP, and UDP

• Address area

• Inputs, max.

2 kbyte

• Outputs, max.

2 kbyte

• User data consistency, max.

1 024 byte

PROFINET IO Device

• Services

• PG/OP communication

Yes

• Routing

Yes

• S7 communication

Yes; With loadable FBs, max. configurable connections: 14, max. number of instances: 32

• Isochronous mode

No

• Open IE communication

Yes; Via TCP/IP, ISO on TCP, and UDP

• IRT

Yes

• PROFIenergy, supported

Yes; With SFB 73 / 74 prepared for loadable PROFIenergy standard FB for I-Device

• Shared device

Yes

• Number of IO Controllers with shared device, max.

2

• Transfer memory

• Inputs, max.

1 440 byte; Per IO Controller with shared device

• Outputs, max.

1 440 byte; Per IO Controller with shared device

• Submodules

• Number, max.

64

• User data per submodule, max.

1 024 byte

Open IE communication

• Open IE communication, supported

Yes

• Number of connections, max.

8

• Local port numbers used at the system end

0, 20, 21, 23, 25, 80, 102, 135, 161, 443, 8080, 34962, 34963, 34964, 65532, 65533, 65534, 65535

• Keep-alive function, supported

Yes

Isochronous mode

Isochronous mode (application synchronized up to terminal)

Yes; Via PROFIBUS DP or PROFINET interface

Communication functions

PG/OP communication

Yes

Data record routing

Yes

Global data communication

• supported

Yes

• Number of GD loops, max.

8

• Number of GD packets, max.

8

• Number of GD packets, transmitter, max.

8

• Number of GD packets, receiver, max.

8

• Size of GD packets, max.

22 byte

• Size of GD packet (of which consistent), max.

22 byte

S7 basic communication

• supported

Yes

• User data per job, max.

76 byte

• User data per job (of which consistent), max.

76 byte; 76 bytes (with X_SEND or X_RCV); 64 bytes (with X_PUT or X_GET as server)

S7 communication

• supported

Yes

• as server

Yes

• as client

Yes; via integrated PROFINET interface and loadable FB or via CP and loadable FB

• User data per job, max.

See online help of STEP 7 (shared beters of the SFBs/FBs and of the SFCs/FCs of S7 Communication)

S5 compatible communication

• supported

Yes; via CP and loadable FC

Open IE communication

• TCP/IP

Yes; via integrated PROFINET interface and loadable FBs

• Number of connections, max.

8

• Data length for connection type 01H, max.

1 460 byte

• Data length for connection type 11H, max.

32 768 byte

• Several passive connections per port, supported

Yes

• ISO-on-TCP (RFC1006)

Yes; via integrated PROFINET interface and loadable FBs

• Number of connections, max.

8

• Data length, max.

32 768 byte

• UDP

Yes; via integrated PROFINET interface and loadable FBs

• Number of connections, max.

8

• Data length, max.

1 472 byte

Web server

• supported

Yes

• Number of HTTP clients

5

• User-defined websites

Yes

Number of connections

• overall

16

• usable for PG communication

15

• reserved for PG communication

1

• adjustable for PG communication, min.

1

• adjustable for PG communication, max.

15

• usable for OP communication

15

• reserved for OP communication

1

• adjustable for OP communication, min.

1

• adjustable for OP communication, max.

15

• usable for S7 basic communication

14

• reserved for S7 basic communication

0

• adjustable for S7 basic communication, min.

0

• adjustable for S7 basic communication, max.

14

• usable for S7 communication

14

• reserved for S7 communication

0

• adjustable for S7 communication, min.

0

• adjustable for S7 communication, max.

14

• total number of instances, max.

32

• usable for routing

X1 as MPI: max. 10; X1 as DP master: max. 24; X1 as DP slave (active): max. 14; X2 as PROFINET: 24 max.

S7 message functions

Number of login stations for message functions, max.

16; Depending on the configured connections for PG/OP and S7 basic communication

Process diagnostic messages

Yes

simultaneously active Alarm-S blocks, max.

300

Test commissioning functions

Status block

Yes; Up to 2 simultaneously

Single step

Yes

Number of breakpoints

4; without continuation

Status/control

• Status/control variable

Yes

• Variables

Inputs, outputs, memory bits, DB, times, counters

• Number of variables, max.

30

• of which status variables, max.

30

• of which control variables, max.

14

Forcing

• Forcing

Yes

• Forcing, variables

Inputs, outputs

• Number of variables, max.

10

Diagnostic buffer

• present

Yes

• Number of entries, max.

500

• adjustable

No

• of which powerfail-proof

100; Only the last 100 entries are retained

• Number of entries readable in RUN, max.

499

• adjustable

Yes; From 10 to 499

• preset

10

Service data

• can be read out

Yes

Interrupts/diagnostics/status inbation

Alarms

• Alarms

No

Diagnostic messages

• Diagnostic functions

No

Diagnostics indication LED

• Status indicator digital output (green)

Yes

• Status indicator digital b (green)

Yes

Galvanic isolation

Galvanic isolation digital bs

• between the channels and the backplane bus

Yes

Galvanic isolation digital outputs

• between the channels and the backplane bus

Yes

Permissible potential difference

between different circuits

75 VDC / 60 VAC

Isolation

Isolation tested with

500 V DC

Ambient conditions

Operating temperature

• min.

0 °C

• max.

60 °C

Configuration

Configuration software

• STEP 7

Yes

Programming

• Command set

see instruction list

• Nesting levels

8

• System functions (SFC)

see instruction list

• System function blocks (SFB)

see instruction list

• Programming language

• LAD

Yes

• FBD

Yes

• STL

Yes

• SCL

Yes

• CFC

Yes

• GRAPH

Yes

• HiGraph®

Yes

Know-how protection

• User program protection/password protection

Yes

• Block encryption

Yes; With S7 block Privacy

Dimensions

Width

120 mm

Height

125 mm

Depth

130 mm

Weights

Weight, approx.

640 g
