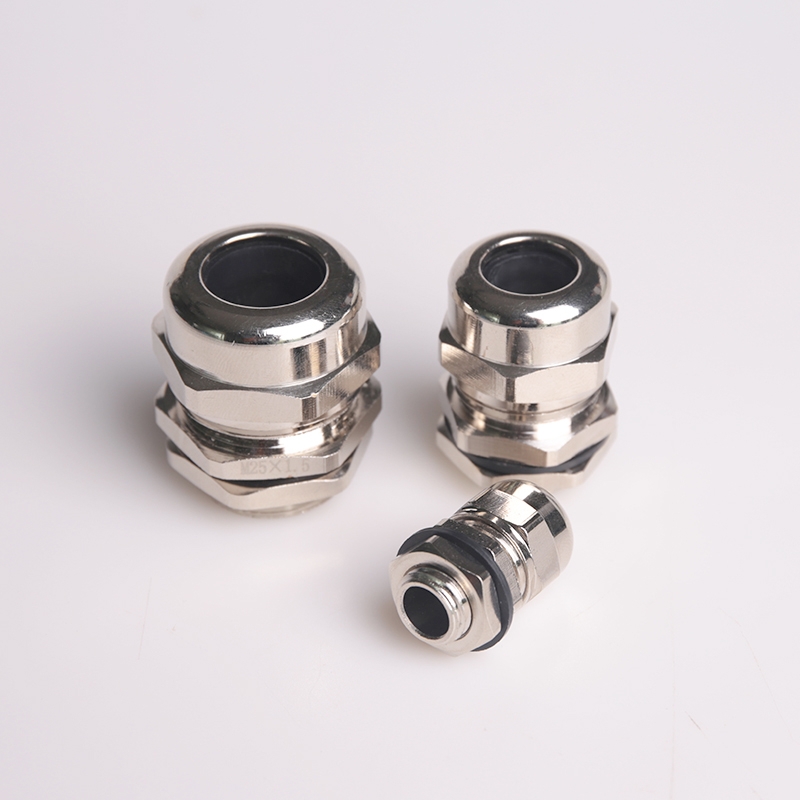

螺牙規格： 公制牙、PG牙、G(PF)、NPT牙
產品材質：A, C, F部分材質為黃銅鍍鎳， E部分采用UL認可的尼龍PA66(防火等級UL94V-2)制成。
鎖緊件和密封圈采用三元乙丙(EPDM)耐候橡膠制成（可定制耐高溫硅膠，EPDM耐候橡膠，耐酸堿氟橡膠。）
防護等級：IP68
工作溫度：靜態-40℃-100℃，短時可至120℃。（可定制-60℃-220℃）
產品特性：特殊的夾緊爪與夾緊圈設計，夾緊電纜范圍大，抗拉力強，可防水，防塵抗鹽，耐弱酸、酒精、油、油脂及一般溶劑。
螺牙規格
編號
電纜范圍?(mm)
螺紋外徑C1(mm)
機板口徑
螺紋長度C2(mm)
扳手徑 A&F(mm)
M8X1.25
YSC-B-MG8-2
1-2.3
8
8-8.3
5.5
11/11
YSC-B-MG8-3
2.3-3.8
8
8-8.3
5.5
11/11
YSC-B-MG8-5
3.5-5
8
8-8.3
5.5
11/11
M10X1.5
YSC-B-MG10-3
2-3.5
10
10-10.3
6
13/13
YSC-B-MG10-5
3.5-5.3
10
10-10.3
6
13/13
YSC-B-MG10-6
4.8-6.3
10
10-10.3
6
13/13
M12X1.5
YSC-B-MG12-5
3-5.3
12
12-12.3
8
17/17
YSC-B-MG12-8
4.5-8
12
12-12.3
8
17/17
M16X1.5
YSC-B-MG16-6
4-7
16
16-16.3
9
22/22
YSC-B-MG16-10
6-10
16
16-16.3
9
22/22
M20X1.5
YSC-B-MG20M-8
5-8.8
20
20-20.3
9.5
24/24
YSC-B-MG20M-11
7-12
20
20-20.3
9.5
24/24
YSC-B-MG20-10
6-11
20
20-20.3
9.5
26/26
YSC-B-MG20-13
9-14
20
20-20.3
9.5
26/26
M25X1.5
YSC-B-MG25-16
10-16
25
25-25.4
12
32/32
YSC-B-MG25-18
13-18
25
25-25.4
12
32/32
M32X1.5
YSC-B-MG32-22
15-22
32
32-32.4
12.5
41/41
YSC-B-MG32-25
18-25
32
32-32.4
12.5
41/41
M40X1.5
YSC-B-MG40-25
20-25
40
40-40.4
15
50/50
YSC-B-MG40-30
24-30
40
40-40.4
15
50/50
M50X1.5
YSC-B-MG50-32
26-32
50
50-50.4
15
60/60
YSC-B-MG50-39
30-40
50
50-50.4
15
60/60
M63X1.5
YSC-B-MG63-46
38-46
63
63-63.4
15
73/73
YSC-B-MG63-49
40-50
63
63-63.4
15
73/73
PG7
YSC-B-PG7-5
3-5.3
12.5
12.5-12.8
8
17/17
YSC-B-PG7-8
4.5-8
12.5
12.5-12.8
8
17/17
PG9
YSC-B-PG9-5
3-5.3
15.2
15.2-15.5
8
18/17
YSC-B-PG9-8
4.5-8
15.2
15.2-15.5
8
18/17
PG11
YSC-B-PG11-6
4-7
18.6
18.6-18.9
9
22/22
YSC-B-PG11-10
5-10
18.6
18.6-18.9
9
22/22
PG13.5
YSC-B-PG13.5-8
5-8.8
20.4
20.4-20.7
9.5
24/24
YSC-B-PG13.5-11
7-12
20.4
20.4-20.7
9.5
24/24
PG16
YSC-B-PG16-10
6-11
22.5
22.5-22.8
9.5
26/26
YSC-B-PG16-13
9-14
22.5
22.5-22.8
9.5
26/26
PG21
YSC-B-PG21-16
10-16
28.3
28.3-28.7
12
32/32
YSC-B-PG21-18
13-18
28.3
28.3-28.7
12
32/32
PG29
YSC-B-PG29-22
13-22
37
37-37.4
12.5
41/41
YSC-B-PG29-25
18-25
37
37-37.4
12.5
41/41
PG36
YSC-B-PG36-25
20-25
47
47-47.4
15
50/50
YSC-B-PG36-30
24-30
47
47-47.4
15
50/50
G(PF)1/4"
YSC-B-G1/4-5
3-5.3
13.1
13.1-13.4
8
17/17
YSC-B-G1/4-8
4.5-8
13.1
13.1-13.4
8
17/17
G(PF)3/8"
YSC-B-G3/8-6
4-7
16.6
16.6-16.9
9
22/22
YSC-B-G3/8-10
6-10
16.6
16.6-16.9
9
22/22
G(PF)1/2"
YSC-B-G1/2-10
6-11
20.9
20.9-21.2
9.5
26/26
YSC-B-G1/2-13
9-14
20.9
20.9-21.2
9.5
26/26
G(PF)3/4"
YSC-B-G3/4-16
10-16
26.4
26.4-26.8
12
32/32
YSC-B-G3/4-18
13-18
26.4
26.4-26.8
12
32/32
G(PF)1"
YSC-B-G1-22
15-22
33.2
33.2-33.6
12.5
41/41
YSC-B-G1-25
18-25
33.2
33.2-33.6
12.5
41/41
G(PF)1 1/4"
YSC-B-G1 1/4-25
20-25
41.9
41.9-42.3
15
50/50
YSC-B-G1 1/4-30
24-31
41.9
41.9-42.3
15
50/50
G(PF)1 1/2"
YSC-B-G1 1/2-32
26-32
48
48-48.4
15
50/50
YSC-B-G1 1/2-39
31-41
48
48-48.4
15
50/50
G(PF) 2"
YSC-B-G2-46
38-46
60
60-60.4
15
60/60
YSC-B-G2-51
41-50
60
60-60.4
15
60/60
NPT3/8"
YSC-B-NPT3/8-6
4-7
17.1
9
22
YSC-B-NPT3/8-10
6-10
17.1
9
22
NPT1/2"
YSC-B-NPT1/2-10
6-11
21.3
9.5
26
YSC-B-NPT1/2-13
9-14
21.3
9.5
26
NPT3/4"
YSC-B-NPT3/4-16
10-16
26.6
12
32
YSC-B-NPT3/4-18
13-18
26.6
12
32
NPT1"
YSC-B-NPT1-22
15-22
33.5
12.5
41
YSC-B-NPT1-25
18-25
33.5
12.5
41
NPT1 1/4"
YSC-B-NPT1 1/4-25
20-25
42.2
15
50
YSC-B-NPT1 1/4-30
24-31
42.2
15
50
NPT1 1/2
YSC-B-NPT1 1/2-32
26-32
48
15
60
YSC-B-NPT1 1/2-39
31-41
48
15
60
NPT2
YSC-B-NPT2-45
35-45
60
15
70
NPT2
YSC-B-NPT2-51
41-50
60
15
70
