螺牙規格： 公制牙、PG牙、G（PF) 、NPT牙
產品材質：A, C, F采用UL認可的尼龍PA66(防火等級UL94V-2)制成。（可定制UL認可的V-0 防火等級的尼龍?jiān)希?/span>B, D采用三元乙丙（EPDM)耐候橡膠制成。（可定制耐寒，耐高溫，耐強酸堿，耐化學與抗腐蝕橡膠。）
防護等級：IP68-10
工作溫度：靜態-40℃-100℃，短時可至120℃；動態 -20℃-80℃，短時可至100℃.

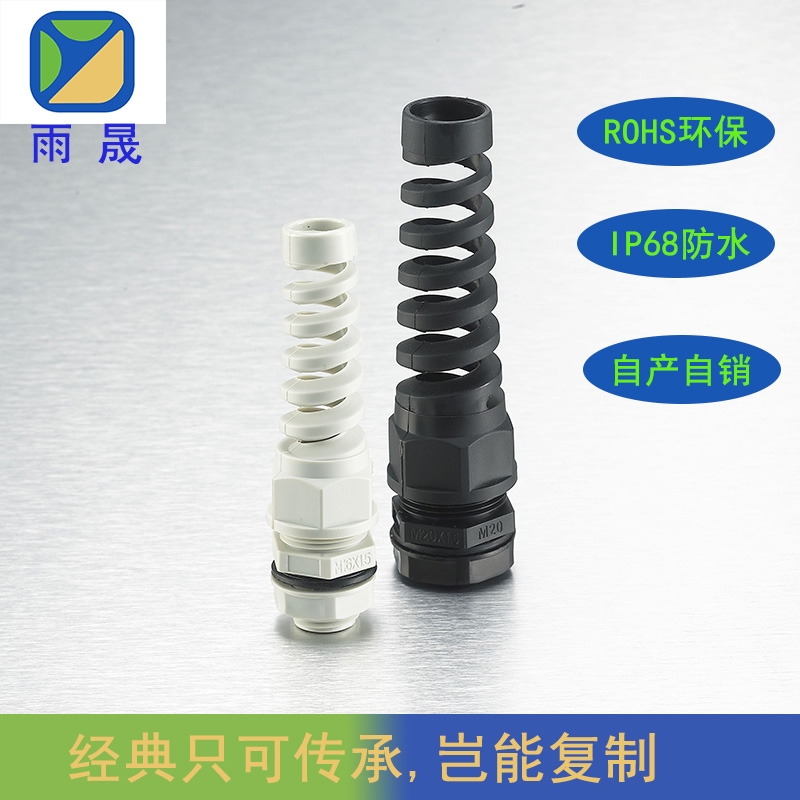

產品特性：特殊的夾緊爪與夾緊圈設計，夾緊電纜范圍大，抗拉力強，可防水，防塵抗鹽，耐弱酸、酒精、油、油脂及一般溶劑。
顏色種類：黑色、灰色。其它顏色可定做
|
螺牙規格 |
編號 |
電纜范圍?(mm) |
螺紋外徑C1(mm) |
螺紋長度C2(mm) |
扳手徑 A&F(mm) |
包裝(PCS) |
|
M12X1.5 |
YSC-BP-MGB12S-6 |
2-6 |
12 |
8.5 |
18/15 |
50 |
|
YSC-BP-MGB12SL-6 |
2-6 |
12 |
15 |
18/15 |
50 |
|
|
YSC-BP-MGB12-5 |
2-5 |
12 |
8.5 |
18/19 |
50 |
|
|
YSC-BP-MGB12-7 |
3-7 |
12 |
8.5 |
18/19 |
50 |
|
|
YSC-BP-MGB12L-5 |
2-5 |
12 |
15 |
18/19 |
50 |
|
|
YSC-BP-MGB12L-7 |
3-7 |
12 |
15 |
18/19 |
50 |
|
|
M16X1.5 |
YSC-BP-MGB16S-8 |
4-8 |
16 |
10 |
22/19 |
50 |
|
YSC-BP-MGB16SL-8 |
4-8 |
16 |
15 |
22/19 |
50 |
|
|
YSC-BP-MGB16-7 |
3-7 |
16 |
10 |
22/22 |
50 |
|
|
YSC-BP-MGB16-10 |
5-10 |
16 |
10 |
22/22 |
50 |
|
|
YSC-BP-MGB16L-7 |
3-7 |
16 |
15 |
22/22 |
50 |
|
|
YSC-BP-MGB16L-10 |
5-10 |
16 |
15 |
22/22 |
50 |
|
|
M18X1.5 |
YSC-BP-MGB18-7 |
3-7 |
18 |
10 |
24/22 |
50 |
|
YSC-BP-MGB18-10 |
5-10 |
18 |
10 |
24/22 |
50 |
|
|
YSC-BP-MGB18L-7 |
3-7 |
18 |
15 |
24/22 |
50 |
|
|
YSC-BP-MGB18L-10 |
5-10 |
18 |
15 |
24/22 |
50 |
|
|
M20X1.5 |
YSC-BP-MGB20M-7 |
3-7 |
20 |
10 |
27/22 |
50 |
|
YSC-BP-MGB20M-10 |
5-10 |
20 |
10 |
27/22 |
50 |
|
|
YSC-BP-MGB20S-9 |
5-9 |
20 |
10 |
27/24 |
50 |
|
|
YSC-BP-MGB20S-12.5 |
6-12.5 |
20 |
10 |
27/24 |
50 |
|
|
YSC-BP-MGB20SL-9 |
5-9 |
20 |
15 |
27/24 |
50 |
|
|
YSC-BP-MGB20SL-12.5 |
6-12.5 |
20 |
15 |
27/24 |
50 |
|
|
YSC-BP-MGB20-11 |
5-11 |
20 |
11 |
27/27 |
20 |
|
|
YSC-BP-MGB20-13.5 |
9-14 |
20 |
11 |
27/27 |
20 |
|
|
YSC-BP-MGB20L-11 |
5-11 |
20 |
15 |
27/27 |
20 |
|
|
YSC-BP-MGB20L-13.5 |
9-14 |
20 |
15 |
27/27 |
20 |
|
|
M22X1.5 |
YSC-BP-MGB22-11 |
6-11 |
22 |
11 |
30/27 |
20 |
|
YSC-BP-MGB22-13.5 |
9-14 |
22 |
11 |
30/27 |
20 |
|
|
M25X1.5 |
YSC-BP-MGB25S-11 |
5-11 |
25 |
11.6 |
33/27 |
20 |
|
YSC-BP-MGB25S-14 |
9-14 |
25 |
11.6 |
33/27 |
20 |
|
|
YSC-BP-MGB25-16 |
8-16 |
25 |
11.6 |
33/33 |
20 |
|
|
YSC-BP-MGB25-18 |
10-18 |
25 |
11.6 |
33/33 |
20 |
|
|
YSC-BP-MGB25L-16 |
8-16 |
25 |
15 |
33/33 |
20 |
|
|
YSC-BP-MGB25L-18 |
10-18 |
25 |
15 |
33/33 |
20 |
|
|
M32X1.5 |
YSC-BP-MGB32-17.5 |
13-17.5 |
32 |
15 |
41/42 |
10 |
|
YSC-BP-MGB32-22 |
16-22 |
32 |
15 |
41/42 |
10 |
|
|
YSC-BP-MGB32-25 |
18-25 |
32 |
15 |
41/42 |
10 |
|
|
PG7 |
YSC-BP-PGB7S-6 |
3-6.5 |
12.5 |
8 |
17/15 |
50 |
|
YSC-BP-PGB7-5 |
3-5.5 |
12.5 |
8 |
17/19 |
50 |
|
|
YSC-BP-PGB7-7 |
4-8 |
12.5 |
8 |
17/19 |
50 |
|
|
PG9 |
YSC-BP-PGB9-5.5 |
3-5.5 |
15.2 |
8.2 |
22/19 |
50 |
|
YSC-BP-PGB9-7.5 |
3-7.5 |
15.2 |
8.2 |
22/19 |
50 |
|
|
PG11 |
YSC-BP-PGB11-7 |
3-7 |
18.6 |
10 |
24/22 |
50 |
|
YSC-BP-PGB11-10 |
4-10 |
18.6 |
10 |
24/22 |
50 |
|
|
PG13.5 |
YSC-BP-PGB13.5-9 |
4-9 |
20.4 |
10 |
27/24 |
50 |
|
YSC-BP-PGB13.5-12.5 |
6-12.5 |
20.4 |
10 |
27/24 |
50 |
|
|
PG16 |
YSC-BP-PGB16-11 |
5-11 |
22.5 |
10.8 |
30/27 |
50 |
|
YSC-BP-PGB16-14 |
9-14 |
22.5 |
10.8 |
30/27 |
50 |
|
|
PG19 |
YSC-BP-PGB19-11 |
5-11 |
24 |
11 |
30/27 |
50 |
|
YSC-BP-PGB19-14 |
9-14 |
24 |
11 |
30/27 |
50 |
|
|
PG21 |
YSC-BP-PGB21-15.5 |
8-15.5 |
28.3 |
12 |
36/33 |
50 |
|
YSC-BP-PGB21-17.5 |
12.5-18 |
28.3 |
12 |
36/33 |
50 |
|
|
G(PF)1/4" |
YSC-BP-GB1/4-5 |
3-5.5 |
13.157 |
8.5 |
19/19 |
50 |
|
YSC-BP-GB1/4-8 |
4-8 |
13.157 |
8.5 |
19/19 |
50 |
|
|
G(PF)3/8" |
YSC-BP-GB3/8-7 |
3-7 |
16.662 |
10 |
22/22 |
50 |
|
YSC-BP-GB3/8-10 |
4-10 |
16.662 |
10 |
22/22 |
50 |
|
|
G(PF)1/2" |
YSC-BP-GB1/2-9 |
4-9 |
20.955 |
10 |
27/24 |
50 |
|
YSC-BP-GB1/2-12.5 |
6-12.5 |
20.955 |
10 |
27/24 |
50 |
|
|
G(PF)3/4" |
YSC-BP-GB3/4-16 |
8-16 |
26.441 |
12 |
33/27 |
20 |
|
YSC-BP-GB3/4-18 |
10-18 |
26.441 |
12 |
33/27 |
20 |
|
|
G(PF)1” |
YSC-BP-GB1-17.5 |
13-17.5 |
33.249 |
15 |
41/42 |
10 |
|
YSC-BP-GB1-22 |
16-22 |
33.249 |
15 |
41/42 |
10 |
|
|
YSC-BP-GB1-25 |
18-25 |
33.249 |
15 |
41/42 |
10 |
|
|
NPT3/8" |
YSC-BP-NPTB3/8-7 |
3-7 |
16.662 |
10 |
22 |
50 |
|
YSC-BP-NPTB3/8-10 |
4-10 |
16.662 |
10 |
22 |
50 |
|
|
NPT1/2" |
YSC-BP-NPTB1/2-9 |
5-9 |
20.955 |
10 |
24 |
50 |
|
YSC-BP-NPTB1/2-13 |
7-13 |
20.955 |
10 |
24 |
50 |
|
|
NPT3/4" |
YSC-BP-NPTB3/4-16 |
8-16 |
26.441 |
15 |
33 |
20 |
|
YSC-BP-NPTB3/4-18 |
10-18 |
26.441 |
15 |
33 |
20 |
|
|
NPT1” |
YSC-BP-NPTB1-17.5 |
13-17.5 |
33.249 |
15 |
42 |
10 |
|
YSC-BP-NPTB1-22 |
16-22 |
33.249 |
15 |
42 |
10 |
|
|
YSC-BP-NPTB1-25 |
18-25 |
33.249 |
15 |
42 |
10 |
