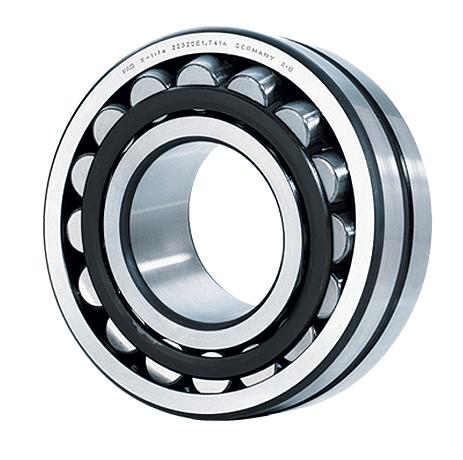

調心滾子軸承具有兩列滾子，主要承受徑向載荷，同時也能承受任一方向的軸向載荷。有高的徑向載荷能力，特別適用于重載或振動載荷下工作，但不能承受純軸向載荷。該類軸承外圈滾道是球面形，故其調性能良好，能補償同軸度誤差。
軸承型號 |
新型號 |
舊型號 |
內徑 |
外徑 |
厚度 |
類別 |
重量 |
23022 |
3003122 |
110 |
170 |
45 |
調心滾子軸承 |
4.22KG |
|
23022C |
3053122 |
110 |
170 |
45 |
調心滾子軸承 |
3.75KG |
|
23022K |
3113122 |
110 |
170 |
45 |
調心滾子軸承 |
4.1KG |
|
23022CK |
3153122 |
110 |
170 |
45 |
調心滾子軸承 |
3.75KG |
|
23024 |
3003124 |
120 |
180 |
46 |
調心滾子軸承 |
4.29KG |
|
23024C |
3053124 |
120 |
180 |
46 |
調心滾子軸承 |
3.98KG |
|
23024K |
3113124 |
120 |
180 |
46 |
調心滾子軸承 |
4.29KG |
|
2302CK |
3153124 |
120 |
180 |
46 |
調心滾子軸承 |
5.4KG |
|
24024C |
4053124 |
120 |
180 |
60 |
調心滾子軸承 |
5.4KG |
|
23026 |
3003126 |
130 |
200 |
52 |
調心滾子軸承 |
6.64KG |
|
23026C |
3053126 |
130 |
200 |
52 |
調心滾子軸承 |
5.78KG |
|
2306K |
3113126 |
130 |
200 |
6.64 |
調心滾子軸承 |
6.64KG |
|
23026CK |
3153126 |
130 |
200 |
52 |
調心滾子軸承 |
5.78KG |
|
24026K |
3113126 |
130 |
200 |
52 |
調心滾子軸承 |
6.64KG |
|
23026CK |
3153126 |
130 |
200 |
52 |
調心滾子軸承 |
5.78KG |
|
24026C |
4053126 |
130 |
200 |
69 |
調心滾子軸承 |
7.95KG |
|
23028 |
3003128 |
140 |
210 |
53 |
調心滾子軸承 |
6.8KG |
|
23028C |
3053128 |
140 |
210 |
53 |
調心滾子軸承 |
6.18KG |
|
230285K |
3113128 |
140 |
210 |
53 |
調心滾子軸承 |
KG |
|
23028CK |
3153128 |
140 |
210 |
53 |
調心滾子軸承 |
KG |
|
24028C |
4053128 |
140 |
210 |
69 |
調心滾子軸承 |
8.09KG |
|
24028CK/30 |
4453128 |
140 |
210 |
69 |
調心滾子軸承 |
KG |
|
23030 |
3003130 |
150 |
225 |
56 |
調心滾子軸承 |
8.91KG |
|
23030/W33 |
3003130Y |
150 |
225 |
56 |
調心滾子軸承 |
8.85KG |
|
23030C |
3053130 |
150 |
225 |
56 |
調心滾子軸承 |
KG |
|
23030K |
3113130 |
150 |
225 |
56 |
調心滾子軸承 |
8.66KG |
|
23030CK |
3153130 |
150 |
225 |
56 |
調心滾子軸承 |
KG |
|
24030CK |
4053130 |
150 |
225 |
76 |
調心滾子軸承 |
9.45KG |
|
23032 |
3003122 |
160 |
240 |
60 |
調心滾子軸承 |
13.5KG |
|
23032C |
3053122 |
160 |
240 |
60 |
調心滾子軸承 |
9.7KG |
|
23032/W33 |
3003132Y |
160 |
240 |
60 |
調心滾子軸承 |
13.4KG |
|
23032K |
3113132 |
160 |
240 |
60 |
調心滾子軸承 |
KG |
|
24032CA |
4053132 |
160 |
240 |
80 |
調心滾子軸承 |
12.9KG |
|
24032CAK |
4153132 |
160 |
240 |
80 |
調心滾子軸承 |
13KG |
|
24032CAK30 |
4453132 |
160 |
240 |
80 |
調心滾子軸承 |
KG |
|
23034 |
3003134 |
170 |
260 |
67 |
調心滾子軸承 |
14.7KG |
|
23034C |
3053134 |
170 |
260 |
67 |
調心滾子軸承 |
13KG |
|
23034K |
3113134 |
170 |
260 |
67 |
調心滾子軸承 |
14.3KG |
|
23034CK |
3153134 |
170 |
260 |
67 |
調心滾子軸承 |
13KG |
|
24034C |
405314 |
170 |
260 |
90 |
調心滾子軸承 |
16.7KG |
|
24034K |
415314 |
170 |
260 |
90 |
調心滾子軸承 |
16.7KG |
|
24034C/W33 |
405314K |
170 |
260 |
90 |
調心滾子軸承 |
KG |
|
23036 |
3003136 |
180 |
280 |
74 |
調心滾子軸承 |
19.5KG |
|
23036/W33 |
3003136Y |
180 |
280 |
74 |
調心滾子軸承 |
19.3KG |
|
23036K |
3113136 |
180 |
280 |
74 |
調心滾子軸承 |
19.5KG |
|
23036CK |
3153136 |
180 |
280 |
74 |
調心滾子軸承 |
17KG |
|
24036 |
4003136 |
180 |
280 |
100 |
調心滾子軸承 |
22.5KG |
|
24036/W33 |
4003136Y |
180 |
280 |
100 |
調心滾子軸承 |
22.3KG |
|
24036CA |
4053136 |
180 |
280 |
100 |
調心滾子軸承 |
22.5KG |
|
24036CA/W33 |
4053136Y |
180 |
280 |
100 |
調心滾子軸承 |
22.8KG |
