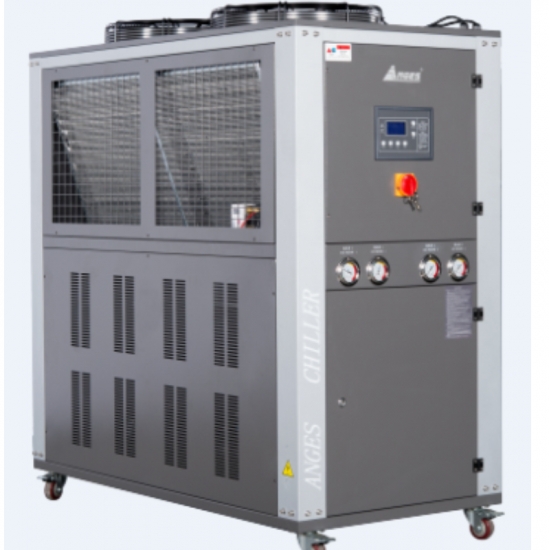

item no.:
HBC-5lead time:
30 daysproduct orgin:
Chinabrand:
Angesshipping port:
shenzhenpayment:
FOB/CIF/CFRcolor:
yellow+grey
Specification
|
Model Item |
HBC-5 |
|
|
nominal cooling capacity |
kcal/h |
12212 |
|
kw |
14.2 |
|
|
b power |
kw |
5.45 |
|
power supply |
3PH 380V 50HZ |
|
|
refrigerant |
type |
R134A/R407C/R410A |
|
type of control |
capillary |
|
|
compressor |
type |
hermetic scroll type |
|
power(kw) |
4.32 |
|
|
condenser |
type |
finned copper tube+low noise outer fan |
|
power(kw) |
0.38 |
|
|
cooling air flow(m3/h) |
5000 |
|
|
evaporator |
type |
shell and tube+water tank |
|
chilled fluid flow(m3/h) |
2.45 |
|
|
volume(L) |
30 |
|
|
inlet and outlet pipe diameter(inch) |
1 |
|
|
pump |
power(kw) |
0.75 |
|
lift(m) |
20 |
|
|
safety protection |
compressor overheating protection, over-current protection, high and low pressure,over-temperature protection, flow switch, protection,phase sequence or missing phase protection, exhaust overheating protection |
|
|
weight |
kg |
175 |
|
dimension |
mm |
1140*560*1250 |
Note: 1.Nominal cooling capacity is according to:
Inlet chilled fluid temperature: 17℃
Outlet chilled fluid temperature: 12℃
Inlet cooling air temperature: 30℃
Outlet cooling air temperature: 35℃
2. Working Range:
The temperature range of chilled fluid is from 5℃ to 35℃;
Temperature difference between inlet and outlet chilled fluid is from 3℃ to 8℃.
It is better to run the chiller while the ambient temperature at or below 35℃.
We reserve the right to modify the above dimensions or beters without further notice.
