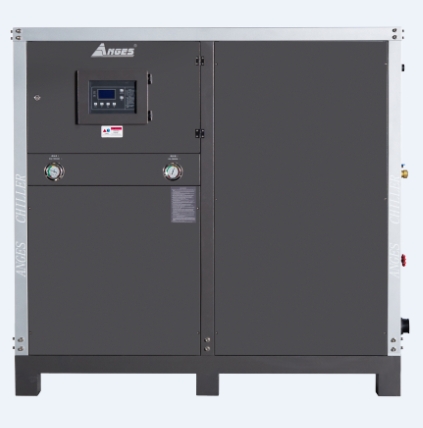

Laser Chiller 5 Ton Small Water Chiller Units AL-5W
Laser industry, arised in the late 20th century, is the most popular processing means. The quality of the cooling system plays a key part in the laser machine operation.ANGES Laser chiller, is a special unit, which is designed according to the features and demands of laser market equipments.
目前，國內從事激光打標機、激光雕刻機、激光焊接機、激光噴碼機，激光切割機等激光加工設備的研發、生產、加工企業不斷涌現，而冷卻系統的好壞則是整個激光標刻作業中的關鍵一環。安格斯激光冷水機正是基于此因，根據激光標贏刻設備的特點和要求而設計制造的專用冷水機組，是激光行業不可缺少的良伴。產品特性：
●微電腦 PLC 控制系統，可自動控制整機運行，全功能防錯操作系統。
●電氣部分均為國際品牌“施耐德”原廠產品，保證機器工作穩定，壽命長久。
●全鈦管式水箱蒸發器，防止純水在輸送過程中產生固體和其它金屬雜質。
●產品規格多樣，品種齊全，適合于不同功率的激光機上配套使用。 精密數顯溫度控制器，能精確控制水溫于±1℃(±1℃)按鍵式操作 , 無須專業人員均能正常使用 .
●安裝簡便 , 無論冷水機與主機高度是否匹配 , 均可正常開機使用 .
● 靜電噴塑外殼 , 歐化設計 , 美觀大方 , 外表板采用快速拆裝形式 , 方便使用和維護
Laser Chiller 5ton Small Water Chiller Units AL-5W
Specification
Model Item
AL-5W
nominal cooling capacity
kcal/h
12126
kw
14.1
b power
kw
4.93
power supply
3PH 380V 50HZ
refrigerant
type
R22/R134A/R407C/R410A
control b
capillary
compressor
type
hermetic scroll type
4
condenser
type
finned copper tube +low noise outer rotor fan
power(kw)
0.38
cooling air flow(m3/h)
5000
evaporator
type
water tank with S.S coil
chilled water flow(m3/h)
2.43
tank volume(l)
60
inlet and outlet pipe caliber(inth)
1
water pump
power(kw)
0.55
lift(m)
22
safety protection
compressor overheating protection, over-current protection, high and low pressure,over-temperature protection, flow switch, protection,phase sequence or missing phase protection, exhaust overheating protection
weight
kg
210
dimension
mm
1290*560*1250
Note: 1.Nominal cooling capacity calculated according to:
Inlet/outlet cooling fluid temperature:17℃/12℃
Inlet/outlet cooling air temperature:30℃/35℃
2. Working condition:
The temperature range of chilled fluid is from 5℃ to 35℃;
Temperature difference between inlet and outlet chilled fluid is from 3℃ to 8℃.
We reserve the right to modify the above dimensions or beters without further notice.
