| 詳細參數 | |||
|---|---|---|---|
| 產地 | 廣東 | 品牌 | 其它 |
| 操作形式 | 遙控 | 結構形式 | 箱型 |
| 適用范圍 | 機械 | 顏色 | 黃色 |

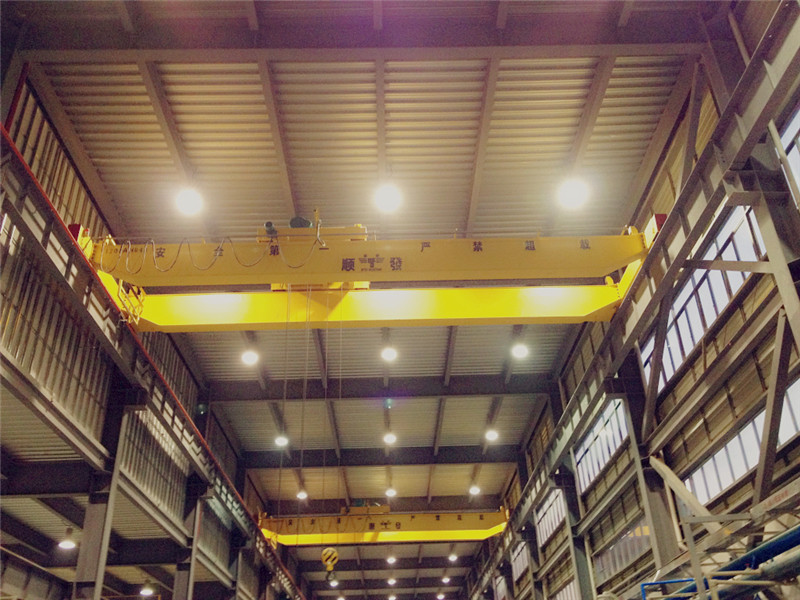

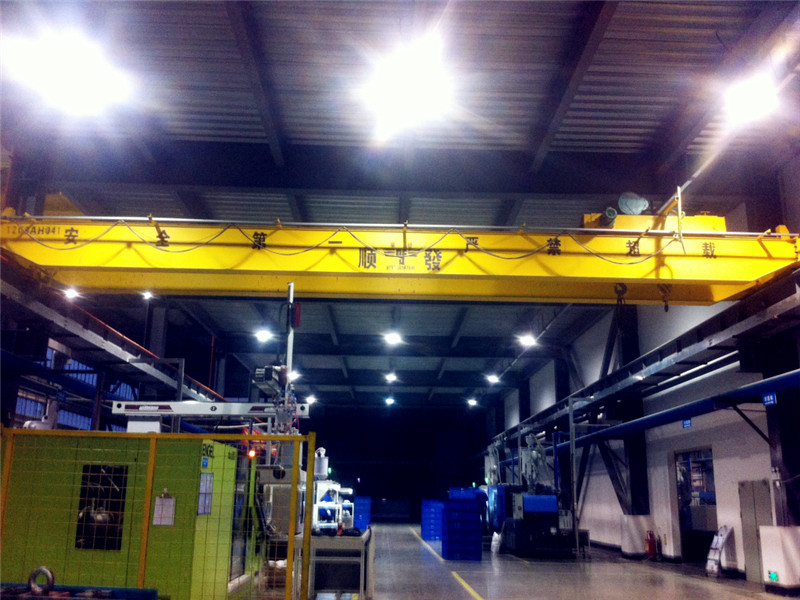

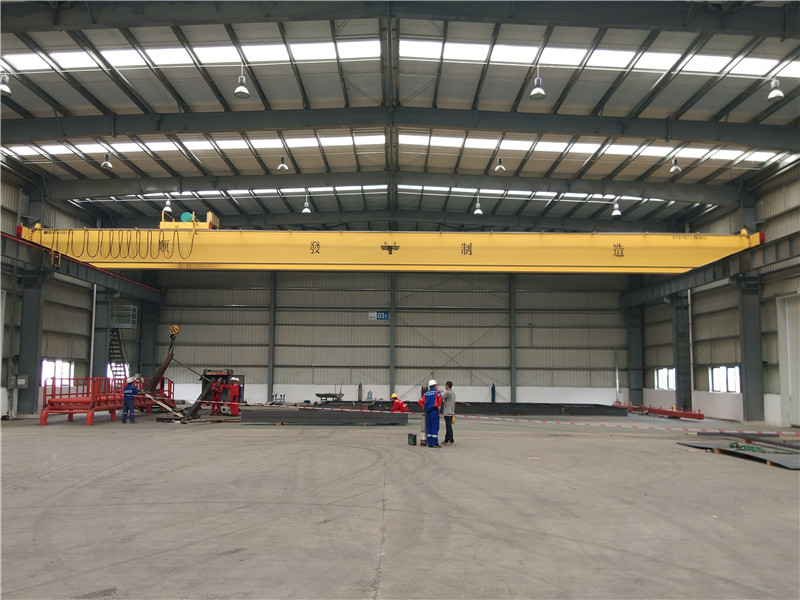

LH型葫蘆雙梁起重機產品簡介：
LH TYPE DOUBLE GIRDER OVERHEAD CRANE Product introduction：
LH型葫蘆雙梁起重機是按標準JB/T3695-1994設計制造的，與CD-I、MD-I等形式的固定式電動葫蘆配套使用，小車在主梁鋪設的軌道上運行的雙主梁結構橋式起重機，其適用起重量為3t-32t，建議適用跨度為5-50米，工作環境溫度在-25—+40℃范圍內。本產品為一般用途起重機，適用于機械加工車間、冶金廠輔助車間、倉庫、料場、電站等的轉運、裝配、檢修和裝卸作業等使用頻度低或額定起重量起吊次數少的場所。
LH type double girder overhead Crane is built according to China Industrial Standard JB/T3695-1994. Its span is 5-50 meter, equipped with CD-I、MD-I electric hoist(capacity is 3-32 tons). Its working temperature is -25℃ to 40℃。This product is a general purpose crane, suitable for machining workshop, auxiliary workshop of bllurgical plant, warehouse, material yard, power station and other transport, assembly, maintenance and loading and unloading operations and other places with low frequency of use or less rated lifting times.
LH型葫蘆雙梁起重機主要性能參數：
LH TYPE DOUBLE GIRDER OVERHEAD CRANE perbance and data：
|
起重量Lifting Capacity |
3t |
5t |
10t |
16t |
20 |
25t |
32t |
|
|
基本參數 Basic Data |
跨度Span |
5m-50m |
||||||
|
起升高度Lifting Height |
6m-30m |
|||||||
|
電動葫蘆型號Electric hoists |
CDI/MDI |
HC |
||||||
|
工作級別Service Class |
A3~A4 |
|||||||
|
操縱方式 Control Mode |
地面手柄+無線遙控 |
|||||||
|
供電電源Power supply |
3AC, 50Hz, 380V |
|||||||
|
推薦軌道Crane Rail |
15kg/m |
18kg/m |
24kg/m |
30kg/m |
38kg/m |
|||
|
速度 Speed |
起升速度Lifting Speed |
8m/min |
7m/min |
3.5m/min |
3m/min |
|||
|
小車速度Trolley Speed |
20m/min-30m/min |
|||||||
|
大車速度Bridge Speed |
30m/min-45m/min |
|||||||
注：起重機有多種規格可選擇，本表數據是基本，僅供用戶參考。需要更詳細的數據和技術方案，請聯系順發起重機公司。
Note：Cranes have many kinds of specifications to choose,This is for user reference only when selecting cranes type.More detailed data and technical solution,please contact SFCRANES.
