| 詳細參數 | |||
|---|---|---|---|
| 品牌 | 其他 | 型號 | SLTB |
| 類型 | 其他 | 規格 | M20 |
| 材質 | 碳鋼 | 連接受力方式 | 其他 |
| 精度等級 | A | 性能等級 | 8.8 |
| 制造標準 | 國標 | 頭型 | 六角 |
| 螺紋公差 | 其他 | 應用范圍 | 機械工業 |
| 表面處理 | 氧化發黑 | 加工定制 | 是 |
| 標準編號 | 其他 | 材料等級 | 其他 |
|
|

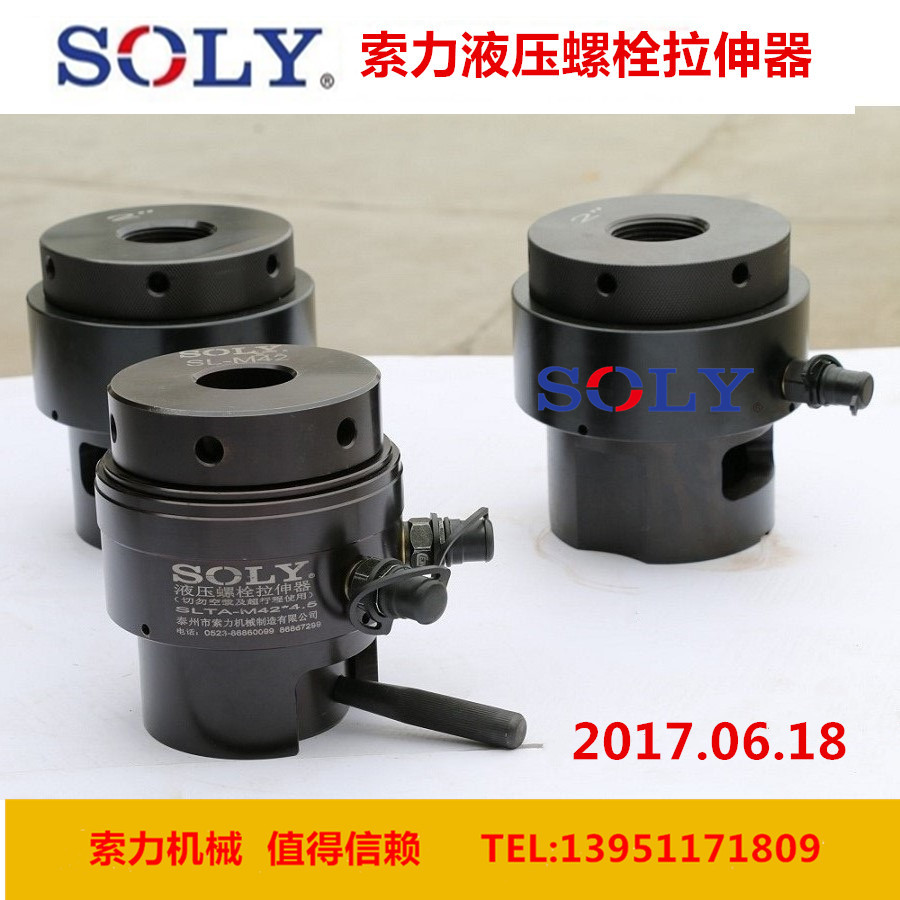

液壓螺栓拉伸器
· 適用螺母：M20-M115
特點 |
技術參數：
|
型號 |
適用螺栓 |
最大工作壓力 |
尺寸 |
重量 (Kg) |
|||||
|
A |
B |
C |
D |
E |
F |
||||
|
SLTB0 |
M20 |
63/150 |
66.0 |
25.0 |
62.0 |
34.5 |
91.5 |
129.0 |
1.3 |
|
M22 |
66.0 |
25.0 |
62.0 |
34.5 |
91.5 |
132.0 |
|||
|
SLTB1 |
M24 |
85.0 |
31.9 |
68.0 |
43.0 |
112.0 |
155.0 |
3.5 |
|
|
SLTB2 |
M24 |
109.0 |
30.0 |
75.0 |
38.0 |
117.0 |
161.0 |
5.5 |
|
|
M27 |
|||||||||
|
M30 |
30.2 |
80.0 |
41.0 |
120.0 |
169.30 |
||||
|
M33 |
36.9 |
88.0 |
44.0 |
123.0 |
175.0 |
||||
|
M36 |
38.3 |
96.0 |
47.0 |
126.0 |
181.0 |
||||
|
SLTB3 |
M33 |
126.0 |
36.9 |
88.0 |
44.0 |
127.0 |
176.0 |
7.0 |
|
|
M36 |
38.3 |
96.0 |
47.0 |
130.0 |
182.0 |
||||
|
M39 |
42.0 |
96.0 |
50.4 |
133.0 |
184.0 |
||||
|
M42 |
41.1 |
108.0 |
53.5 |
136.0 |
195.0 |
||||
|
SLTB4 |
M39 |
147.0 |
42.0 |
113.0 |
50.0 |
134.0 |
195.0 |
10.0 |
|
|
M42 |
45.5 |
113.0 |
53.5 |
137.0 |
202.0 |
||||
|
M45 |
52.1 |
118.0 |
57.0 |
141.0 |
208.0 |
||||
|
M48 |
51.0 |
114.0 |
60.0 |
144.0 |
214.0 |
||||
|
SLTB5 |
M52 |
174.0 |
52.0 |
132.0 |
63.0 |
152.0 |
223.0 |
15.0 |
|
|
M56 |
58.0 |
138.0 |
69.5 |
158.0 |
235.0 |
||||
|
SLTB6 |
M56 |
188.0 |
58.0 |
138.0 |
69.5 |
158.0 |
237.0 |
17.0 |
|
|
M60 |
|||||||||
|
M64 |
63.2 |
153.0 |
76.0 |
164.0 |
250.0 |
||||
|
M68 |
76.0 |
164.0 |
82.0 |
170.0 |
263.0 |
||||
|
SLTB7 |
M72 |
216.0 |
85.0 |
157.0 |
82.0 |
170.0 |
263.0 |
26.0 |
|
|
M76 |
80.0 |
180.0 |
89.0 |
177.0 |
276.0 |
||||
|
SLTB8 |
M76 |
247.0 |
80.0 |
180.0 |
89.0 |
180.0 |
279.0 |
29.5 |
|
|
M80 |
|||||||||
|
M85 |
95.0 |
190.0 |
95.0 |
186.0 |
291.0 |
||||
|
M90 |
102.5 |
205.0 |
101.0 |
192.0 |
304.0 |
||||
|
SLTB9 |
M95 |
273.0 |
93.6 |
200.0 |
107.0 |
199.0 |
318.0 |
38.0 |
|
|
M100 |
103.0 |
210.0 |
114.0 |
216.0 |
345.0 |
||||
|
SLTB10 |
M105 |
308.0 |
112.0 |
225.0 |
120.0 |
216.0 |
353.0 |
49.0 |
|
