| 詳細參數 | |||
|---|---|---|---|
| 品牌 | 臺灣 | 型號 | 19572 |
| 電阻 | 其他 | 精度 | 其他 |
| 分辨率 | 其他 | 環境溫度 | 見配置 |
| 相對濕度 | 見配置 | 加工定制 | 否 |
| 是否進口 | 否 | 外形尺寸 | 其他 |
| 產地 | 臺灣 | ||

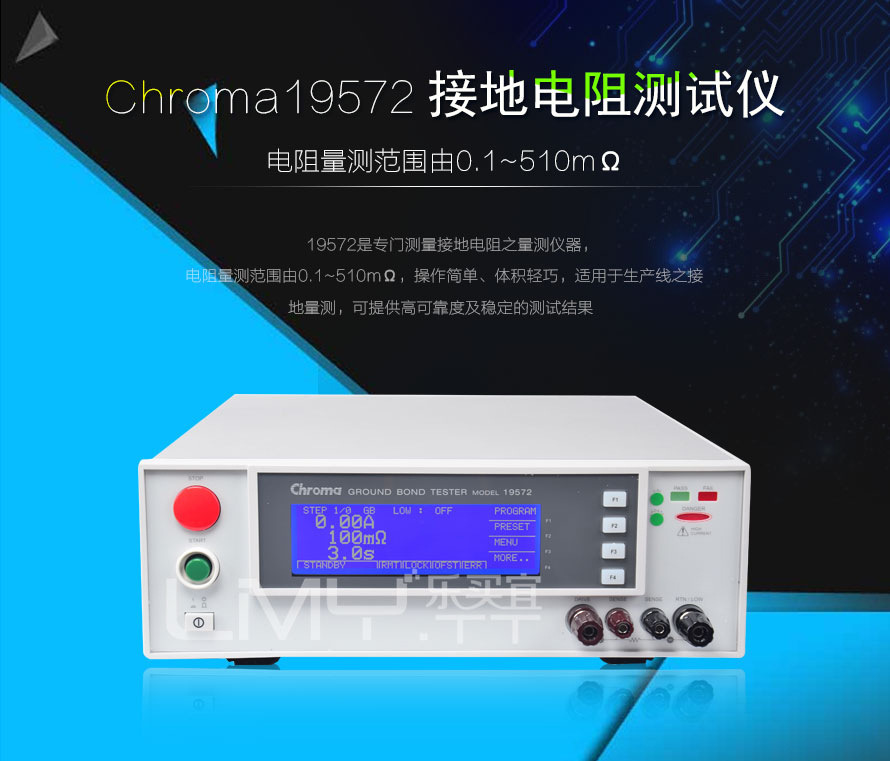

臺灣Chroma 19572 接地電阻測試儀 3-45A
19572是專門測量接地電阻之量測儀器，電阻量測范圍由0.1~510mΩ，操作簡單、體積輕巧，適用于生產線之接地量測，可提供高可靠度及穩定的測試結果，并具內建式電阻補償功能，是一臺經濟、實用的接地測試器。
19572主要特色
臺灣Chroma 19572 主要技術參數
|
規格表 |
|
|
Model |
19572 |
|
Mode |
Ground Bond |
|
Grounding Resistance Test |
|
|
Output Current |
AC : 3 ~ 45A |
|
Load Regulation |
1 % + 0.3 A |
|
Resolution |
3 ~ 30A, 0.01A / 30.1 ~ 45A, 0.1A |
|
Current Accuracy |
±(1.5% of setting + 0.5% of full scale) |
|
Output Frequency |
50Hz / 60Hz |
|
Resistance Range |
0.1 ~ 510 mΩ |
|
Resistance Resolution |
(R display counts/ I display counts)≧0.2, Resolution: 1mΩ(R display counts/ I display counts) < 0.2, Resolution: 0.1mΩ |
|
Resistance Accuracy |
±(2% of reading + 0.5% of full scale) |
|
Offset |
A predetermined value can be subtracted from the measured value and the result of subtrb can be display The result of subtrb can be compared with a Good/NO Good judgment reference value, and the result of comparison can be use for the Good/NO Good judgment |
|
Offset Range |
0 ~ 100mΩ |
|
TestTime |
0.5 ~ 999 sec., continue |
|
Waveb |
Sine wave |
|
GO/NG Judgment |
A no-good judgment is made when a resistance greater than the high limit value Is detected. A no-good judgment is made when the output current is cutout and a no-good Alarm signal is delivered. Ifno abnormal state is detected during the test time, a good judgment is made and a good signal is deliver. |
|
Limit |
Hi-Limit : 0.1 ~ 510mΩ; Low-Limit : off, 0.1mΩ~ Hi-Limit Value, 510mΩmax. |
|
General |
|
|
Operation Environment |
Temperature: 0℃~ 40℃, Humidity :≦80 % RH |
|
Power Consumption |
No load(Ready state) :＜100 W, Withrated load :≦880W max. |
|
Power Requirement |
100V / 120V / 220V (AC±10%) / 240V (AC -10% ~ +5%), 50 / 60 Hz |
|
Dimension (H x W x D) |
105 x 320 x 400 mm / 4.13 x 12.60 x 15.75 inch |
|
Weight |
16 kg / 35.24 lbs |
|
Certification |
UL, CE |
臺灣Chroma 19572 訂購信息
19572:接地連結測試器
A190701:遠程控制盒
A195720: GPIB適配卡
