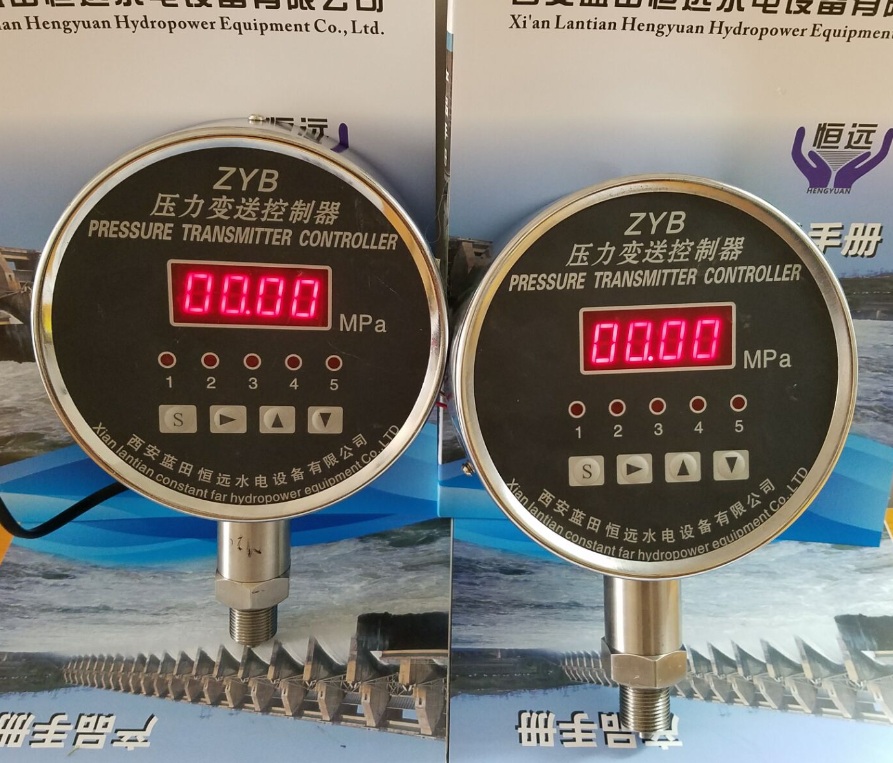

壓力顯控器使用說明書
Operation Instruction of the Pressure Control Monitor
一、特性（Characteristic）:
壓力顯控器 ( 以下簡稱儀表 ) 是在受壓時，借助于彈性元件的位移同時進行壓力指示和控制的新型自控儀表，由于采用了雙重彈性元件分別進行壓力指示和控制，因而其精度大幅度提高，同時具有結構合理，控制精度高、穩定可靠、抗震性優越。觸點容量大，使用安裝方便，可以進行現場調整等優點。
The pressure control monitor (hereafter refers to as the instrument) is a new kind of automatic control instrument that carries out the pressure indication and the control simultaneously with the aid of the displacement of elastic elements under pressure. Since it adopts the dual elastic elements to carry out the pressure indication and the control respectively, its precision rises substantially. At the same time, it has many advantages such as reasonable structure, high control precision, steady reliable, superior anti-seismic performance and large contact capacity, convenient to use and install as well as adjustable on-the-spot.
二、用途（Usage）:
本儀表適用于對無爆炸危險的非結晶和凝固的無腐蝕性介質壓力進行一位或二位式控制。
This instrument is suitable for one or two type control to the amorphous substance with no explosion hazard and the coagulate medium without corrosiveness.
三、主要技術參數（Main technical parameter）:
1. 規格(Specifications)：?jiǎn)挝粸镸Pa(The unit is MPa)
注（Note）：1 MPa = 10.2 Kgf/em2
0-0.4; 0-0.6; 0-1; 0-1.6; 0-2.5; 0-4; 0-6; 0-10; 0-16; 0-25; 0-40; 0-60; 0-100.
2. 壓力指示精度（Pressure indication precision）: 1.5
3. 壓力控制精度（Pressure control precision）: 0.5
4. 壓力控制范圍，壓力指示上限值的5-70%(Pressure control scope: 5-70% of the pressure instruction upper limit )
5. 控制方式(Control mode)：
（一）一位式控制（常閉或常開）A type control (closes or opens frequently)
（二）二位式控制（常閉或常開）Two type control (closes or opens frequently)
6. 壓力差動值(Pressure differential value)：
不大于壓力控制范圍上限值的10%(Not larger than 10% of the upper pressure control scope limit.)
7. 觸點容量 380V x 2A 220V x 3A(Contact capacity: 380V x 2A 220V x 3A)
8. 使用頻率：≤25次/分(Frequency of use: ≤25 times / minute)
9. 使用環境條件：‐40 ― + 60℃相對溫度不大于85%(Operating ambient conditions: ‐40 ― + 60℃.The relative temperature is not bigger than 85%.)
四、結構原理(Structural principle):
儀表由彈性元件，控制機構、調整機構、指示裝置，表殼及接線盒等組成。
其工作原理是：在介質壓力作用下，彈簧管末斷產生位移，當壓力達到所設定的控制值時，推動微動開關產生瞬間開關動作，使控制系統中的電路得以通斷切換，達到自動控制或發出信號的目的。
The instrument is composed of elastic element, control mechanism, adjusting mechanism, indicating device, watch case and wiring box and so on.
Its working principle is: Under the medium pressure, the spring tube terminal produces displacement. When pressure reaches the control value set, the jogging switch is promoted to produce instant switch movement. This makes the electric circuit in control system on-and-off so that the purpose of automatic control or sending out the signal is reached.
五、使用與調整(Use and adjustment):
1. 設定值調整(Setting value adjustment):
（一）將儀表和精密壓力表（可用自身的壓力表）連接在壓力校驗臺上，然后按下圖接通電源：
