burkert6213已停產/替代品burkert6213EV

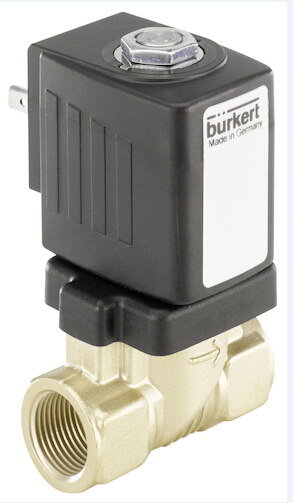

6213 EV 為伺服輔助式S.EV系列電磁閥。通過膜片的彈性耦合打開閥門。其標準型適用于液體。要完全打開閥門，需要一個最小壓差。有一個特殊型（HP00）可以不需要壓差打開閥門，適合于氣體和真空應用。根據不同的應用，可以選擇各種膜片材質。標準供貨的黃銅閥體符合所有歐洲飲用水標準的要求。具有無鉛或抗脫鋅腐蝕黃銅式，適合于其它應用。閥體材質還有不銹鋼式。電磁線圈采用耐化學腐蝕的環氧樹脂封裝。所有線圈都可以帶降功耗電子線路，用于節能。與 DIN EN 17301-803 A 型電纜插頭配套，該閥的安全防護等級為 IP65，不銹鋼閥體式 NEMA 4X。
伺服輔助式隔膜電磁閥，最大通徑 DN 40
彈性耦合膜片，沒有差壓也可以打開閥門
防震線圈
阻尼設計，閥門動作靜音
一體成型的閥體具有較高的表面質量
burkert6213已停產/替代品burkert6213EV通用數據
Technical data Orifi ce Standard DN 10 - 40 mm HP00: DN13-20 Body material Brass acc. to DIN EN 50930-6, stainless steel 1.4408 (316), nickel-plated brass (5µm) Inner part of valve Brass body Stainless steel body Brass, stainless steel and PPS Stainless steel and PPS Seal material NBR, FKM, EPDM Medium NBR FKM EPDM Neutral fl uids, water, hydraulic oil, oil without additives Per-solutions, hot oils with additives Oil and fat-free fl uids and gases Ambient temperature Max. +55 °C Medium temperature NBR FKM EPDM -10 to +80 °C 0 to +90 °C with polyamide coil / 0 - 120 ºC with epoxy coil -30 to +90 °C with polyamide coil -30 to +100 °C with epoxy coil Voltages Standard 024/DC, 024/50, 230/50, 110/50, 120/60 HP00: 24V (50-60Hz), 230V (50-60Hz) Voltage tolerance ±10% Duty cycle 100% continuous rating Electrical connection Tag connector acc. to DIN EN 175301-803 Form A (previously DIN 43650) (see ordering chart for accessories, page 7) Protection class IP 65 with cable plug Installation As required, preferably with actuator upright
