德國寶德 burkert8030 由Bürkert 公司設計的接頭系統，確保了傳感器在所有 DN06 至 DN65 管道中的易安裝性。上海國與是一家具有完善的國外采購團隊，幫助各企業選型產品 德國寶德 burkert8030 帶有葉輪的流量傳感器，適合中性和弱侵蝕性的、不含固體的液體。傳感器由一個緊湊型接頭 (S030) 和一個電子設備模塊 (SE30) 構成，通過一個卡口接頭可以將兩者快速、簡單地相連。傳感器會產生一個與流動速度成正比的脈沖頻率信號，利用一個獨立式的 Bürkert 傳送器/指示器（型號 8025/8032）可以輕易地對該信號進行傳輸和處理。
聯系電話 13764835985 聯系人 周經理

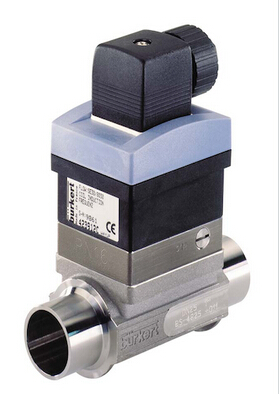

工作QQ 254890876 實圖如下
德國寶德 burkert8030技術參數
Compatibility with fittings S030-HT (see page 5)
Materials
Housing, cover
Cable plug
Wetted parts materials
Fitting, sensor armature
Paddle-wheel / Axis
Bearing / Seal
PPS, glass fibre reinforced
PA
Stainless steel
Stainless steel / Ceramics
Iglidur® / FKM (EPDM on request)
Electrical connection Cable plug EN 175301-803
Connection cable 0.14...1.5 mm2 cross section; max. 50 m length, shielded
(up to 500 m depending on installation conditions)
Complete device data (fitting + electronic module)
Pipe diameter DN06...DN50 (DN65 on request)
Measuring range 0.5...10 m/s
Medium temperature -15...125°C
Fluid pressure max. PN40 (-15...90°C temperature range)
PN25 (90...125°C temperature range)
Viscosity / Pollution 300 cSt. max. / max. 1% (Size of particles 0.5 mm max.)
Measurement error
Teach-In
Standard K-factor
±1% of Reading1) (at the teach flow rate value)
±2.5% of Reading1)
Linearity ±0.5% of F.S.*1)
Repeatability ±0.4% of Reading1)
Environment
Ambient temperature -15...+80°C (operating and storage)
Relative humidity 80%, without condensation
德國寶德 burkert8030電子模塊類型SE30-HT - 擬合型S030-HT
德國寶德 burkert8030配件類型S030-HTTwo versions of the fitting in DN15 and DN20 exist, having different K factors. Only version 2, identified by the “v2”marking, is available from March 2012.The “v2” marking can be found on the side of the DN15 or DN20 fitting in metal
德國寶德 burkert8030
