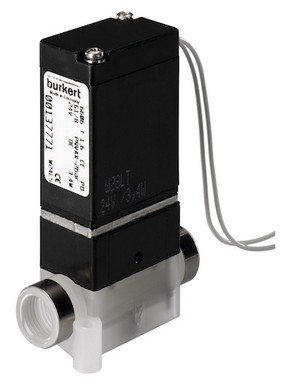

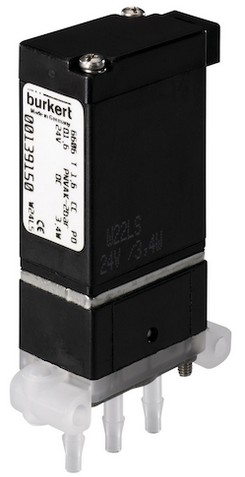

德國寶德6606 上海國與電磁閥產品型號齊全，歡迎咨詢 直動式搖臂電磁閥 6606（二位二通和二位三通）滿足分析技術領域的最高要求。它們具有最小的死角體積和一個無間隙、易于沖洗的內部輪廓。介質只能與外殼材料和 FFKM 密封件相接觸。注入到介質中的熱量控制在最少，因為已通過一塊不銹鋼板將外殼與線圈分離。閥門主要用于分析、醫藥和試驗室技術領域中少量介質的計量、灌注、混合和分配。
Meet stringent chemical resistance requirements
The compact structure, the arrangement pitch of 16 mm, the pressure loss coefficient and flow coefficient (Cv) to 0.058
Flexible design for customer specific applications
Duration high back pressure seal, excellent flushing properties and 100% ON
Cut off the power, turn on the power or general specifications 實圖如下
聯系電話 13764835985 聯系人 周經理 工作QQ 254890876
德國寶德—上海國與
burkert6606塑料電磁閥用于醫療技術數據
孔板：DN 1.5 - 1.6毫米
閥體材質：PEEK，PVDF，ETFE
密封材料：全氟橡膠
媒體：耐中性和腐蝕性液體和氣體;看到布爾克特的耐化學性圖表
低溫的介質：32°F至122°F（0°C至50°C）
環境溫度：最高131°F（+ 55°C）
工作電壓：12和24V / DC;根據要求提供其它電壓
電壓偏差：±10％
功耗：3.4
工作周期：100％連續額定
電氣連接：矩形插頭，型號2505
鏟連接ACC。根據DIN 43650℃，電纜插頭
On Top類型2506
2 FEP飛線，AWG24，500毫米長
圓形連接器，側請求鏟連接
防護等級：IP54帶飛線或電纜插頭
IP40矩形插頭
安裝方式：根據需要，最好用執行器直立burkert6606塑料電磁閥用于醫療訂貨號：00137759、00458096、00458094、00458091、00137764、00139147、00137744、00137745、00137741、00458092、00137779、00458092、00137779、00458107、00458105、
The direct-acting rocker solenoid valves with isolating diaphragm of Type 6606 (2/2- and 3/2–way) are high quality valves for analytical technology. They have minimal dead volume and internal volume with few crevices making them easy to flush out. The fluid only comes into contact with the body material and the FFKM seal. The heat transfer to the medium is minimal. The fluid path is isolated from the coil by a stainless steel plate. The valves are ideal for dosing, filling, mixing and distributing of small quantities of fluid for medical, analytical and laboratory applications.
