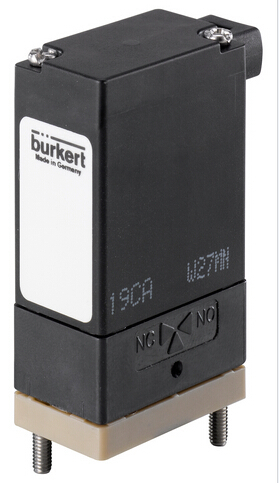

Bürkert 公司特有的 0127 型電磁閥， burkert0127帶隔膜電磁閥價格及安裝說明，burkert0127帶隔膜電磁閥價格根據具體的系列訂貨號來定，上海囯與自動化設備有限公司可以為您做優質的報價，從型號選購到售后服務都可以協助您進行是小型介質分離閥門的開路先鋒，可應用于試驗室、醫藥和分析技術。其搖臂技術，能夠操作驅動裝置與流體之間的隔膜，在今天仍然是一個技術標桿。這種閥門能夠在溫度變化最小的情況下，通過線圈確保精確接通侵蝕性介質的最小體積流量。此外，該產品還非常易于沖洗，其內部空間很小并且?guī)缀鯖]有死角。Such valves can be connected in series with the connection plate, and can be connected to the central line in accordance with your requirements. If you have a need, we can provide a special structure without dead。實圖如下
聯系電話 13764835985
聯系人 周經理 工作QQ 254890876
burkert0127兩位三通搖臂微型電磁閥是原來的直動式搖臂電磁閥由burkert發明的。該閥具有最小內部體積，非常低的死體積，并且易于清除。線圈從主體由一個強大的隔膜分隔開。該類型0127可用于劑量，填充，混合和分發少量的“困難”的介質。burkert0127兩位三通搖臂微型電磁閥尤其適用于實驗室，醫療和分析技術。
burkert0127兩位三通搖臂微型電磁閥訂貨型號展示：
UNF 1/4–28 1/16 0.029 0 – 28 28.0 ETFE cable plug 1054 2.11 upon request 455131M 455404Y
direct acting, UNF 1/4–28 1/16 0.029 0 – 28 28.0 ETFE 2 leads 19 inches 2.11 454691W 455132N 455380B
universal functions, Sub–base 1/16 0.038 0 – 28 28.0 PVDF cable plug 1054 1.86 upon request 455167Z 455421Q
any flow direction Sub–base 1/16 0.038 0 – 28 28.0 PVDF 2 leads 19 inches 1.86 454142Y 455168A 455398H
Tube 1/16 0.038 0 – 28 28.0 PVDF cable plug 1054 2.01 upon request 455151Z upon request
Tube 1/16 0.038 0 – 28 28.0 PVDF 2 leads 19 inches 2.01 455150C 455152S 120685V
NPT 1/8 1/16 0.055 0 – 28 28.0 PVDF cable plug 1054 2.18 455161T 455163V 455410Z
NPT 1/8 1/16 0.055 0 – 28 28.0 PVDF 2 leads 19 inches 2.18 455162U 455164W 455386V
G 1/8 1/16 0.055 0 – 28 28.0 PVDF cable plug 1054 2.18 upon request 457516R upon request
G 1/8 1/16 0.055 0 – 28 28.0 PVDF 2 leads 19 inches 2.18 upon request 457517J 120679N
burkert0127帶隔膜電磁閥危險 - 原理介質。
泄漏的連接，如果不正確就位密封件，如果連接板不均勻或如果連接板的表面質量不足。
▶請確保包括交付密封件正確安裝在閥門。
▶確保連接板均勻。
▶確保連接板的表面質量是足夠的。
→將密封進入閥。
注意！
如果擰緊力矩過大時，該裝置可能會損壞。
▶觀察最大。擰緊螺絲扭矩。
寶德burkert0127技術數據
Orifi ce [mm] DN 0.8 - DN 1.6 (for details see ordering chart)
Body material PEEK, PVDF, ETFE, PPS
Seal material FFKM, FKM, EPDM
Media Resistant to neutral and aggressive liquids and gases
(see Burkert chemical resistance chart)
Media temperature -10 to 55 °C 1)
Ambient temperature max. 55 °C
Service life 10.000.000 (according to laboratory endurance test with FKM
and EPDM) 2)
Internal volumes
with sub-base
with G 1/8 and NPT 1/8
with UNF 1/4
” - 28
with tube spigot
on request
starting at 44 μl
starting at 100 μl
starting at 25 μl
starting at 33 μl
< 10 μl 3)
Port connection Bürkert sub-base (16 x 27 mm), G1/8, NPT1/8,
UNF 1/4“ - 28, tube connection
Electrical connection Cable plug Type 1054
Two FEP-leads 0.2 mm2, length 500 mm
Rectangular cable plug, Type 2505 4)
Operating voltage 12/24 V/DC; 24 V/UC; other voltages on request
Voltage tolerance ±10 %
Power consumption 3.4 W
Duty cycle
Manifold mounting
100 % continuous rating
If media or ambient temperatures are above +40 °C:
intermittent operation 40 % (10 min)
Installation As required, preferably with actuator upright
Protection class IP 54 with fl ying leads and single cable plug
IP 40 with Rectangular plug
Response times
Open
Closing
Measured at valve outlet with air at 2 bar and +20 ºC
According to ISO 12238:2001;
approx. 25 ms (Pressure rise 0 to 10 %)
approx. 25 ms (Pressure drop 100 to 90 %)
