寶德8030帶有葉輪的流量傳感器，適合中性和弱侵蝕性的、不含固體的液體。傳感器由一個緊湊型接頭 (S030) 和一個電子設備模塊 (SE30) 構成，通過一個卡口接頭可以將兩者快速、簡單地相連。由 Bürkert 公司設計的接頭系統，確保了傳感器在所有 DN06 至 DN65 管道中的易安裝性。傳感器會產生一個與流動速度成正比的脈沖頻率信號，利用一個獨立式的 Bürkert 傳送器/指示器（型號 8025/8032）可以輕易地對該信號進行傳輸和處理The HT paddle-wheel flow sensor for continuous flow measurement is especially designed for use in neutral, slightly aggressive, solid free liquids. The
sensor is made up of a compact fitting and an electronic module quickly and easily connected together by a Quarter-Turn. The Bürkert designed stainless

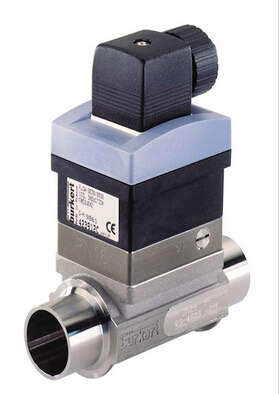

實圖如下
聯系人 周佳樂
聯系電話 13764835985
工作QQ 254890876
上海國與自動化設備有限公司
德國寶德8030 葉輪式流量傳感器
完整的設備數據（擬合+電子模塊）
Pipe diameter 1/4” to 2” (DN 06 to 50) (DN65 on request)
Measuring range 1.6 f/s to 32.8 f/s (0.5 m/s to 10 m/s)
Fluid temperature 5°F up to 257°F (-15°C up to +125°C)
Fluid pressure max. 580 PSI (PN40) (whole temperature range)
Viscosity 300 cSt. max.
Accuracy
Teach-In
Standard K-factor
≤ ± 1% o. FS.* (at 10 m/s)1)
≤ ± (1% o. FS.* + 3% o. Reading)1)
Linearity ≤ ± 0.5% o. FS.* (at 32.8 f/s)1)
Repeatibility ≤ 0.4% o. Reading1)
電氣數據
電源12-36 V DC過濾和調節
消耗電流≤10毫安（空載）
輸出：頻率
三極管
頻率
NPN/ PNP，集電極開路，最大。 700毫安，
NPN輸出：0.2-30 V DC;
PNP輸出：電源電壓
晶體管NPN，集電極開路，
0 ... 250赫茲
環境
Ambient temperature 5°F up to 176°F (-15°C up to +80°C) (operating and storage) Relative humidity ≤ 80%, non condensated
The 8030-HT is made up of a compact fitting and an electronic module quickly and easily connected together by a Quarter-Turn. The Bürkert designed stainless steel fitting system ensures simple installation of the sensors into all stainless steel pipes from DN06 to DN50.
steel fitting system ensures simple installation of the sensors into all stainless steel pipe diameters from 1/4” to 2”. The sensor produces a frequency pulse
signal, proportional to the flow rate, which can easily be transmitted and processed by a Bürkert remote transmitter (Type 8025/8032).
