寶德6626 型為搖擺電磁閥含隔離閥，從液態視角出發，采用了成熟而又可靠的擺動原理。該型通過全新的 Bürkert TwinPower 驅動概念使結構空間急劇縮小，但又保留了功率數據。因此，僅僅 16 mm 寬的供介質分離之用的擺動閥（額定寬度：3.0 mm，抗壓強度：2 bar）與傳統的 22 mm 閥門一樣，擁有相同的功率特征。對此，集成式功率降低裝置降低能耗 75%。加之其它的結構性變更，傳遞進入介質的熱量已降至最低。 鑒于其結構的特殊性，須特別著眼于絕佳的沖洗特性以及極高的可靠性。通過使用高品質材料，6626 型也適用于處理腐蝕性介質。閥門既有兩位兩通樣式，也有兩位三通樣式In the design of the 6626, the main benefi ts lie in its excellent cleanability and a high reliability.By using high performance materials the 6626 suits the handling of aggressive medium perfectly. The valve is available in a 2-way and 3-way version.

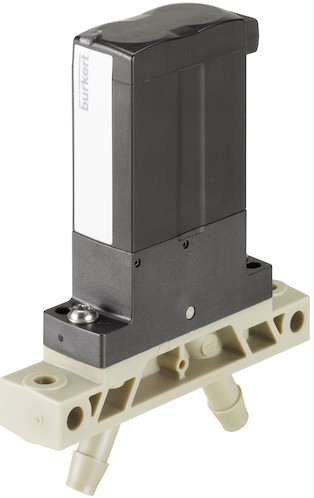

實圖如下
德國寶德電磁閥6626——聯系人—周佳樂經理 聯系電話—13764835985 工作QQ——254890876
德國寶德電磁閥6626
滿足嚴苛的耐化學腐蝕性要求
通過 Bürkert Twinpower 驅動裝置實現超級緊湊的結構（排列間距：16mm）
DN 2.0 (3bar) 和 DN 3.0 (2bar)
集成式 Hit-and-Hold 電子裝置
很高的反壓力密封性，卓越的沖洗特性
德國寶德技術參數
Orifi ce DN 2.0 mm, DN 3.0 mm
Body material PEEK, PPS
Seal material FFKM, FKM, EPDM
Medium Resistant to neutral and aggressive gases and liquids
acc. to our chemical resistance chart
Medium temperature
FFKM
FKM
EPDM DN 2.0
EPDM DN 3.0
+15 °C to +50 °C
-10 °C to +50 °C
-10 °C to +50 °C
+5 °C to +50 °C
Ambient temperature
FFKM
FKM
EPDM DN 2.0
FFKM DN 3.0
+15 °C to +55 °C
-10 °C to +55 °C
-10 °C to +55 °C
+5 °C to +55 °C
Internal volume <470 μl
Port connection Sub-base, UNF, G 1/8, Tube
Electrical connection Flying leads, Rectangular plug
Power supply 24 V1), 12 V1)
Voltage tolerance 24V ±10%2)
12V +10% / -5%2)
Nominal power consumption 13.6W inrush power
3.4W nominal holding power (internal power reduction )
Duty cycle 100% continuous rating
Installation As required
Protection class IP 40
Switching frequency max. 2 Hz3)
Response times3)
opening
closing
Acc. DIN 12238
ca. 10 ms (Pressure rise 0-10%)
ca. 15 ms (Pressure drop 100-90%)
